【我的华为云体验之旅】张小白教你在AI1S云服务器上安装昇腾CANN5.0.4

张辉发表于 2021/12/28 23:10:41 2021/12/28

【摘要】本文介绍了如何在华为云AI X86+Ascend 310服务器上安装CANN5.0.4

华为的昇腾一直在进步。记得张小白写过一篇昇腾环境搭建的博文还是这个：

张小白带你体验昇腾CANN3.3.0 https://bbs.huaweicloud.cn/blogs/254154

然后，有一次当昇腾体验馆，张小白写了一篇这个：

张小白的昇腾体验官日记 https://bbs.huaweicloud.cn/blogs/300351

而今，版本已经升级到了CANN 5.0.4了。与时俱进，张小白不得不更新到这个版本。（可见张小白对CANN的感情有多深）

浪子闲话少说，上图。

一、购买云服务器

新买一个AI1S服务器吧.

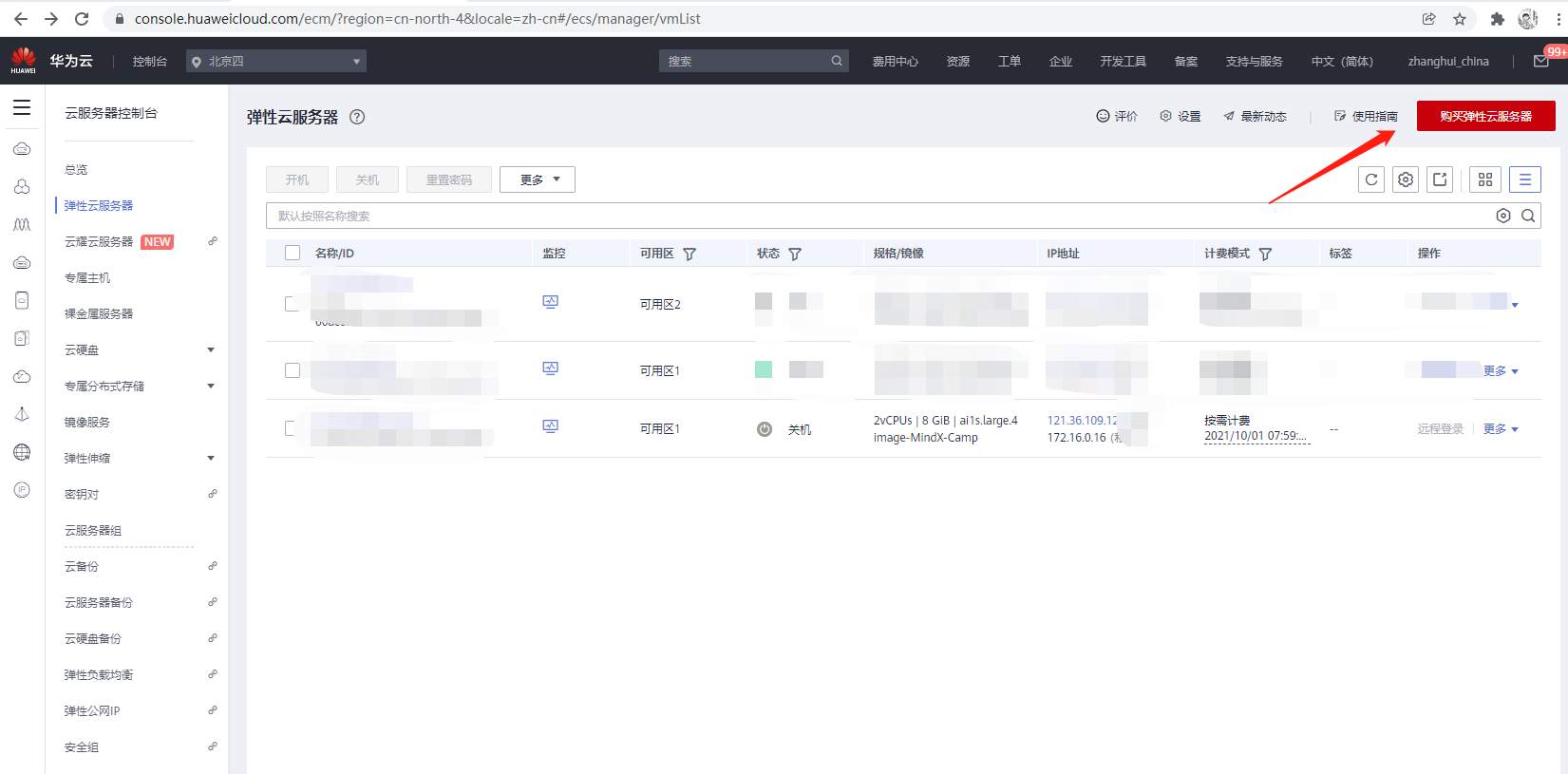

进入控制台->弹性云服务器(北京四)

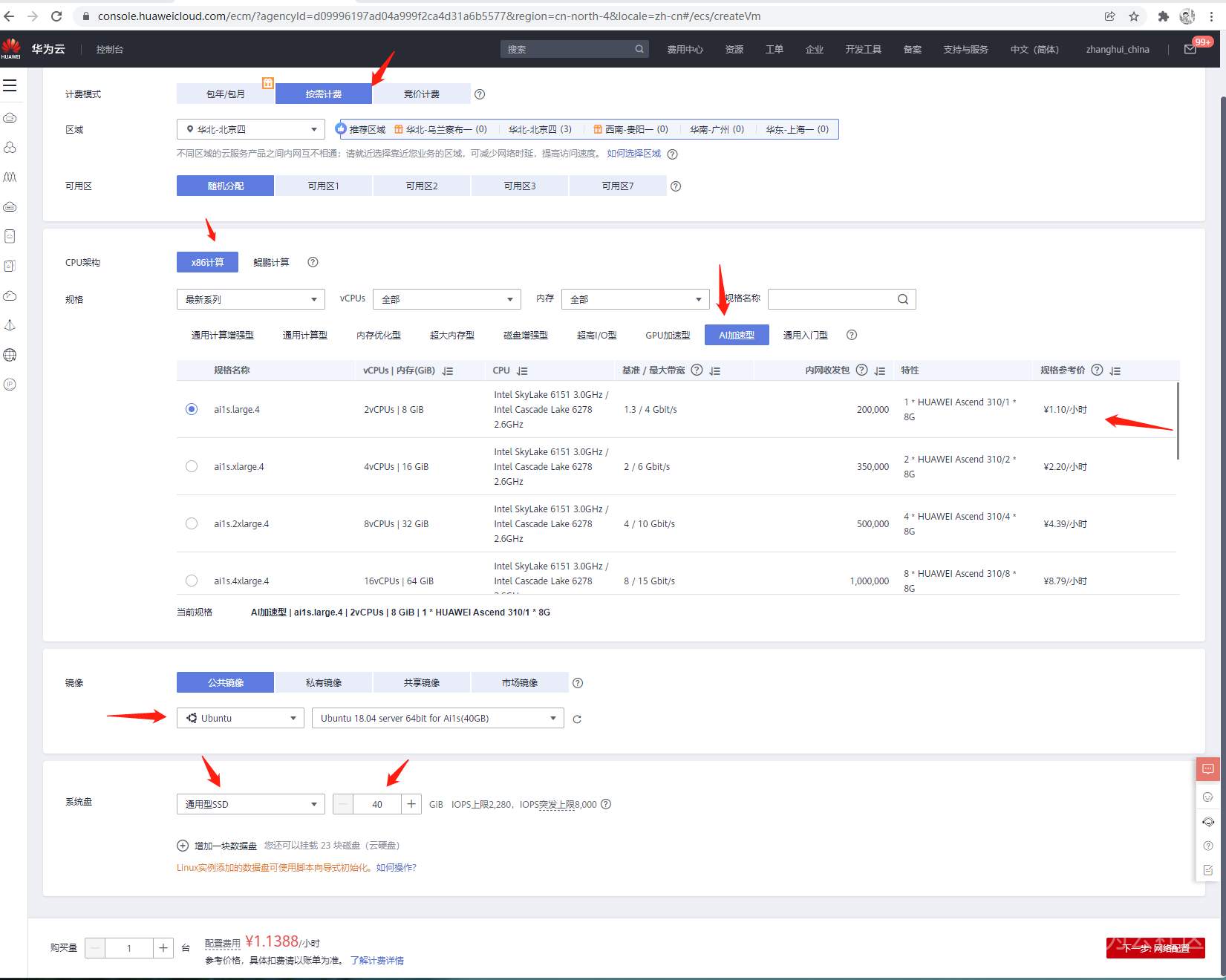

点击购买,填写以下参数:

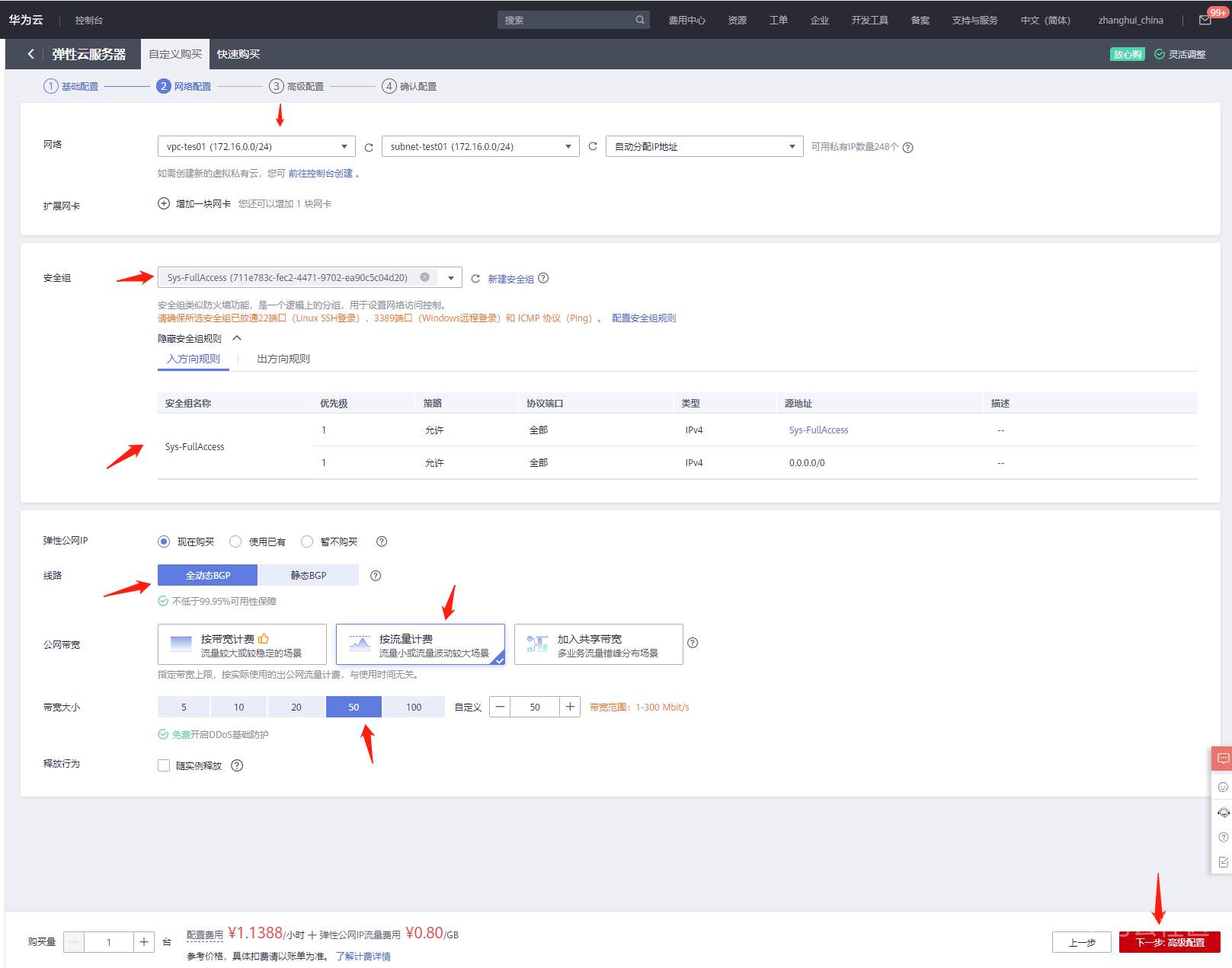

点击下一步:

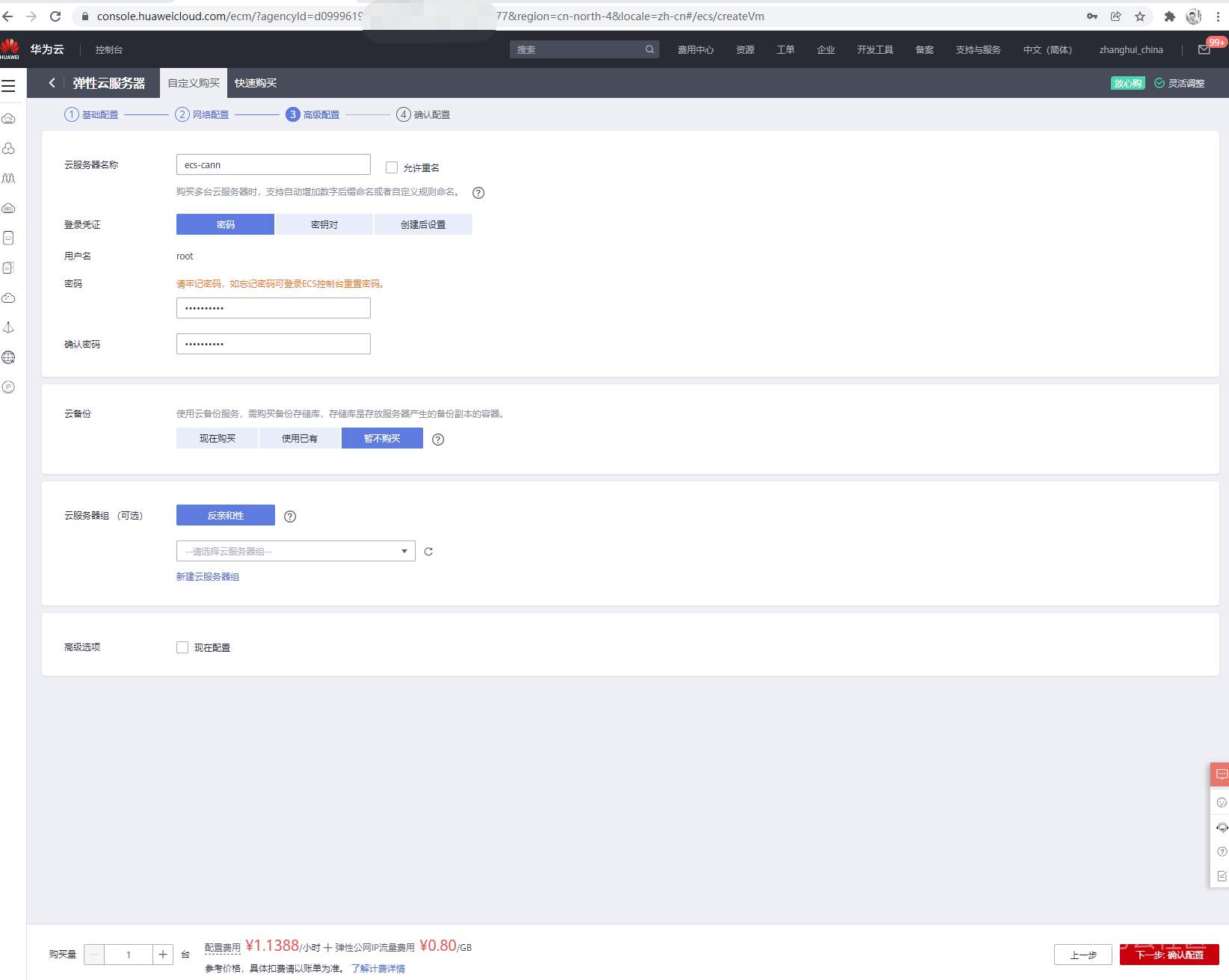

下一步:

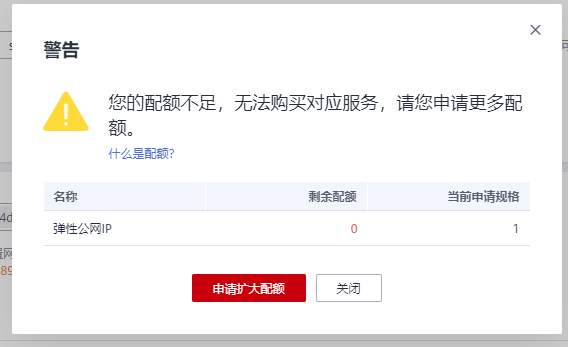

这种情况第一次遇到.

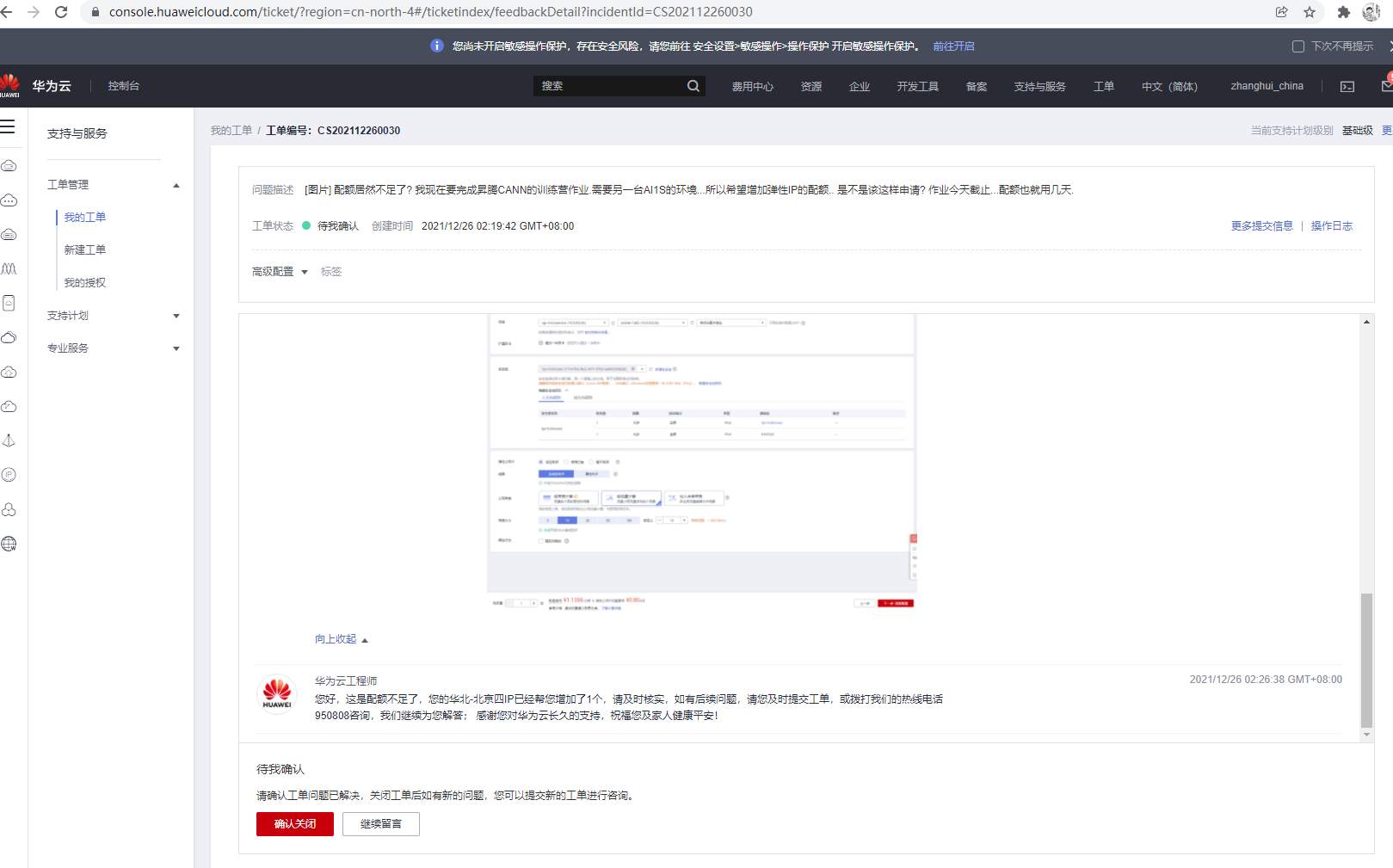

提了个工单:

请工单小姐姐帮忙（管TA是不是小姐姐，先叫小姐姐吧），然后可以继续了:

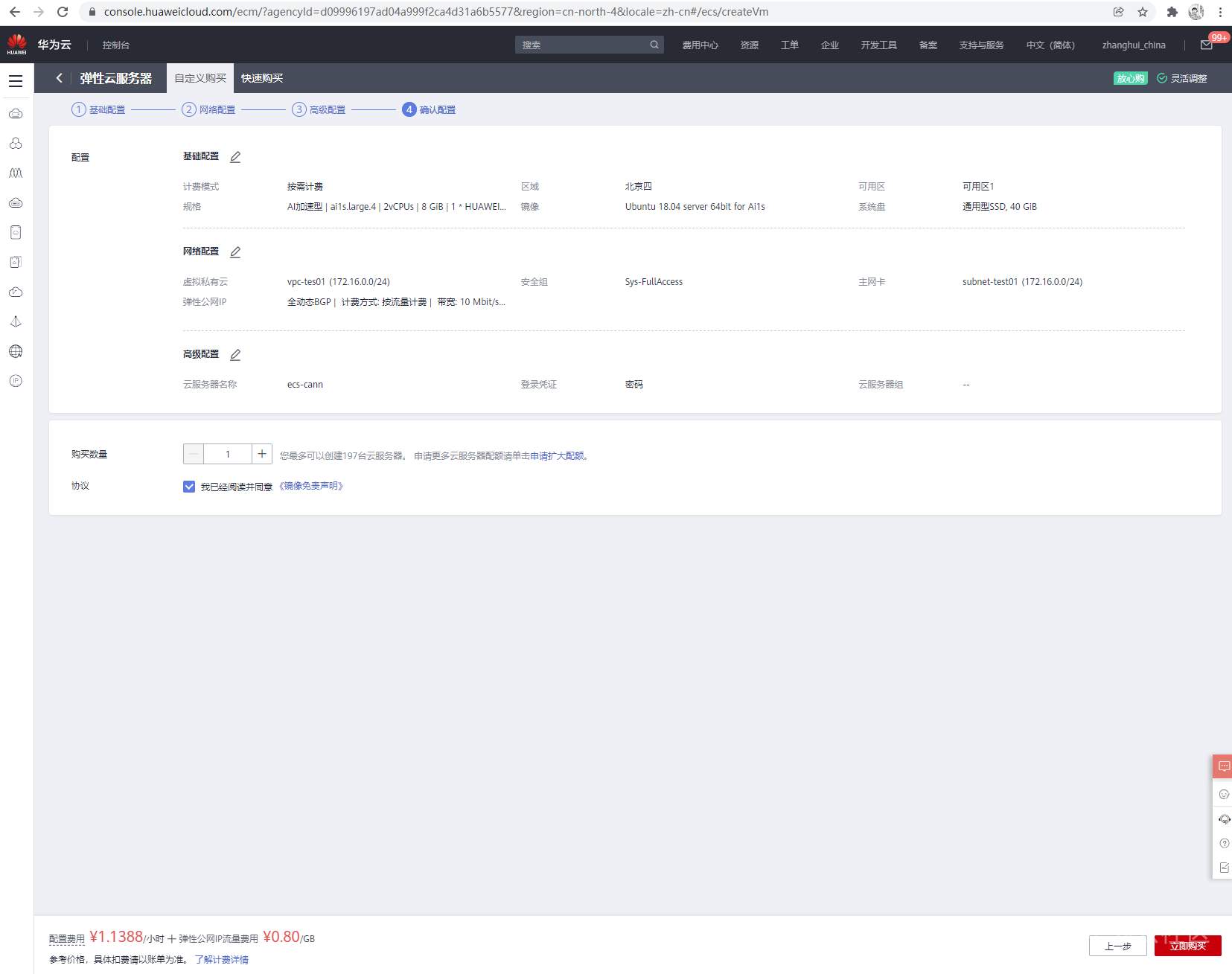

下一步确认:

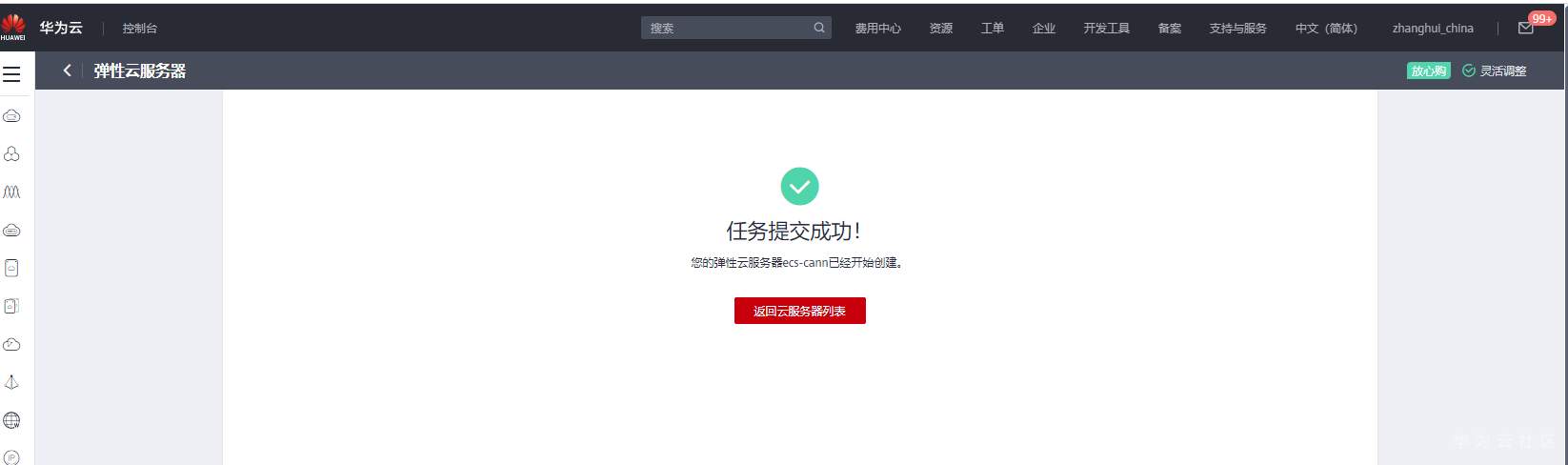

立即购买:

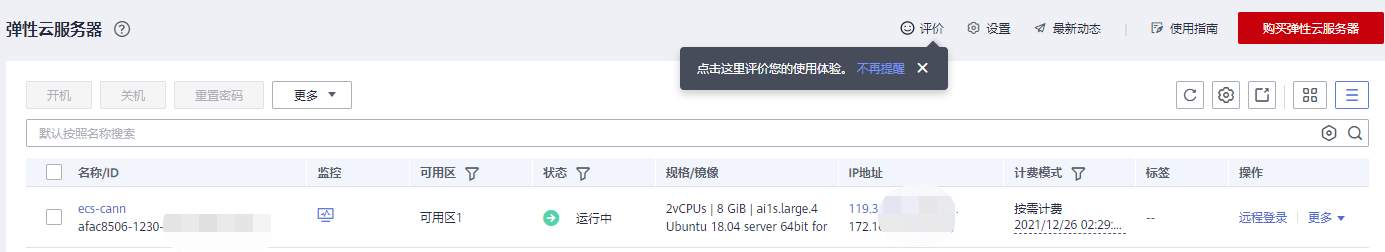

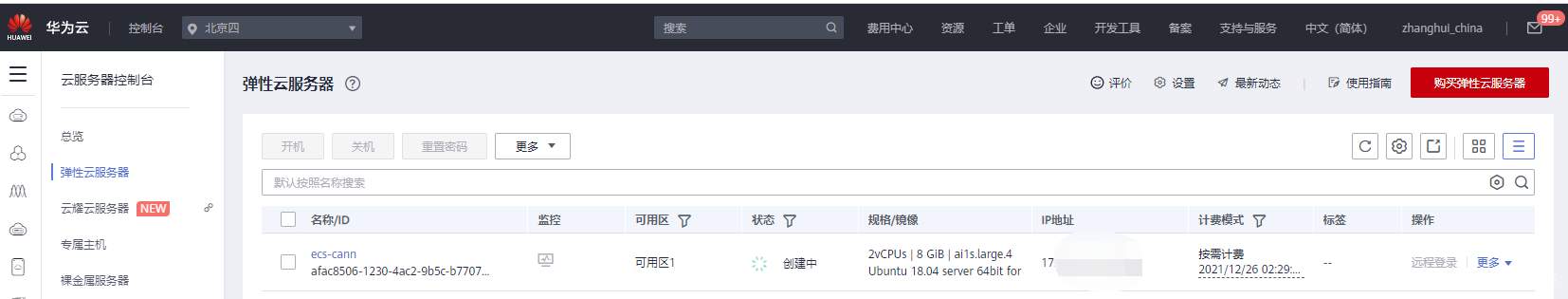

返回列表:

耐心等待AI1S服务器创建完毕.

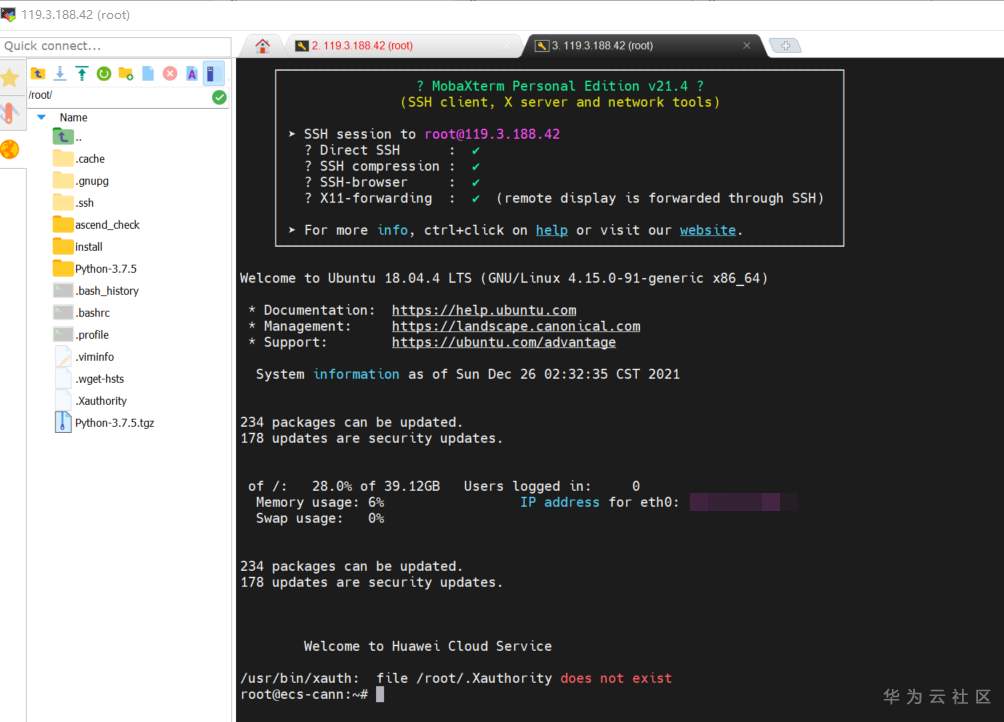

使用MobaXTerm登陆:

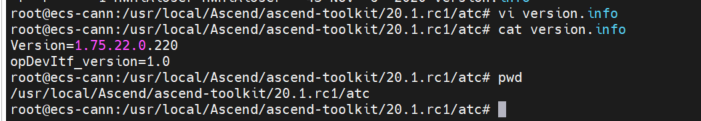

先看一下当前的CANN版本:

貌似确实比较旧.

二、下载CANN相关的软件包

先把CANN的版本都升级到最新版吧！（现在是5.0.4.alph003）

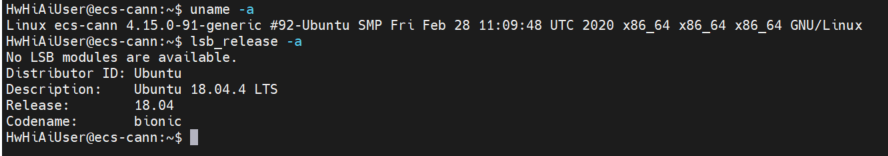

查看本机的ubuntu版本 lsb_release -a

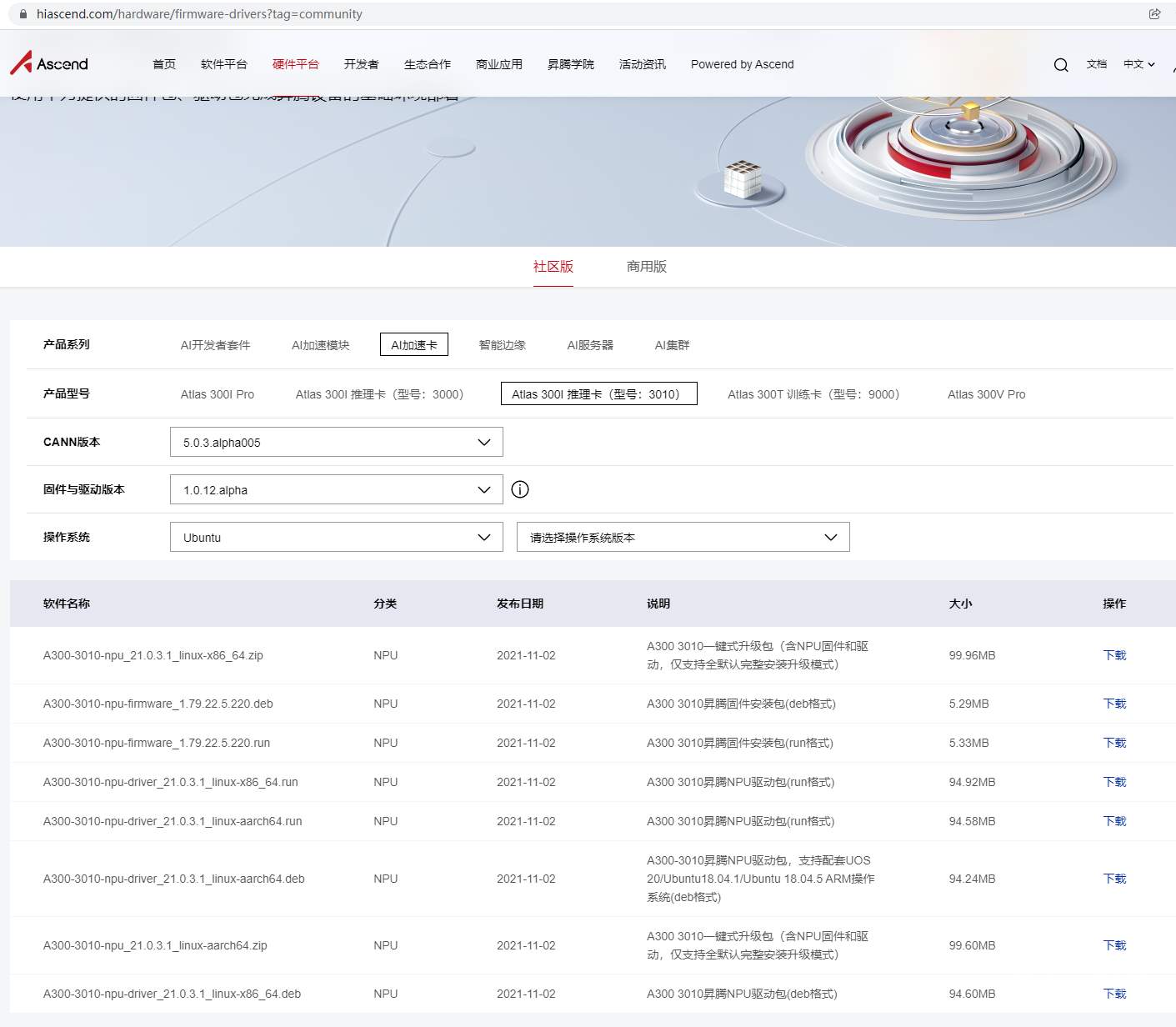

到hiascend.com下载CANN最新版软件包:

下载X86的包:

A300-3010-npu-driver_21.0.3.1_linux-x86_64.run

大小：94.9M

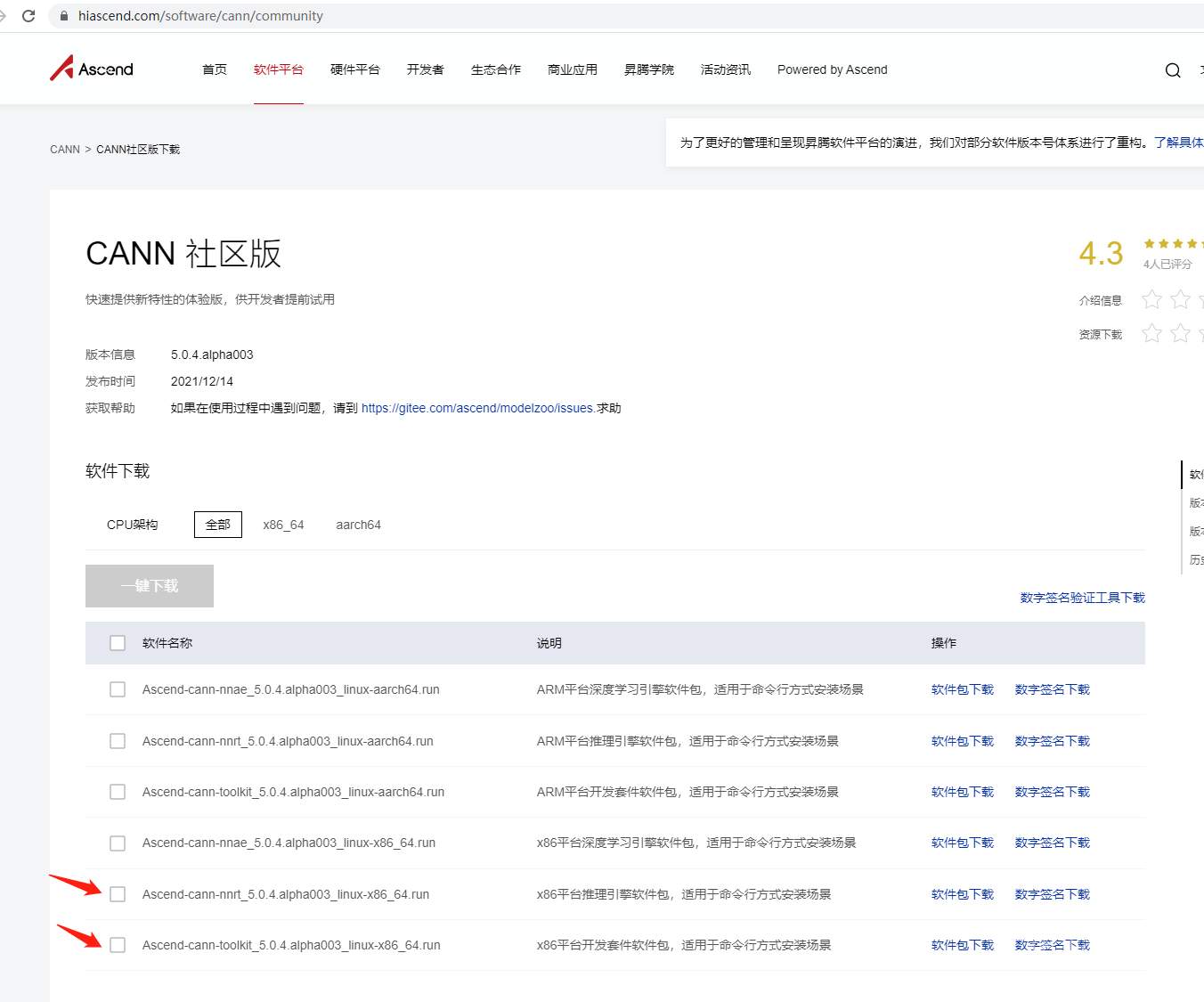

打开 https://ascend.huawei.cn/#/software/cann/community

下载nnrt包:

Ascend-cann-nnrt_5.0.4.alpha003_linux-x86_64.run

大小：175M左右

toolkit包:

Ascend-cann-toolkit_5.0.4.alpha003_linux-x86_64.run

大小：1G左右

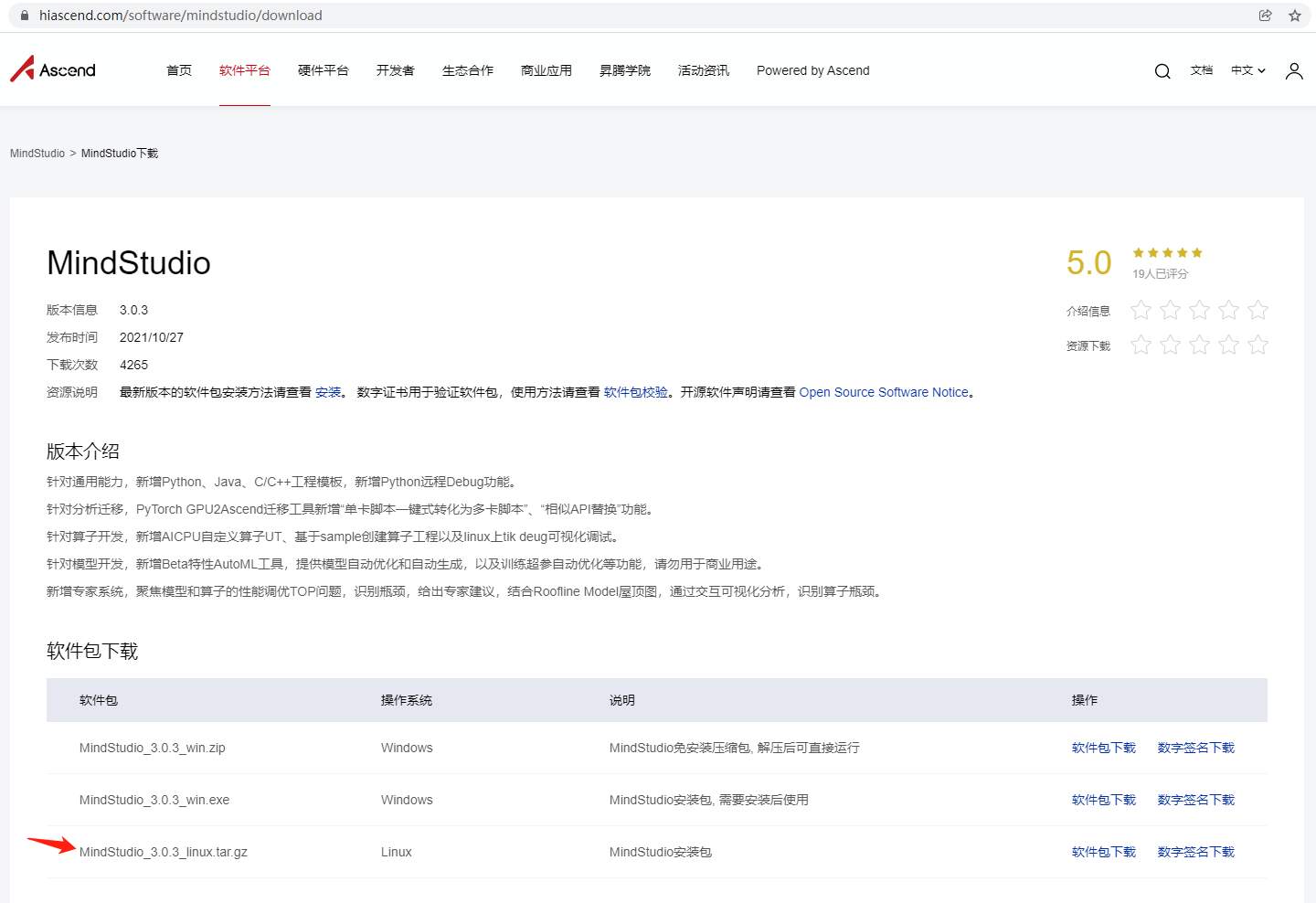

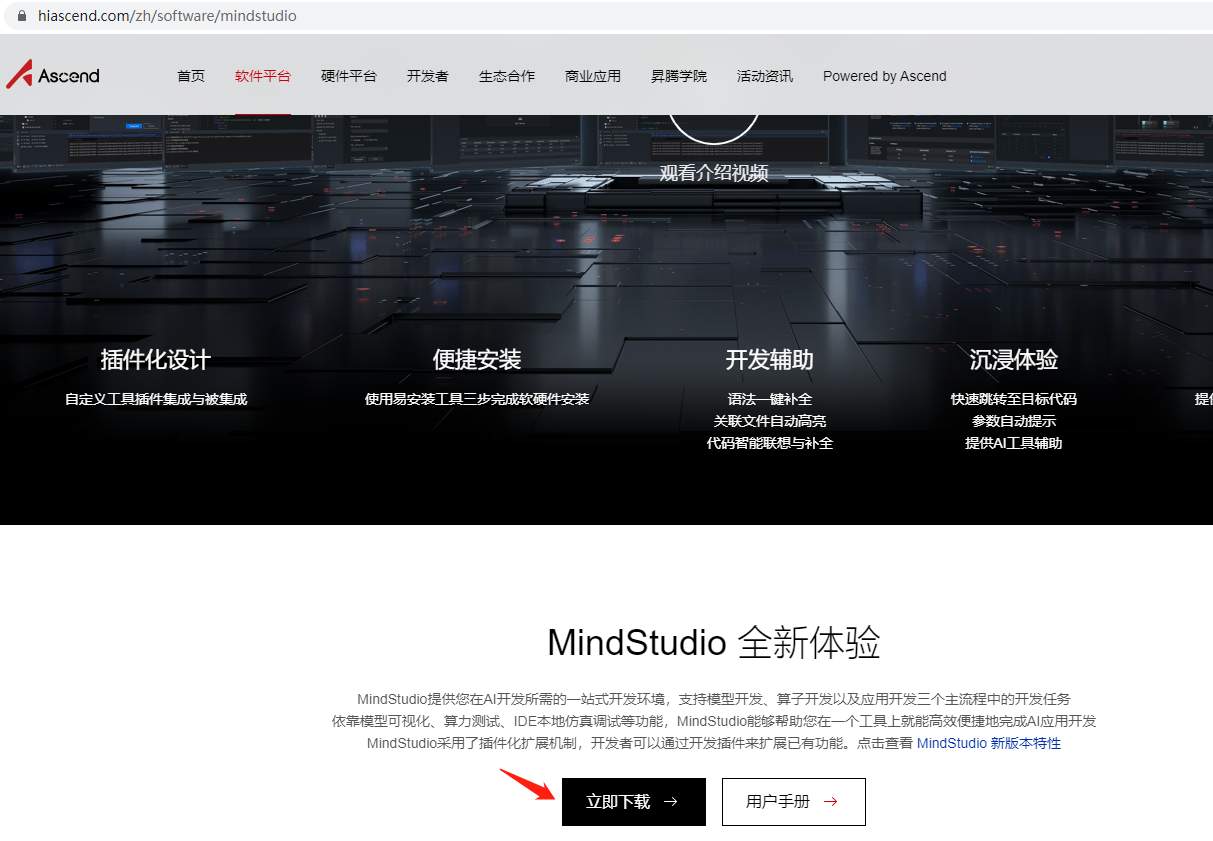

打开 https://www.hiascend.com/zh/software/mindstudio

点击立即下载

下载linux包:

MindStudio_3.0.3_linux.tar.gz

大小：341M左右

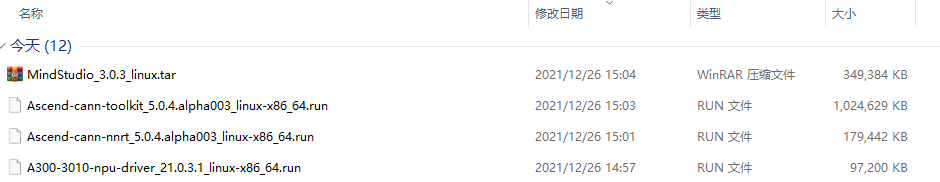

将上述文件（可使用MobaXTerm)传到服务器上。

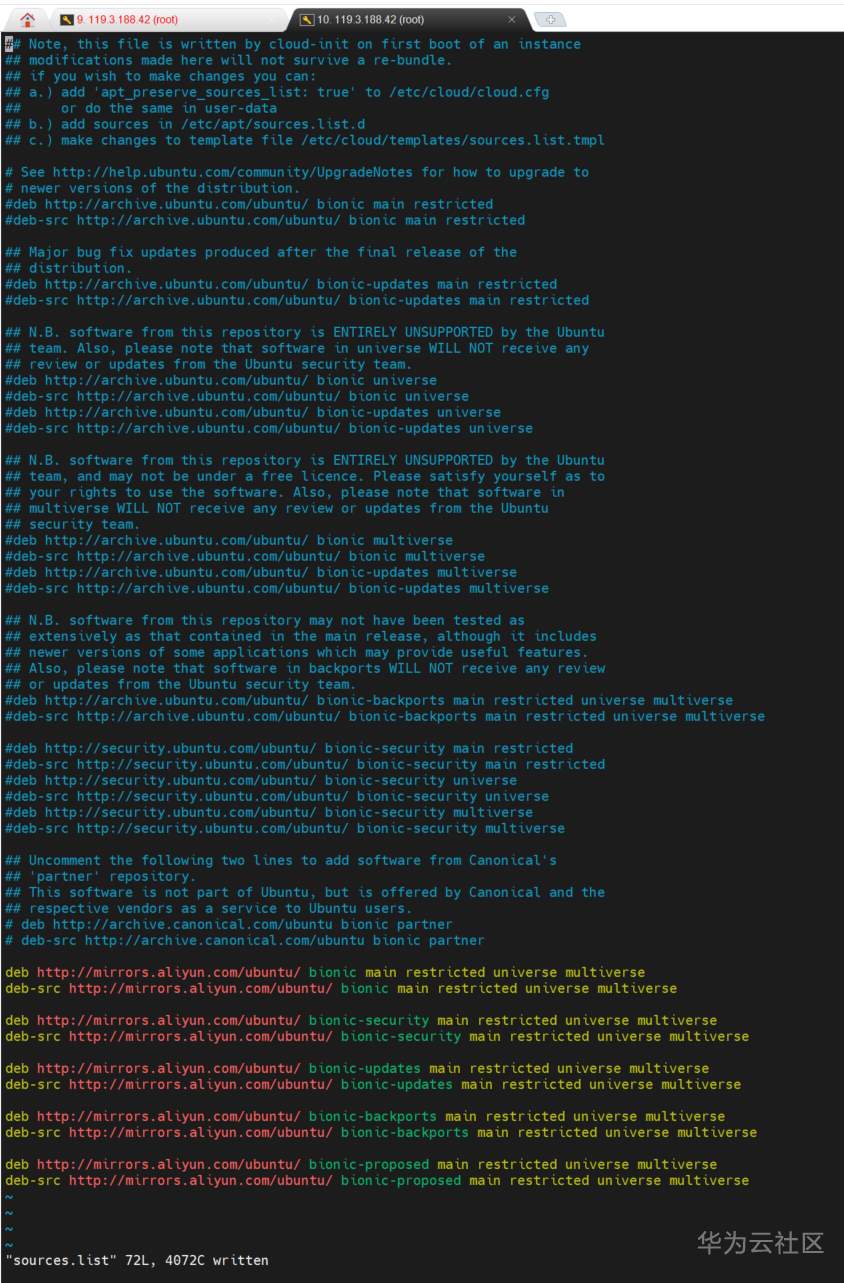

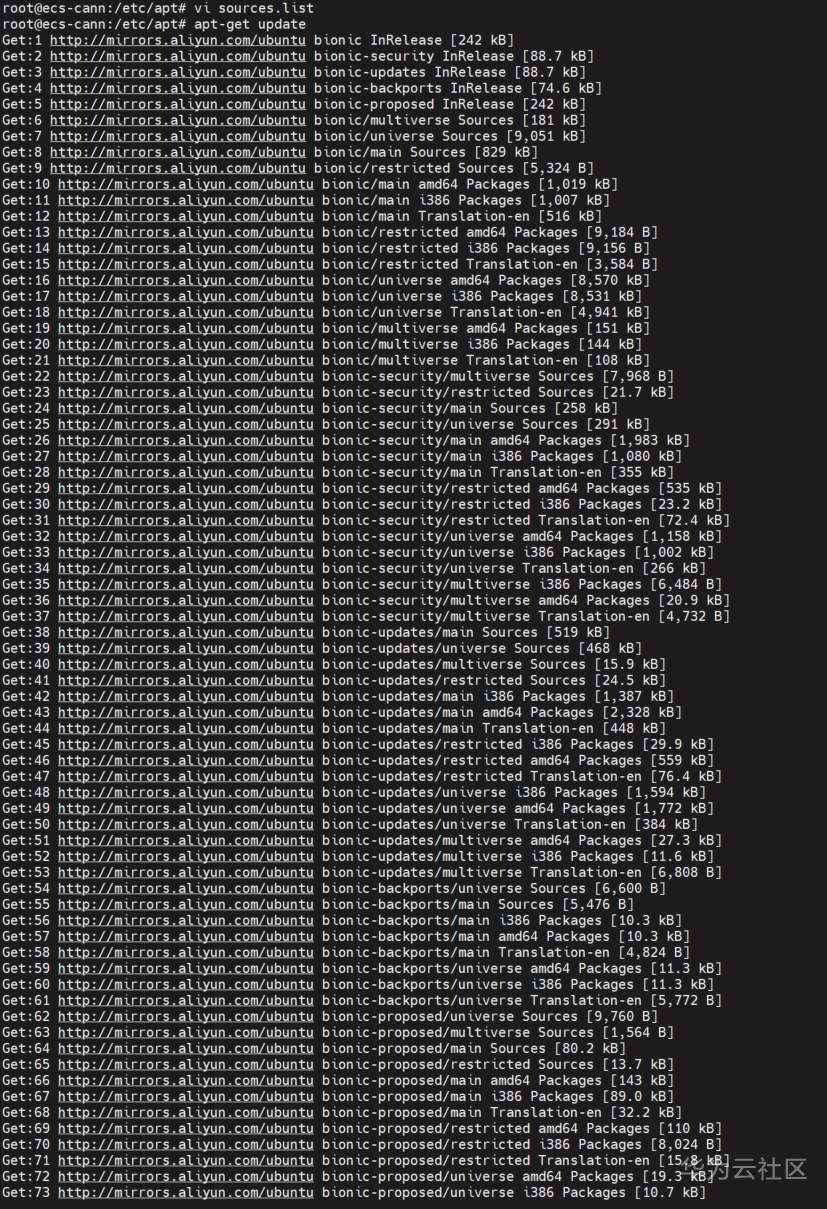

修改apt源

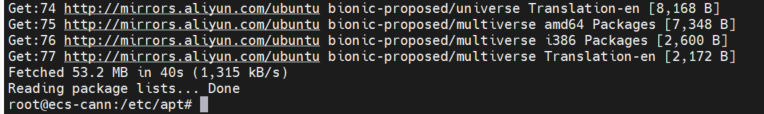

apt-get update

...

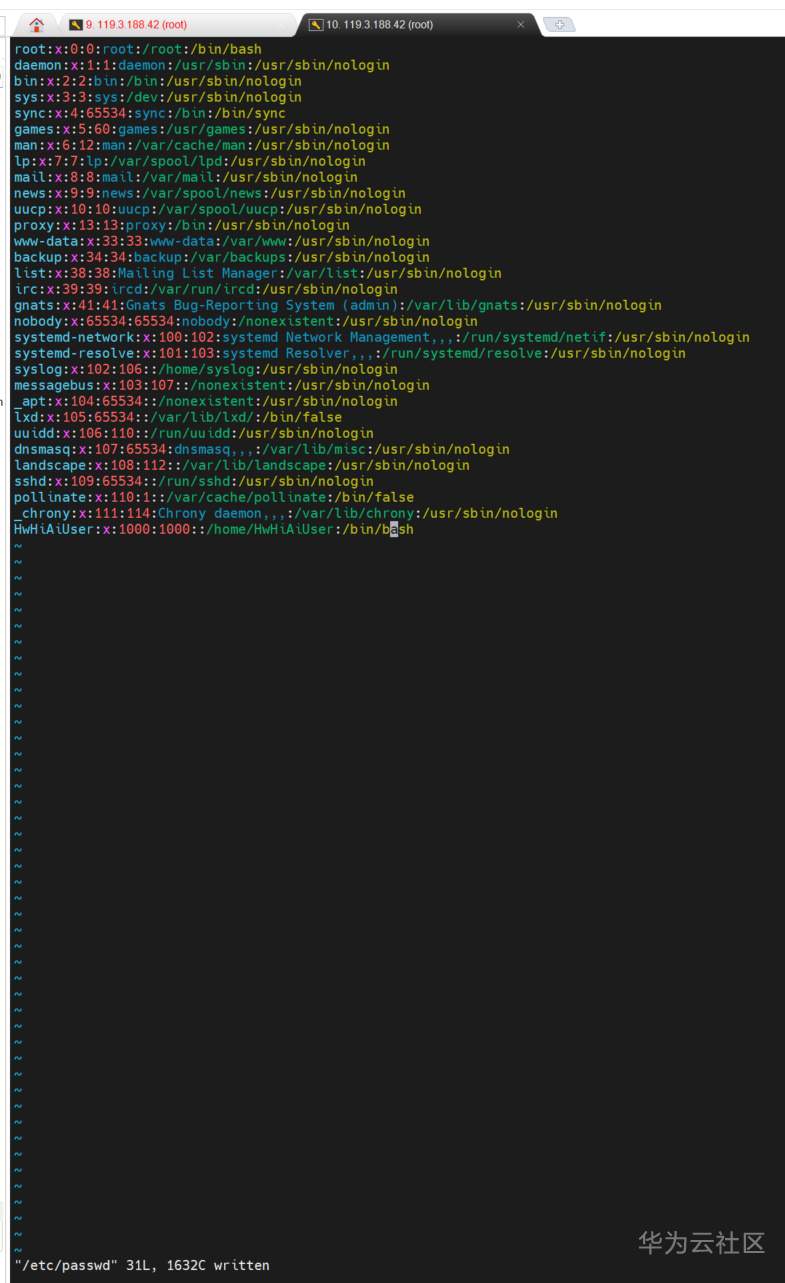

修改HwHiAiUser用户的shell为bash

三、安装依赖包

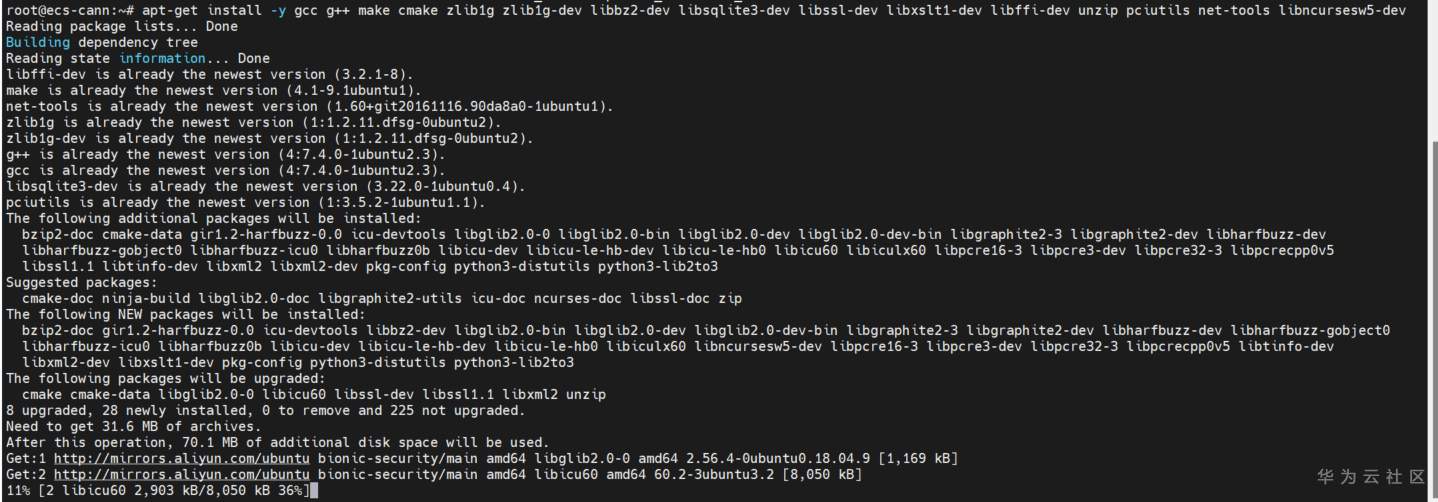

安装开发环境依赖

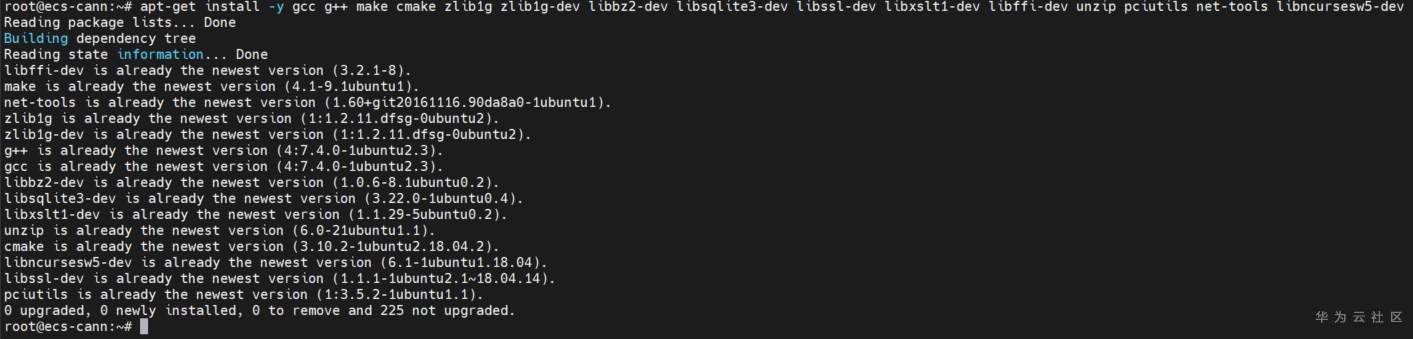

apt-get install -y gcc g++ make cmake zlib1g zlib1g-dev libbz2-dev libsqlite3-dev libssl-dev libxslt1-dev libffi-dev unzip pciutils net-tools libncursesw5-dev

...

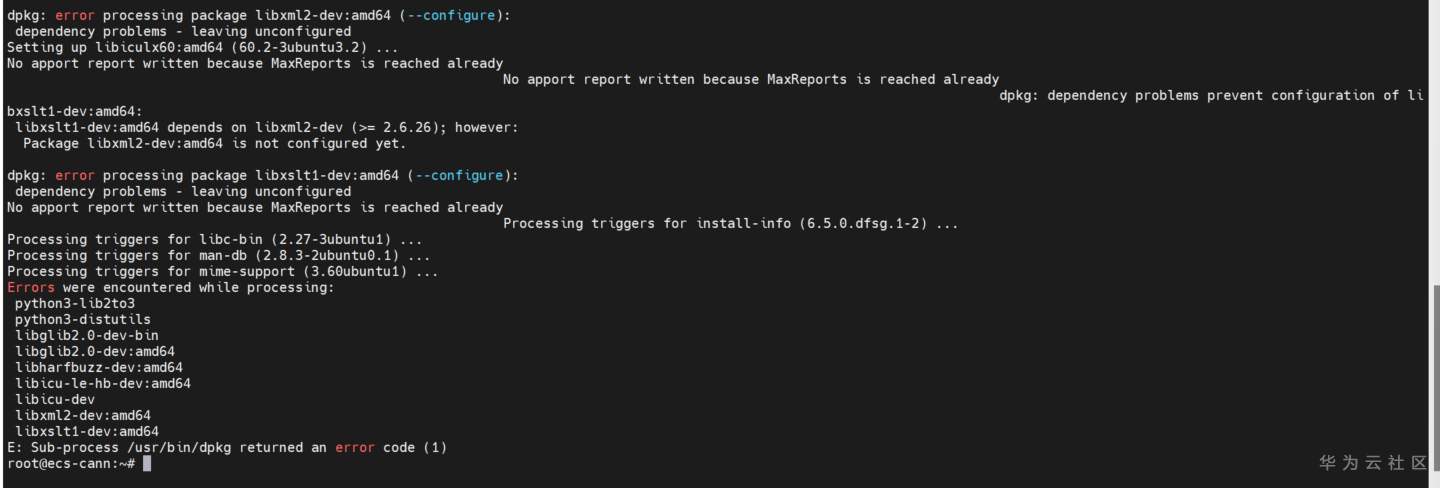

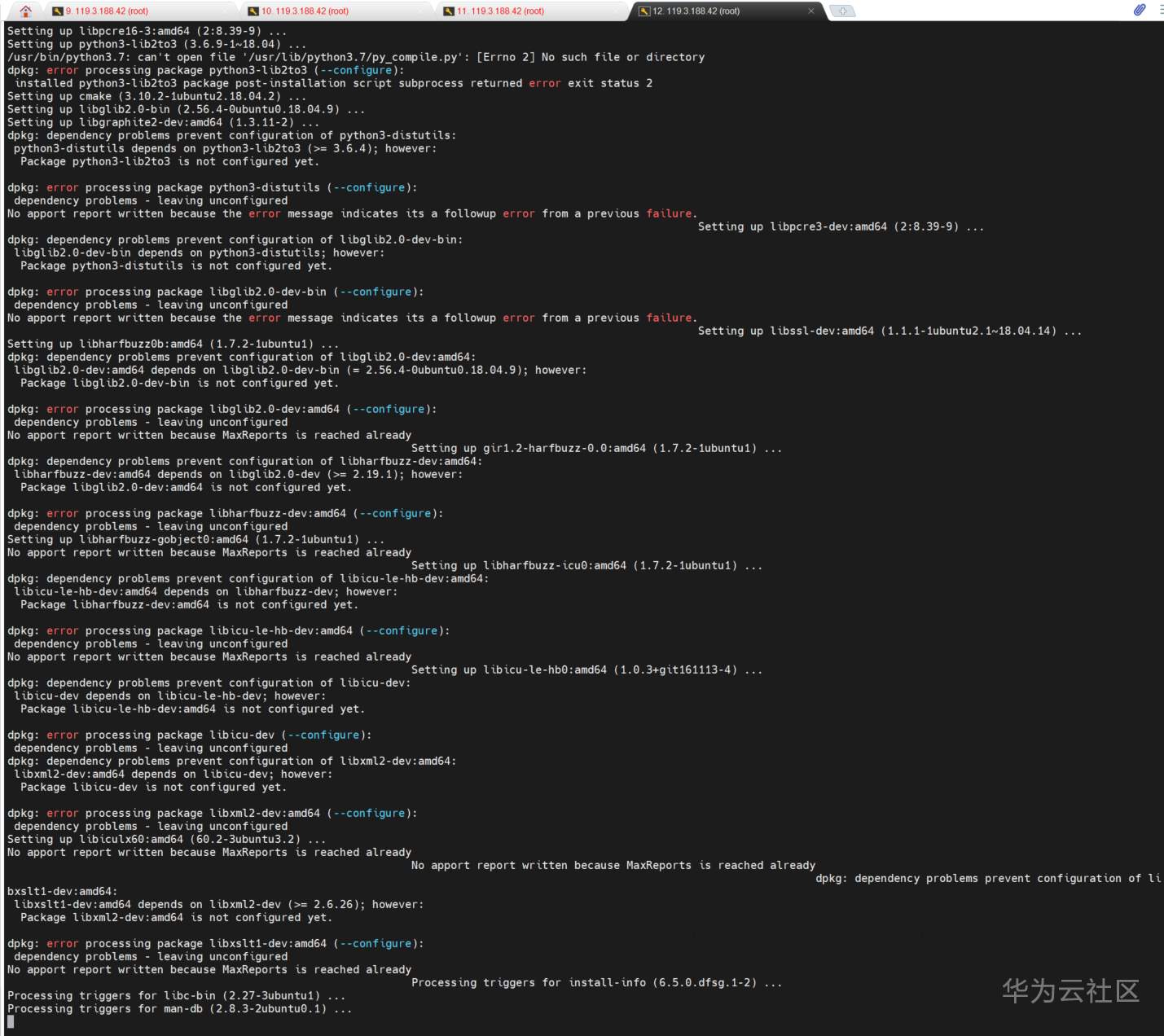

忽略 dpkg报错

...

安装python

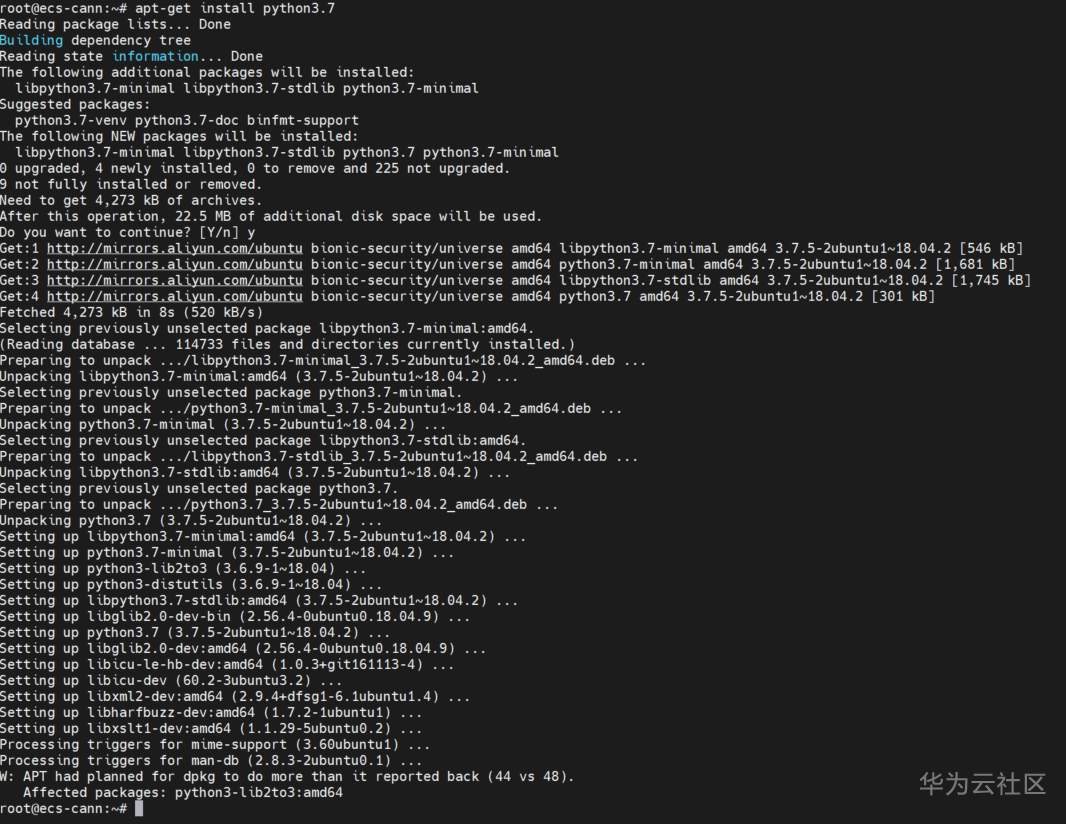

apt-get install python3.7

重新执行前面的apt-get

切换到HwHiAiUser用户

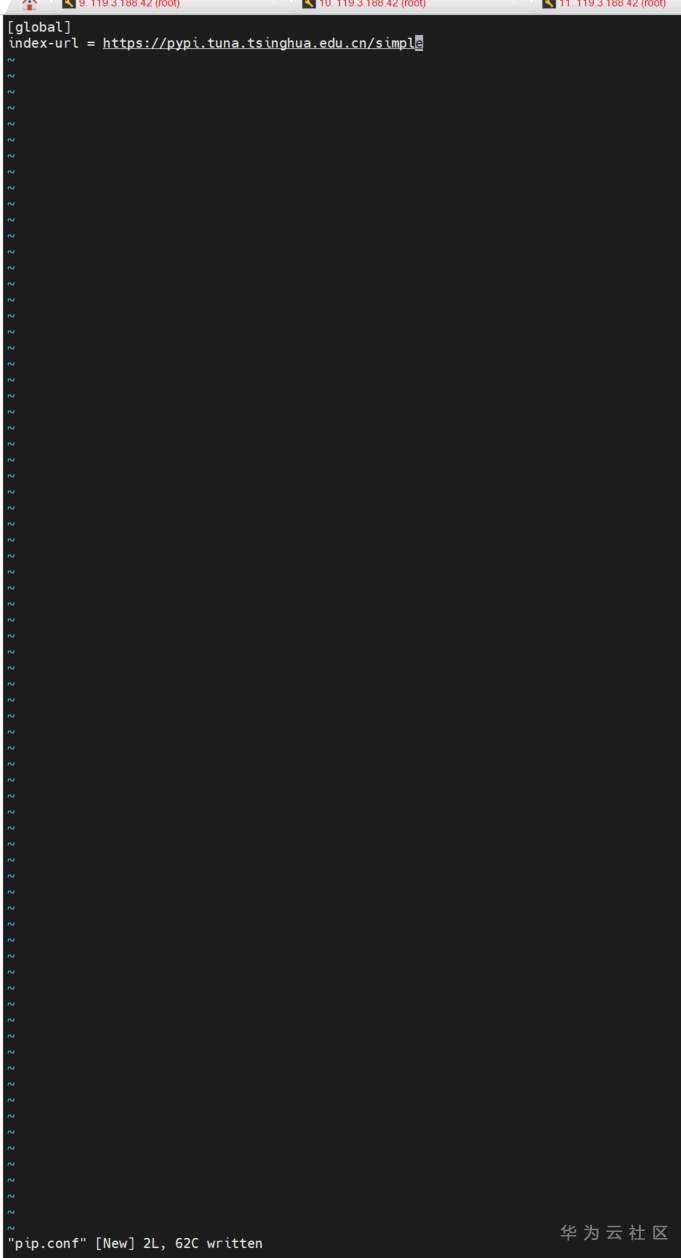

设置python源

mkdir .pip

cd .pip

vi pip.conf

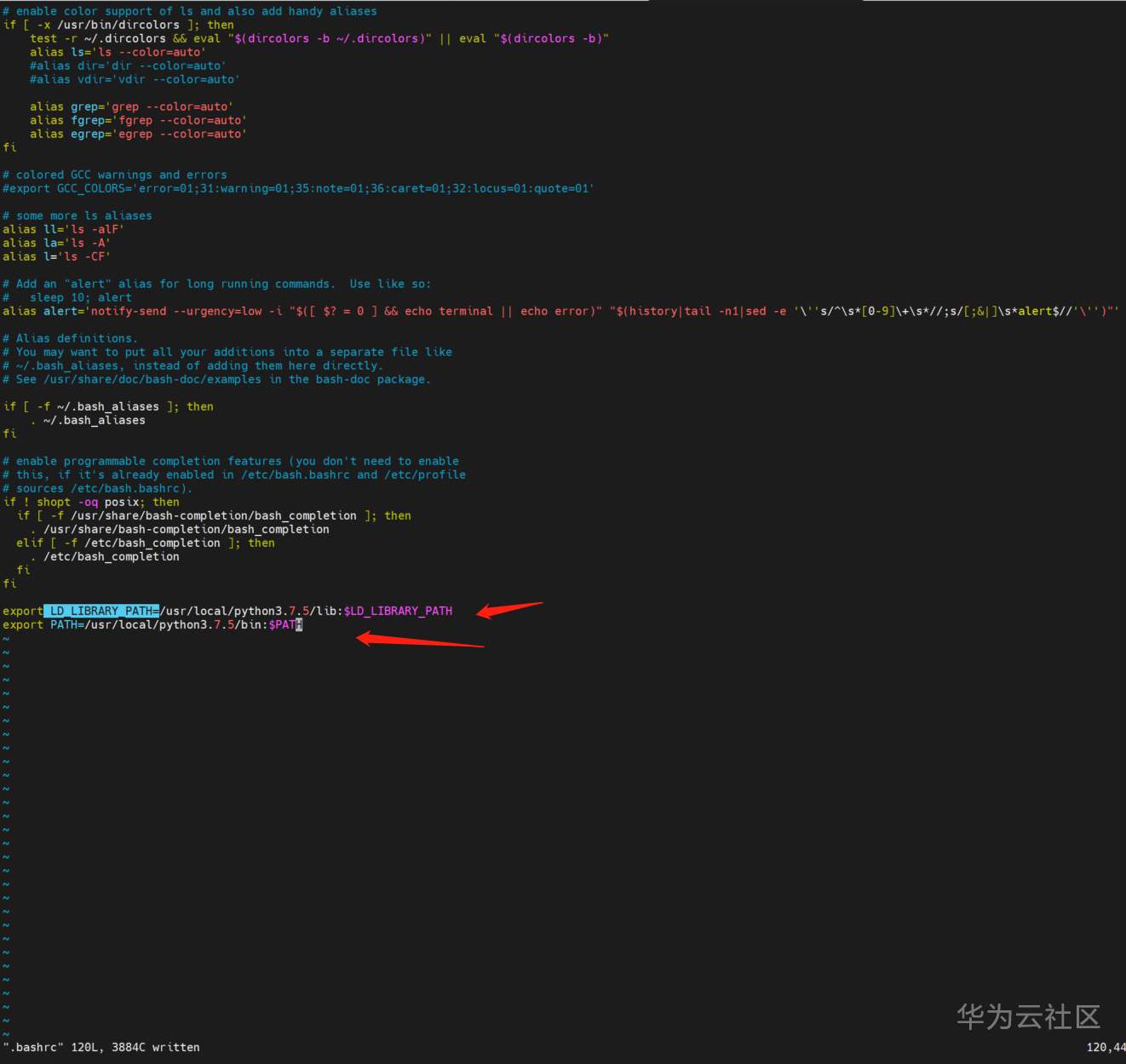

修改.bashrc

source ~/.bashrc 使得环境变量生效

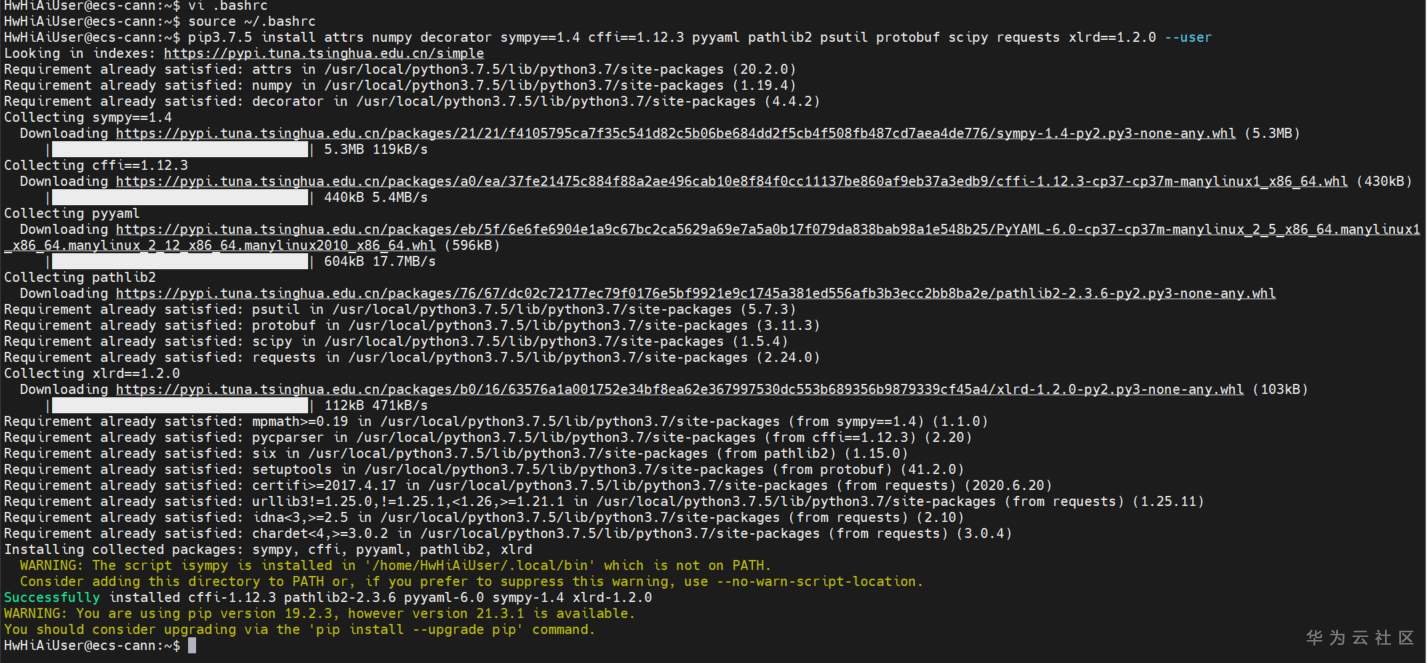

安装pip依赖包

pip3.7.5 install attrs numpy decorator sympy==1.4 cffi==1.12.3 pyyaml pathlib2 psutil protobuf scipy requests xlrd==1.2.0 --user

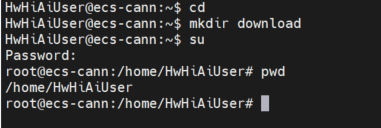

mkdir download

切换到root用户

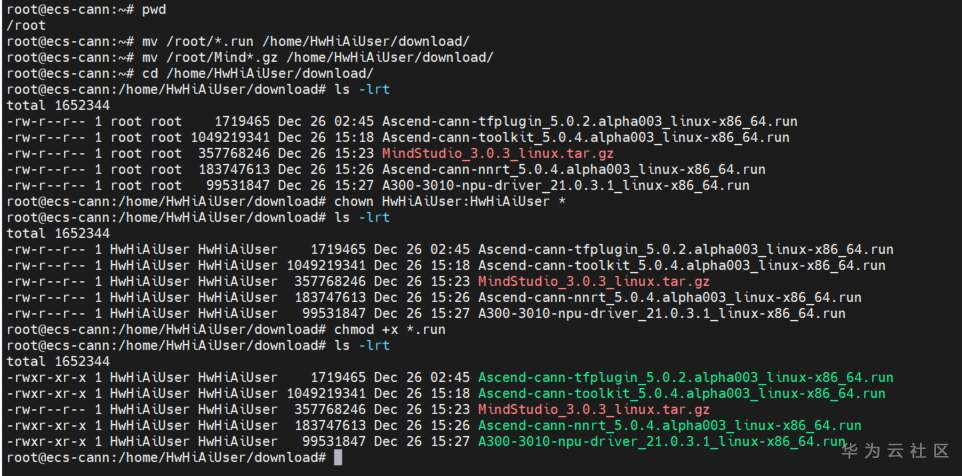

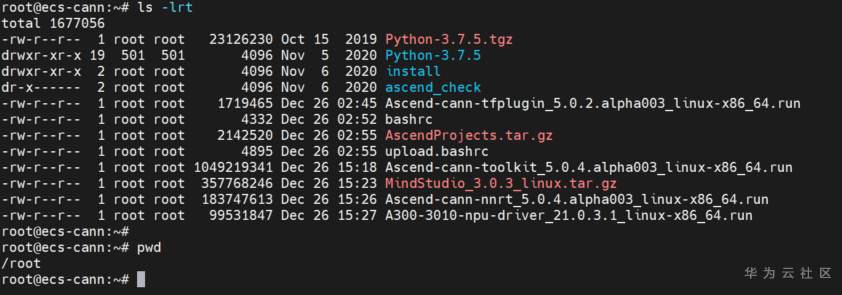

看一下/root上传好的包:

mv /root/*.run /home/HwHiAiUser/download/

mv /root/Mind*.gz /home/HwHiAiUser/download/

cd /home/HwHiAiUser/download/

chown HwHiAiUser:HwHiAiUser *

chmod +x *.run

四、安装NPU驱动

驱动，需要用root装

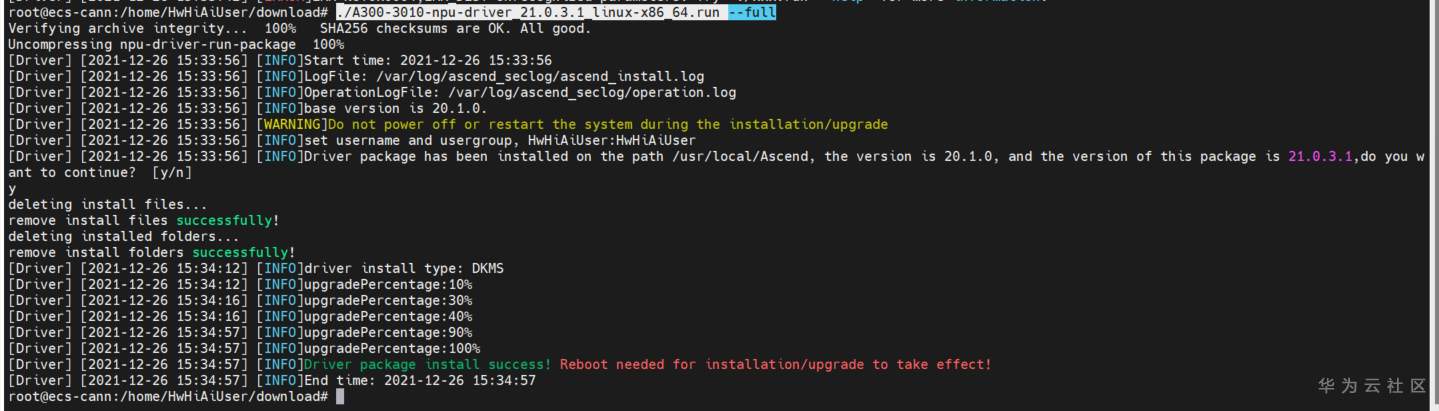

./A300-3010-npu-driver_21.0.3.1_linux-x86_64.run --full

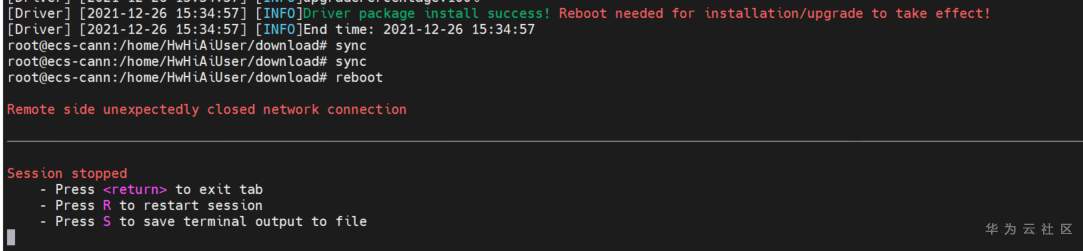

根据提示重启服务器

sync

reboot

五、安装nnrt

等服务器重启完毕,重新连接服务器

nnrt和toolkit和mindstudio，需要用HwHiAiUser装

su - HwHiAiUser

cd download

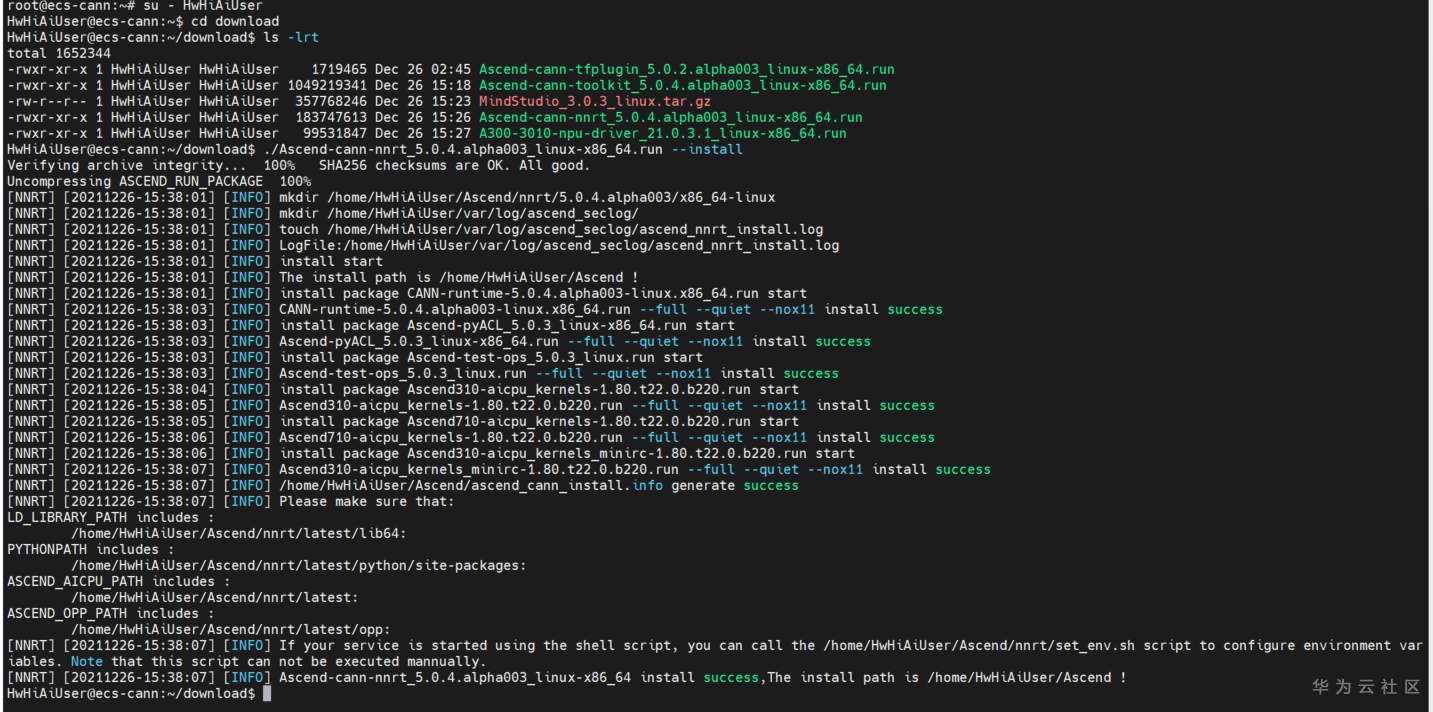

安装nnrt

./Ascend-cann-nnrt_5.0.4.alpha003_linux-x86_64.run --install

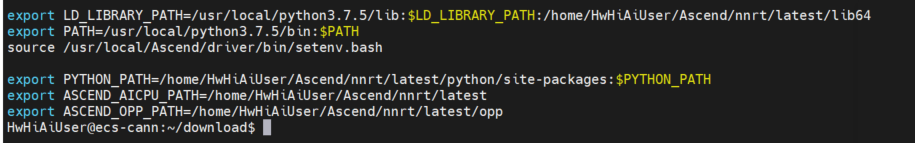

根据提示,在.bashrc中增加以下环境变量:

[NNRT] [20211226-15:38:07] [INFO] Please make sure that:
LD_LIBRARY_PATH includes :
        /home/HwHiAiUser/Ascend/nnrt/latest/lib64:
PYTHONPATH includes :
        /home/HwHiAiUser/Ascend/nnrt/latest/python/site-packages:
ASCEND_AICPU_PATH includes :
        /home/HwHiAiUser/Ascend/nnrt/latest:
ASCEND_OPP_PATH includes :
        /home/HwHiAiUser/Ascend/nnrt/latest/opp:
[NNRT] [20211226-15:38:07] [INFO] If your service is started using the shell script, you can call the /home/HwHiAiUser/Ascend/nnrt/set_env.sh script to configure environment variables. Note that this script can not be executed mannually.
[NNRT] [20211226-15:38:07] [INFO] Ascend-cann-nnrt_5.0.4.alpha003_linux-x86_64 install success,The install path is /home/HwHiAiUser/Ascend !

source ~/.bashrc

六、安装toolkit

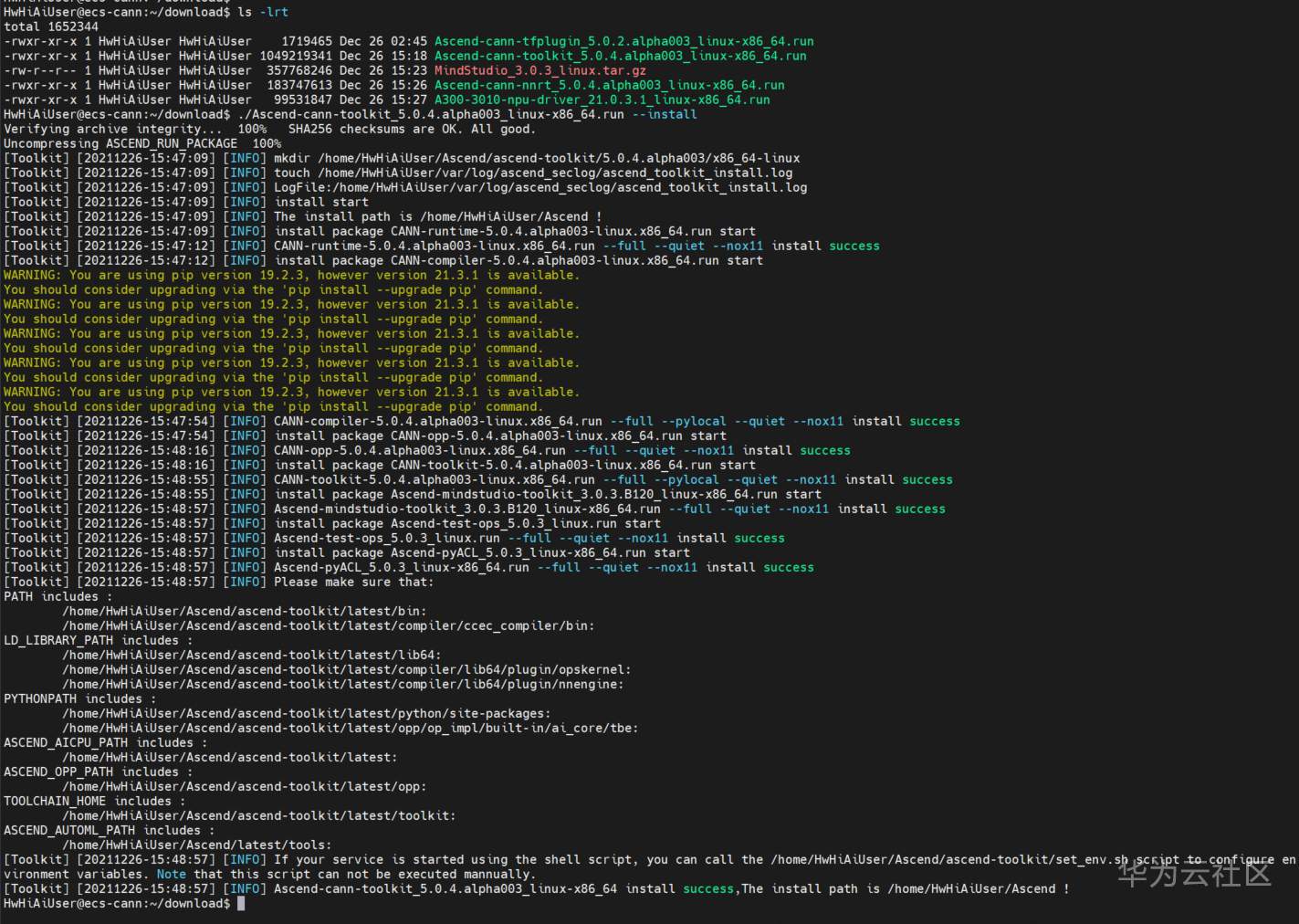

./Ascend-cann-toolkit_5.0.4.alpha003_linux-x86_64.run --install

这次安装过程中似乎不需要像CANN 3.3.0那样区分不同的情况做不同的环境变量了.

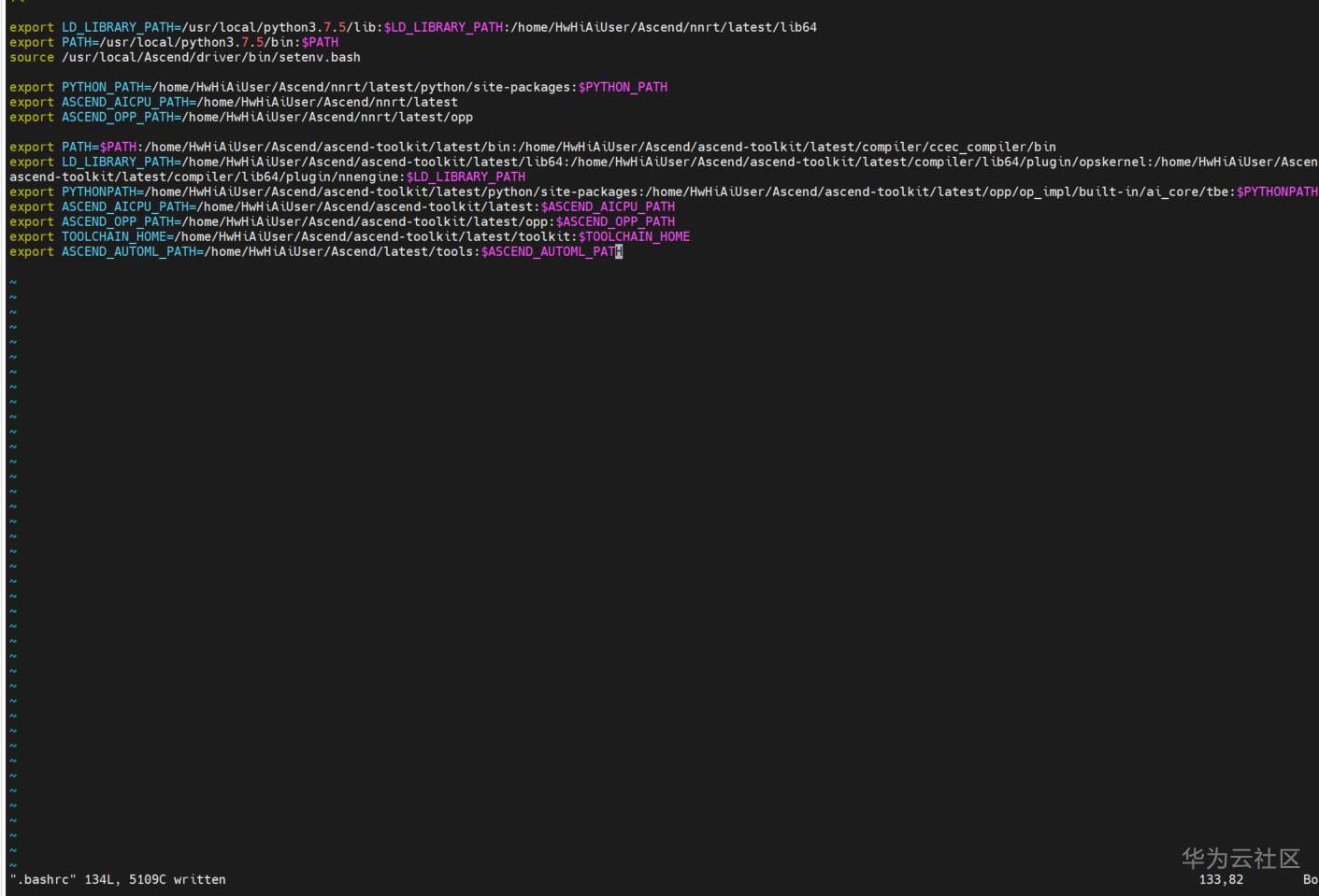

但是好像还是要配置一下环境变量:

[Toolkit] [20211226-15:48:57] [INFO] Please make sure that:
PATH includes :
        /home/HwHiAiUser/Ascend/ascend-toolkit/latest/bin:
        /home/HwHiAiUser/Ascend/ascend-toolkit/latest/compiler/ccec_compiler/bin:
LD_LIBRARY_PATH includes :
        /home/HwHiAiUser/Ascend/ascend-toolkit/latest/lib64:
        /home/HwHiAiUser/Ascend/ascend-toolkit/latest/compiler/lib64/plugin/opskernel:
        /home/HwHiAiUser/Ascend/ascend-toolkit/latest/compiler/lib64/plugin/nnengine:
PYTHONPATH includes :
        /home/HwHiAiUser/Ascend/ascend-toolkit/latest/python/site-packages:
        /home/HwHiAiUser/Ascend/ascend-toolkit/latest/opp/op_impl/built-in/ai_core/tbe:
ASCEND_AICPU_PATH includes :
        /home/HwHiAiUser/Ascend/ascend-toolkit/latest:
ASCEND_OPP_PATH includes :
        /home/HwHiAiUser/Ascend/ascend-toolkit/latest/opp:
TOOLCHAIN_HOME includes :
        /home/HwHiAiUser/Ascend/ascend-toolkit/latest/toolkit:
ASCEND_AUTOML_PATH includes :
        /home/HwHiAiUser/Ascend/latest/tools:
[Toolkit] [20211226-15:48:57] [INFO] If your service is started using the shell script, you can call the /home/HwHiAiUser/Ascend/ascend-toolkit/set_env.sh script to configure environment variables. Note that this script can not be executed mannually.
[Toolkit] [20211226-15:48:57] [INFO] Ascend-cann-toolkit_5.0.4.alpha003_linux-x86_64 install success,The install path is /home/HwHiAiUser/Ascend !

source ~/.bashrc

使得环境变量生效

七、安装MindStudio

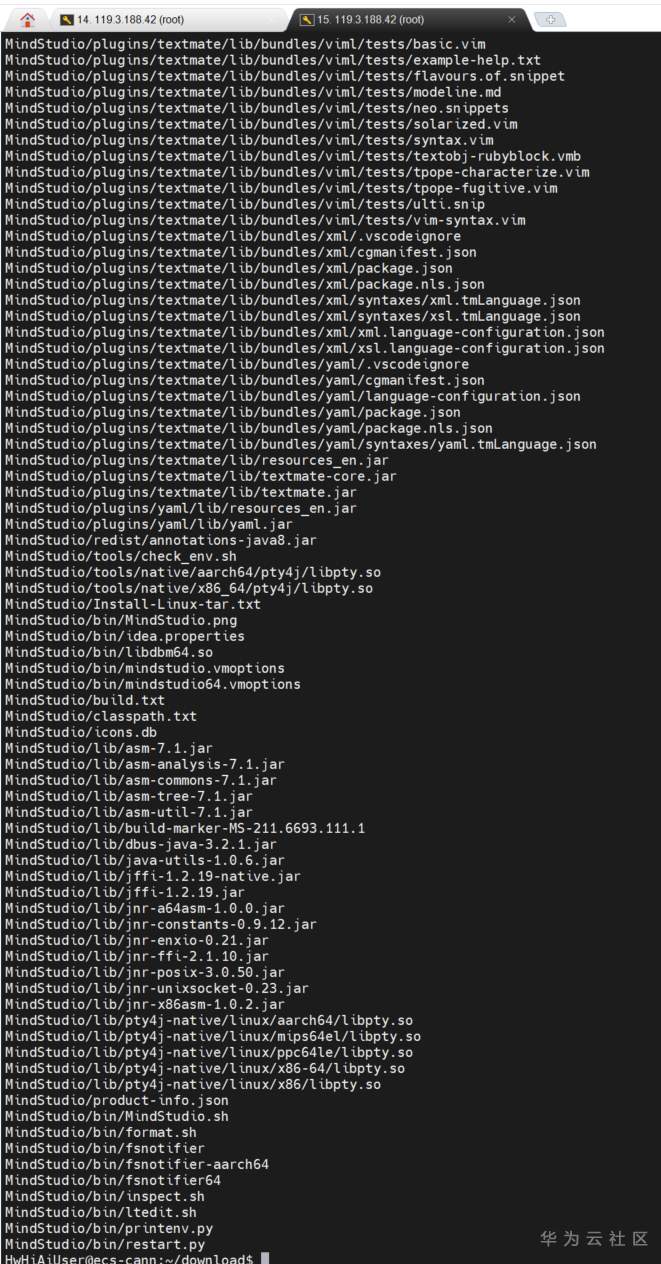

解压mindstudio安装包:

tar -zxvf MindStudio_3.0.3_linux.tar.gz

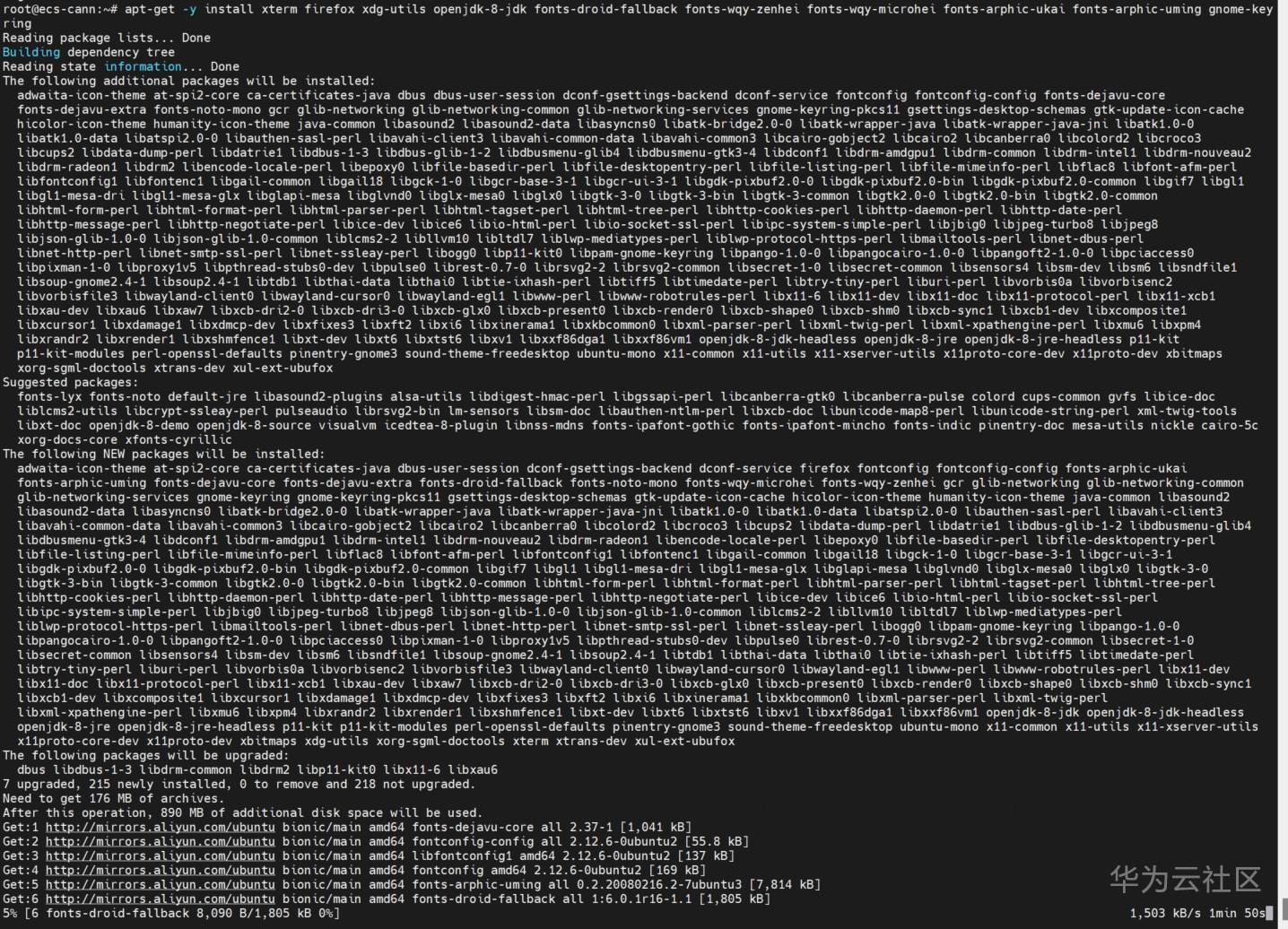

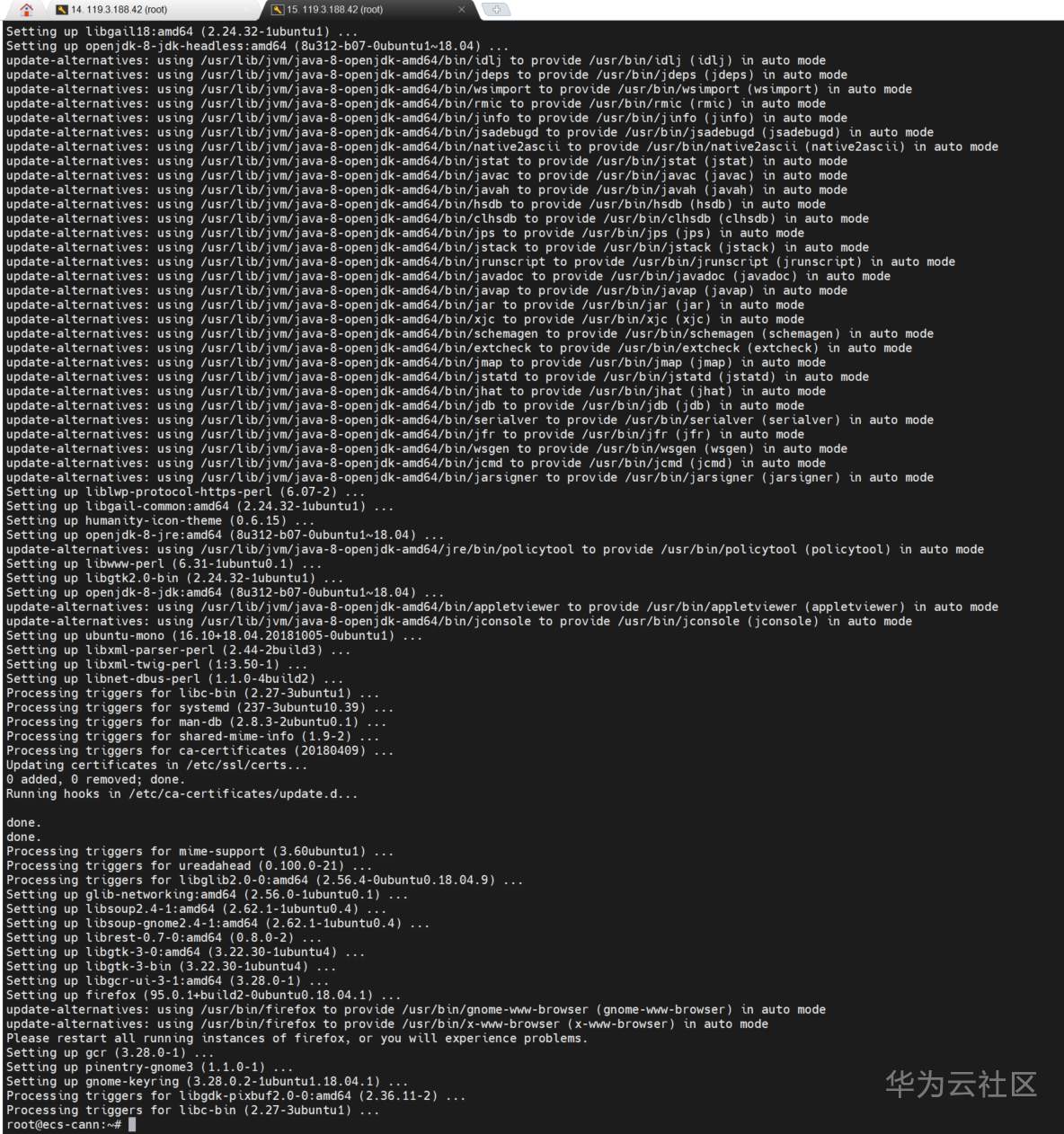

使用root用户安装mindstudio的依赖包

apt-get -y install xterm firefox xdg-utils openjdk-8-jdk fonts-droid-fallback fonts-wqy-zenhei fonts-wqy-microhei fonts-arphic-ukai fonts-arphic-uming gnome-keyring
