华为云classroom 发表于 2023/12/19 11:22:22 2023/12/19
【摘要】 云服务、API、SDK,调试,查看,我都行 阅读短文您可以学习到:人工智能AI自言语言的情感分析、文本分词、文本翻译1      Classroom和Toolkit的关系1.1      Classroom的简介classroom是基于华为云的云上软件教学服务,支持初级开发者和高校师生实现备课、上课、作业、考试、实验、实训等全教学流程的线上教学,提供多类习题自动判题、企业级DevOps实训、...

云服务、APISDK,调试,查看,我都行

阅读短文您可以学习到:人工智能AI自言语言的情感分析、文本分词、文本翻译

1      Classroom和Toolkit的关系

1.1      Classroom的简介

classroom是基于华为云的云上软件教学服务,支持初级开发者和高校师生实现备课、上课、作业、考试、实验、实训等全教学流程的线上教学,提供多类习题自动判题、企业级DevOps实训、免费在线习题库等众多高级特性辅助进行数字化教学转型。

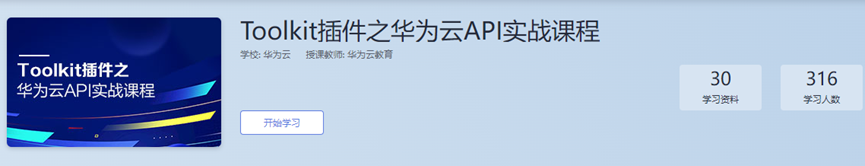

1.2      Toolkit插件之华为云API实战课程


2      IntelliJ IDEA 之API插件介绍

API插件支持 VS Code IDEIntelliJ IDEA等平台、以及华为云自研 CodeArts IDE,基于华为云服务提供的能力,帮助开发者更高效、便捷的搭建应用。API插件关联华为云服务下的 API ExplorerDevStarCodeLabsSDK 中心和 CLI 中心产品,致力于为开发者提供更稳定、快速、安全的编程体验。

在本插件中,我们提供了但不局限于如下的功能:

对接华为云API开放平台,支持用户检索API、查看API文档、调试API、以及提供SDK示例代码供用户学习如何使用API

提供华为云SDK代码片段补全功能,SDK依赖包自动引入,加速用户集成华为云API

对接华为云开发体验馆Codelabs,提供500+云服务代码示例,向导式教程帮助用户快速学习。

说明:

IntelliJ IDEA等系列平台和VS Code IDE,华为云API插件的名称是Huawei Cloud API。而在CodeArts IDEAPI插件是IDE原生内置的,名称是华为云API开发套件。

API插件在IntelliJ IDEA等系列平台和VS Code IDE的使用依赖底座插件,请提前安装底座插件。

3      API插件安装--IntelliJ IDEA

3.1    IntelliJ IDEA等平台

安装准备:下载并安装JDK1.8或更高版本。下载并安装IntelliJ IDEA 2020.2或更高版本。

须知:IntellIj平台同时支撑包括GolandPycharm等在内的IDE,若在其它相关IDE上开发,请下载配置好对应语言的编译器或者解释器。这里以IDEA为例介绍IntelliJ平台插件的安装流程,其他IntelliJ系列的IDE请参考IDEA

开始安装:

您可以在直接在IDE插件市场或者直接在JetBrains插件市场下载离线包安装。

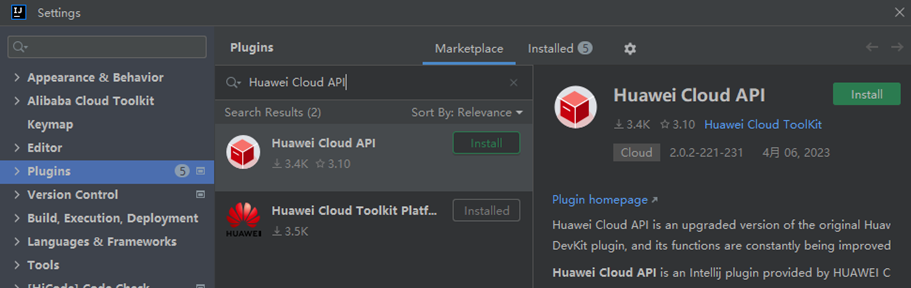

IDE安装

  1. IntelliJ IDEA顶部菜单栏中选择File > Settings,在Settings对话框的左侧导航栏中单击Plugins
  2. Plugins区域单击Marketplace,在搜索栏中输入Huawei Cloud API
  3. Search Results区域会出现Huawei Cloud API,单击Install,完成后重启IDE


离线包安装:

  1. 进入插件市场搜索Huawei Cloud API,进入插件详情页,在Versions页签下选择想要版本的API插件,点击Download下载离线的插件压缩包保存到本地。。
  2. IntelliJ IDEA顶部菜单栏中选择File > Settings,在Settings对话框的左侧导航栏中单击Plugins

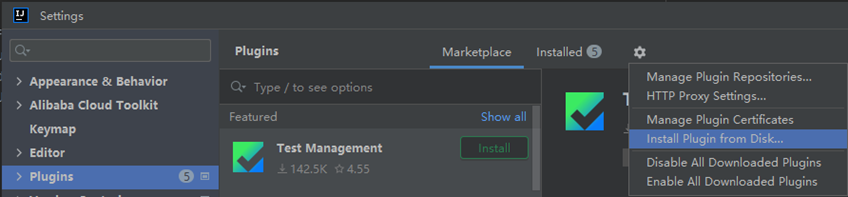

  3. Plugins区域单击 ,再单击Install Plugin from Disk...
  4. Choose Plugin File对话框中选择离线安装包(不用解压),并按照IntelliJ IDEA安装页面的提示,完成后续安装步骤。


说明:若当前您想要安装插件的IntelliJ IDE已经在桌面打开,则进入插件市场搜索Huawei Cloud API,进入插件详情页,在右上角会识别到本地已经打开的IDE,点击相应按钮,在弹出的IDE窗口中点击ok,则IDE后台会开始安装相应版本的API插件。

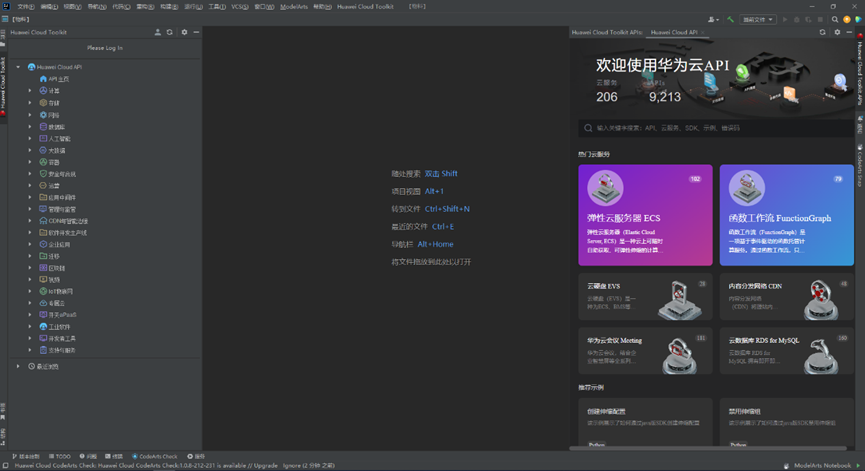

安装验证:在IntelliJ系列平台上安装插件成功后在左侧的导航栏中可以看到Huawei Cloud Toolkit图标,点击后面板会出现Huawei Cloud API的字样,则说明安装成功。

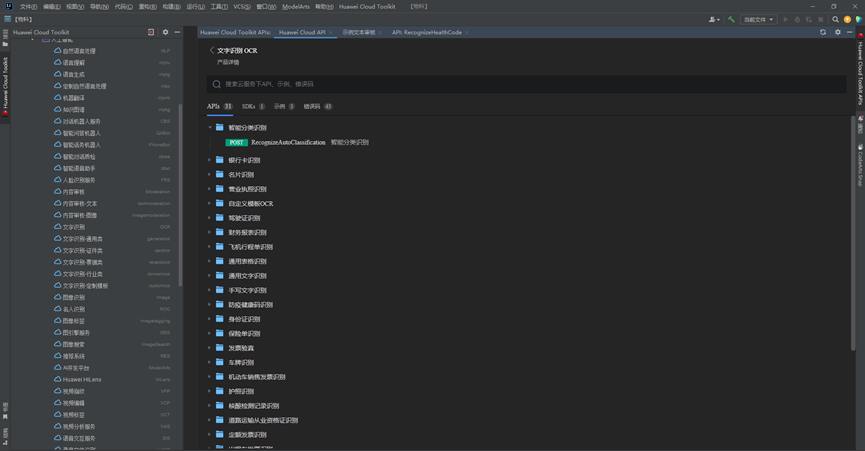

3.2      API列表


左侧展示API列表,可以查询所有API,目前云服务206APIs9213


华为云提供了文字识别服务端SDK,您可以直接集成服务端SDK来调用文字识别服务的相关API,从而实现对文字识别服务的快速操作。

该示例展示了如何通过goSDK实现文字识别。

前期准备:

已注册华为云,并完成 实名认证 。

已订阅文字识别服务。

已具备开发环境,支持go 1.14及其以上版本。

已获取华为云账号对应的Access KeyAK)和Secret Access KeySK)。请在华为云控制台“我的凭证 > 访问密钥”页面上创建和查看您的AK/SK。具体请参见访问密钥 。https://support.huaweicloud.cn/usermanual-ca/zh-cn_topic_0046606340.html

已获取文字识别服务对应区域的项目ID,请在华为云控制台“我的凭证 > API凭证”页面上查看项目ID。具体请参见 API凭证。https://support.huaweicloud.cn/usermanual-ca/ca_01_0002.html

环境配置:

// 启用go module

export GO111MODULE=on

export GONOSUMDB=*

//若下载不了sdk,则需要设置源

export GOPROXY=https://repo.huaweicloud.cn/repository/goproxy/,direct

安装SDK及代码依赖:

// 安装华为云Go

go get -u github.com/huaweicloud/huaweicloud-sdk-go-v3

// 安装依赖

go get github.com/json-iterator/go

go get github.com/huaweicloud/huaweicloud-sdk-go-v3/core/auth/signer@v0.1.2

go get github.com/huaweicloud/huaweicloud-sdk-go-v3/core/auth/provider@v0.1.2

go get github.com/huaweicloud/huaweicloud-sdk-go-v3/core/region@v0.1.2

4      AI文字识别服务文字识别示例

4.1      go版本

导入依赖模块

import (

       "fmt"

       "github.com/huaweicloud/huaweicloud-sdk-go-v3/core/auth/basic"

       ocr "github.com/huaweicloud/huaweicloud-sdk-go-v3/services/ocr/v1"

       "github.com/huaweicloud/huaweicloud-sdk-go-v3/services/ocr/v1/model"

       region "github.com/huaweicloud/huaweicloud-sdk-go-v3/services/ocr/v1/region"

)

初始化认证信息以及文字识别服务的客户端

ak := "<YOUR AK>"

sk := "<YOUR SK>"

regionName := "<YOUR REGION NAME>"

imageBase64 := "<YOUR IMAGE BASE64>"

// 初始化认证信息

auth := basic.NewCredentialsBuilder().

    WithAk(ak).

    WithSk(sk).

    Build()

// 获取服务调用client

client := ocr.NewOcrClient(

    ocr.OcrClientBuilder().

        WithRegion(region.ValueOf(regionName)).

        WithCredential(auth).

        Build())

相关参数说明如下

ak:华为云账号Access Key

sk:华为云账号Secret Access Key

service region: 服务所在区域名称,例如:

cn-north-1 北京一

cn-north-4 北京四

CN_EAST_3 上海一

CN_SOUTH_1 华南广州

6.SDK demo代码解析

通用文字识别

request := &model.RecognizeGeneralTextRequest{}

quickModeGeneralTextRequestBody := true

detectDirectionGeneralTextRequestBody := true

imageGeneralTextRequestBody := imageBase64

request.Body = &model.GeneralTextRequestBody{

    QuickMode:       &quickModeGeneralTextRequestBody,

    DetectDirection: &detectDirectionGeneralTextRequestBody,

    Image:           &imageGeneralTextRequestBody,

}

response, err := client.RecognizeGeneralText(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}

通用表格识别

request := &model.RecognizeGeneralTableRequest{}

returnExcelGeneralTableRequestBody := true

returnConfidenceGeneralTableRequestBody := true

returnTextLocationGeneralTableRequestBody := true

imageGeneralTableRequestBody := imageBase64

request.Body = &model.GeneralTableRequestBody{

    ReturnExcel:        &returnExcelGeneralTableRequestBody,

    ReturnConfidence:   &returnConfidenceGeneralTableRequestBody,

    ReturnTextLocation: &returnTextLocationGeneralTableRequestBody,

    Image:              &imageGeneralTableRequestBody,

}

response, err := client.RecognizeGeneralTable(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}

身份证识别

request := &model.RecognizeIdCardRequest{}

returnVerificationIdCardRequestBody := true

sideIdCardRequestBody := "front"

imageIdCardRequestBody := imageBase64

request.Body = &model.IdCardRequestBody{

    ReturnVerification: &returnVerificationIdCardRequestBody,

    Side:               &sideIdCardRequestBody,

    Image:              &imageIdCardRequestBody,

}

response, err := client.RecognizeIdCard(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}

银行卡识别

request := &model.RecognizeBankcardRequest{}

imageBankcardRequestBody := imageBase64

request.Body = &model.BankcardRequestBody{

    Image: &imageBankcardRequestBody,

}

response, err := client.RecognizeBankcard(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



智能分类识别

request := &model.RecognizeAutoClassificationRequest{}

imageAutoClassificationRequestBody := imageBase64

request.Body = &model.AutoClassificationRequestBody{

    Image: &imageAutoClassificationRequestBody,

}

response, err := client.RecognizeAutoClassification(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



增值税发票识别

request := &model.RecognizeVatInvoiceRequest{}

advancedModeVatInvoiceRequestBody := true

imageVatInvoiceRequestBody := imageBase64

request.Body = &model.VatInvoiceRequestBody{

    AdvancedMode: &advancedModeVatInvoiceRequestBody,

    Image:        &imageVatInvoiceRequestBody,

}

response, err := client.RecognizeVatInvoice(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



定额发票识别

request := &model.RecognizeQuotaInvoiceRequest{}

imageQuotaInvoiceRequestBody := imageBase64

request.Body = &model.QuotaInvoiceRequestBody{

    Image: &imageQuotaInvoiceRequestBody,

}

response, err := client.RecognizeQuotaInvoice(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



手写文字识别

request := &model.RecognizeHandwritingRequest{}

detectDirectionHandwritingRequestBody := true

charSetHandwritingRequestBody := "digit"

quickModeHandwritingRequestBody := true

imageHandwritingRequestBody := imageBase64

request.Body = &model.HandwritingRequestBody{

    DetectDirection: &detectDirectionHandwritingRequestBody,

    CharSet:         &charSetHandwritingRequestBody,

    QuickMode:       &quickModeHandwritingRequestBody,

    Image:           &imageHandwritingRequestBody,

}

response, err := client.RecognizeHandwriting(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



行驶证识别

request := &model.RecognizeVehicleLicenseRequest{}

returnIssuingAuthorityVehicleLicenseRequestBody := true

sideVehicleLicenseRequestBody := "front"

imageVehicleLicenseRequestBody := imageBase64

request.Body = &model.VehicleLicenseRequestBody{

    ReturnIssuingAuthority: &returnIssuingAuthorityVehicleLicenseRequestBody,

    Side:                   &sideVehicleLicenseRequestBody,

    Image:                  &imageVehicleLicenseRequestBody,

}

response, err := client.RecognizeVehicleLicense(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



道路运输证识别

request := &model.RecognizeTransportationLicenseRequest{}

imageTransportationLicenseRequestBody := imageBase64

request.Body = &model.TransportationLicenseRequestBody{

    Image: &imageTransportationLicenseRequestBody,

}

response, err := client.RecognizeTransportationLicense(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



出租车发票识别

request := &model.RecognizeTaxiInvoiceRequest{}

imageTaxiInvoiceRequestBody := imageBase64

request.Body = &model.TaxiInvoiceRequestBody{

    Image: &imageTaxiInvoiceRequestBody,

}

response, err := client.RecognizeTaxiInvoice(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



车辆通行费发票识别

request := &model.RecognizeTollInvoiceRequest{}

imageTollInvoiceRequestBody := imageBase64

request.Body = &model.TollInvoiceRequestBody{

    Image: &imageTollInvoiceRequestBody,

}

response, err := client.RecognizeTollInvoice(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



机动车销售发票识别

request := &model.RecognizeMvsInvoiceRequest{}

imageMvsInvoiceRequestBody := imageBase64

request.Body = &model.MvsInvoiceRequestBody{

    Image: &imageMvsInvoiceRequestBody,

}

response, err := client.RecognizeMvsInvoice(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



车牌识别

request := &model.RecognizeLicensePlateRequest{}

imageLicensePlateRequestBody := imageBase64

request.Body = &model.LicensePlateRequestBody{

    Image: &imageLicensePlateRequestBody,

}

response, err := client.RecognizeLicensePlate(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



飞机行程单识别

request := &model.RecognizeFlightItineraryRequest{}

imageFlightItineraryRequestBody := imageBase64

request.Body = &model.FlightItineraryRequestBody{

    Image: &imageFlightItineraryRequestBody,

}

response, err := client.RecognizeFlightItinerary(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



营业执照识别

request := &model.RecognizeBusinessLicenseRequest{}

imageBusinessLicenseRequestBody := imageBase64

request.Body = &model.BusinessLicenseRequestBody{

    Image: &imageBusinessLicenseRequestBody,

}

response, err := client.RecognizeBusinessLicense(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



网络图片识别

request := &model.RecognizeWebImageRequest{}

var listExtractTypebody = []string{

    "contact_info",

    "image_size",

}

detectDirectionWebImageRequestBody := true

imageWebImageRequestBody := imageBase64

request.Body = &model.WebImageRequestBody{

    ExtractType:     &listExtractTypebody,

    DetectDirection: &detectDirectionWebImageRequestBody,

    Image:           &imageWebImageRequestBody,

}

response, err := client.RecognizeWebImage(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



驾驶证识别

request := &model.RecognizeDriverLicenseRequest{}

returnIssuingAuthorityDriverLicenseRequestBody := true

sideDriverLicenseRequestBody := "front"

imageDriverLicenseRequestBody := imageBase64

request.Body = &model.DriverLicenseRequestBody{

    ReturnIssuingAuthority: &returnIssuingAuthorityDriverLicenseRequestBody,

    Side:                   &sideDriverLicenseRequestBody,

    Image:                  &imageDriverLicenseRequestBody,

}

response, err := client.RecognizeDriverLicense(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



名片识别

request := &model.RecognizeBusinessCardRequest{}

returnAdjustedImageBusinessCardRequestBody := true

detectDirectionBusinessCardRequestBody := true

imageBusinessCardRequestBody := imageBase64

request.Body = &model.BusinessCardRequestBody{

    ReturnAdjustedImage: &returnAdjustedImageBusinessCardRequestBody,

    DetectDirection:     &detectDirectionBusinessCardRequestBody,

    Image:               &imageBusinessCardRequestBody,

}

response, err := client.RecognizeBusinessCard(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



火车票识别

request := &model.RecognizeTrainTicketRequest{}

imageTrainTicketRequestBody := imageBase64

request.Body = &model.TrainTicketRequestBody{

    Image: &imageTrainTicketRequestBody,

}

response, err := client.RecognizeTrainTicket(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



VIN码识别

request := &model.RecognizeVinRequest{}

imageVinRequestBody := imageBase64

request.Body = &model.VinRequestBody{

    Image: &imageVinRequestBody,

}

response, err := client.RecognizeVin(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



护照识别

request := &model.RecognizePassportRequest{}

imagePassportRequestBody := imageBase64

request.Body = &model.PassportRequestBody{

    Image: &imagePassportRequestBody,

}

response, err := client.RecognizePassport(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



保险单卡识别

request := &model.RecognizeInsurancePolicyRequest{}

detectDirectionInsurancePolicyRequestBody := true

imageInsurancePolicyRequestBody := imageBase64

request.Body = &model.InsurancePolicyRequestBody{

    DetectDirection: &detectDirectionInsurancePolicyRequestBody,

    Image:           &imageInsurancePolicyRequestBody,

}

response, err := client.RecognizeInsurancePolicy(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}



道路运输从业资格证识别

request := &model.RecognizeQualificationCertificateRequest{}

imageQualificationCertificateRequestBody := imageBase64

request.Body = &model.QualificationCertificateRequestBody{

    Image: &imageQualificationCertificateRequestBody,

}

response, err := client.RecognizeQualificationCertificate(request)

if err == nil {

    fmt.Printf("%+v\n", response)

} else {

    fmt.Println(err)

}

4.2      python版本

开始使用

导入依赖模块

from huaweicloudsdkcore.auth.credentials import BasicCredentials

from huaweicloudsdkocr.v1.region.ocr_region import OcrRegion

from huaweicloudsdkcore.exceptions import exceptions

from huaweicloudsdkocr.v1 import *

初始化认证信息

def get_credential():

    return BasicCredentials(ak, sk)

相关参数说明如下所示:



ak:华为云账号Access Key

sk:华为云账号Secret Access Key

初始化文字识别服务的客户端

def get_client():

    return OcrClient.new_builder(OcrClient)

        .with_credentials(credentials)

        .with_region(OcrRegion.CN_NORTH_4)

        .build()

相关参数说明如下所示:

service region: 服务所在区域,例如:

CN_NORTH_1 北京一

CN_NORTH_4 北京四

CN_EAST_3 上海一

CN_SOUTH_1 华南广州

SDK demo代码解析

通用文字识别

def recognize_general_text_request():

    try:

        request = RecognizeGeneralTextRequest()

        request.body = GeneralTextRequestBody(

            image=image_base64

        )

        response = client.recognize_general_text(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

 通用表格识别

def recognize_general_table_request():

    try:

        request = RecognizeGeneralTableRequest()

        request.body = GeneralTableRequestBody(

            image=image_base64

        )

        response = client.recognize_general_table(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

身份证识别

def recognize_id_card_request():

    try:

        request = RecognizeIdCardRequest()

        request.body = IdCardRequestBody(

            image=image_base64

        )

        response = client.recognize_id_card(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

银行卡识别

def recognize_bankcard_request():

    try:

        request = RecognizeBankcardRequest()

        request.body = BankcardRequestBody(

            image=image_base64

        )

        response = client.recognize_bankcard(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

智能分类识别

def recognize_auto_classification_request():

    try:

        request = RecognizeAutoClassificationRequest()

        request.body = AutoClassificationRequestBody(

            image=image_base64

        )

        response = client.recognize_auto_classification(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

增值税发票识别

def recognize_vat_invoice_request():

    try:

        request = RecognizeVatInvoiceRequest()

        request.body = VatInvoiceRequestBody(

            image=image_base64

        )

        response = client.recognize_vat_invoice(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

定额发票识别

def recognize_quota_invoice_request():

    try:

        request = RecognizeQuotaInvoiceRequest()

        request.body = QuotaInvoiceRequestBody(

            image=image_base64

        )

        response = client.recognize_quota_invoice(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

手写文字识别

def recognize_handwriting_request():

    try:

        request = RecognizeHandwritingRequest

        request.body = HandwritingRequestBody(

            image=image_base64

        )

        response = client.recognize_handwriting(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

行驶证识别

def recognize_vehicle_license_request():

    try:

        request = RecognizeIdCardRequest()

        request.body = VehicleLicenseRequestBody(

            image=image_base64

        )

        response = client.recognize_vehicle_license(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

道路运输证识别

def recognize_transportation_license_request():

    try:

        request = RecognizeTransportationLicenseRequest()

        request.body = TransportationLicenseRequestBody(

            image=image_base64

        )

        response = client.recognize_transportation_license(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

出租车发票识别

def recognize_taxi_invoice_request():

    try:

        request = RecognizeTaxiInvoiceRequest()

        request.body = TaxiInvoiceRequestBody(

            image=image_base64

        )

        response = client.recognize_taxi_invoice(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

车辆通行费发票识别

def recognize_toll_invoice_request():

    try:

        request = RecognizeTollInvoiceRequest()

        request.body = TollInvoiceRequestBody(

            image=image_base64

        )

        response = client.recognize_toll_invoice(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

机动车销售发票识别

def recognize_mvs_invoice_request():

    try:

        request = RecognizeMvsInvoiceRequest()

        request.body = MvsInvoiceRequestBody(

            image=image_base64

        )

        response = client.recognize_mvs_invoice(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

车牌识别

def recognize_license_plate_request():

    try:

        request = RecognizeLicensePlateRequest()

        request.body = LicensePlateRequestBody(

            image=image_base64

        )

        response = client.recognize_license_plate(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

飞机行程单识别

def recognize_flight_itinerary_request():

    try:

        request = RecognizeFlightItineraryRequest()

        request.body = FlightItineraryRequestBody(

            image=image_base64

        )

        response = client.recognize_flight_itinerary(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

营业执照识别

def recognize_business_license_request():

    try:

        request = RecognizeBusinessLicenseRequest()

        request.body = BusinessLicenseRequestBody(

            image=image_base64

        )

        response = client.recognize_business_license(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

网络图片识别

def recognize_web_image_request():

    try:

        request = RecognizeWebImageRequest()

        request.body = WebImageRequestBody(

            image=image_base64

        )

        response = client.recognize_web_image(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

驾驶证识别

def recognize_driver_license_request():

    try:

        request = RecognizeDriverLicenseRequest()

        request.body = DriverLicenseRequestBody(

            image=image_base64

        )

        response = client.recognize_driver_license(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

名片识别

def recognize_business_card_request():

    try:

        request = RecognizeBusinessCardRequest()

        request.body = BusinessCardRequestBody(

            image=image_base64

        )

        response = client.recognize_business_card(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

火车票识别

def recognize_train_ticket_request():

    try:

        request = RecognizeTrainTicketRequest()

        request.body = TrainTicketRequestBody(

            image=image_base64

        )

        response = client.recognize_train_ticket(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

VIN码识别

def recognize_vin_request():

    try:

        request = RecognizeVinRequest()

        request.body = VinRequestBody(

            image=image_base64

        )

        response = client.recognize_vin(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

护照识别

def recognize_passport_request():

    try:

        request = RecognizePassportRequest()

        request.body = PassportRequestBody(

            image=image_base64

        )

        response = client.recognize_passport(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

保险单识别

def recognize_insurance_policy_request():

    try:

        request = RecognizeInsurancePolicyRequest()

        request.body = InsurancePolicyRequestBody(

            image=image_base64

        )

        response = client.recognize_insurance_policy(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

道路运输从业资格证识别

def recognize_transportation_qualification_certificate_request():

    try:

        request = RecognizeQualificationCertificateRequest()

        request.body = QualificationCertificateRequestBody(

            image=image_base64

        )

        response = client.recognize_transportation_qualification_certificate(request)

        print(response)

    except exceptions.ClientRequestException as e:

        print(e.status_code)

        print(e.request_id)

        print(e.error_code)

        print(e.error_msg)

4.3      java版本

开始使用

导入依赖模块

import com.huaweicloud.sdk.core.auth.ICredential;

import com.huaweicloud.sdk.core.auth.BasicCredentials;

import com.huaweicloud.sdk.core.exception.ConnectionException;

import com.huaweicloud.sdk.core.exception.RequestTimeoutException;

import com.huaweicloud.sdk.core.exception.ServiceResponseException;



import com.huaweicloud.sdk.ocr.v1.region.OcrRegion;

import com.huaweicloud.sdk.ocr.v1.*;

import com.huaweicloud.sdk.ocr.v1.model.*;

初始化认证信息

public static ICredential getCredential(String ak, String sk) {

    return new BasicCredentials().withAk(ak).withSk(sk);

}

相关参数说明如下所示:



ak:华为云账号Access Key

sk:华为云账号Secret Access Key

初始化文字识别服务的客户端

public static OcrClient getClient(Region region, ICredential auth) {

    return OcrClient.newBuilder().withCredential(auth).withRegion(region).build();

}

相关参数说明如下所示:

service region: 服务所在区域,例如:

CN_NORTH_1 北京一

CN_NORTH_4 北京四

CN_EAST_3 上海一

CN_SOUTH_1 华南广州

SDK demo代码解析

通用文字识别

private static void generalText(OcrClient ocrClient, String image) {

    RecognizeGeneralTextRequest recognizeGeneralTextRequest = new RecognizeGeneralTextRequest();

    GeneralTextRequestBody requestBody = new GeneralTextRequestBody();

    requestBody.setImage(image);

    recognizeGeneralTextRequest.setBody(requestBody);

    try {

        RecognizeGeneralTextResponse textResponse = ocrClient.recognizeGeneralText(recognizeGeneralTextRequest);

        System.out.println(textResponse.getResult());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

通用表格识别

private static void generalTable(OcrClient ocrClient, String image) {

    RecognizeGeneralTableRequest request = new RecognizeGeneralTableRequest();

    GeneralTableRequestBody requestBody = new GeneralTableRequestBody();

    requestBody.withImage(image);

    request.withBody(requestBody);

    try {

        RecognizeGeneralTableResponse response = ocrClient.recognizeGeneralTable(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

身份证识别

private static void idCard(OcrClient ocrClient, String image) {

    RecognizeIdCardRequest request = new RecognizeIdCardRequest();

    IdCardRequestBody body = new IdCardRequestBody();

    body.withReturnVerification(true);

    body.withSide("front");

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeIdCardResponse response = ocrClient.recognizeIdCard(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

银行卡识别

private static void bankcard(OcrClient ocrClient, String image) {

    RecognizeBankcardRequest recognizeBankcardRequest = new RecognizeBankcardRequest();

    BankcardRequestBody bankcardRequestBody = new BankcardRequestBody();

    bankcardRequestBody.setImage(image);

    recognizeBankcardRequest.setBody(bankcardRequestBody);

    try {

        RecognizeBankcardResponse response = ocrClient.recognizeBankcard(recognizeBankcardRequest);

        System.out.println(response);

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

智能分类识别

private static void autoClassification(OcrClient ocrClient, String image) {

    RecognizeAutoClassificationRequest request = new RecognizeAutoClassificationRequest();

    AutoClassificationRequestBody requestBody = new AutoClassificationRequestBody();

    requestBody.withImage(image);

    request.setBody(requestBody);

    try {

        RecognizeAutoClassificationResponse response = ocrClient.recognizeAutoClassification(request);

        System.out.println(response);

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

增值税发票识别

private static void vatInvoice(OcrClient ocrClient, String image) {

    RecognizeVatInvoiceRequest request = new RecognizeVatInvoiceRequest();

    VatInvoiceRequestBody body = new VatInvoiceRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeVatInvoiceResponse response = ocrClient.recognizeVatInvoice(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

定额发票识别

private static void quotaInvoice(OcrClient ocrClient, String image) {

    RecognizeQuotaInvoiceRequest request = new RecognizeQuotaInvoiceRequest();

    QuotaInvoiceRequestBody body = new QuotaInvoiceRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeQuotaInvoiceResponse response = ocrClient.recognizeQuotaInvoice(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

手写文字识别

private static void handwriting(OcrClient ocrClient, String image) {

    RecognizeHandwritingRequest request = new RecognizeHandwritingRequest();

    HandwritingRequestBody body = new HandwritingRequestBody();

    body.withDetectDirection(true);

    body.withQuickMode(true);

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeHandwritingResponse response = ocrClient.recognizeHandwriting(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

行驶证识别

private static void vehicleLicense(OcrClient ocrClient, String image) {

    RecognizeVehicleLicenseRequest request = new RecognizeVehicleLicenseRequest();

    VehicleLicenseRequestBody body = new VehicleLicenseRequestBody();

    body.withReturnIssuingAuthority(true);

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeVehicleLicenseResponse response = ocrClient.recognizeVehicleLicense(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

道路运输证识别

private static void transportationLicense(OcrClient ocrClient, String image) {

    RecognizeTransportationLicenseRequest request = new RecognizeTransportationLicenseRequest();

    TransportationLicenseRequestBody body = new TransportationLicenseRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeTransportationLicenseResponse response = ocrClient.recognizeTransportationLicense(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

出租车发票识别

private static void taxiInvoice(OcrClient ocrClient, String image) {

    RecognizeTaxiInvoiceRequest request = new RecognizeTaxiInvoiceRequest();

    TaxiInvoiceRequestBody body = new TaxiInvoiceRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeTaxiInvoiceResponse response = ocrClient.recognizeTaxiInvoice(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

车辆通行费发票识别

private static void tollInvoice(OcrClient ocrClient, String image) {

    RecognizeTollInvoiceRequest request = new RecognizeTollInvoiceRequest();

    TollInvoiceRequestBody body = new TollInvoiceRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeTollInvoiceResponse response = ocrClient.recognizeTollInvoice(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

机动车销售发票识别

private static void mvsInvoice(OcrClient ocrClient, String image) {

    RecognizeMvsInvoiceRequest request = new RecognizeMvsInvoiceRequest();

    MvsInvoiceRequestBody body = new MvsInvoiceRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeMvsInvoiceResponse response = ocrClient.recognizeMvsInvoice(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

车牌识别

private static void licensePlate(OcrClient ocrClient, String image) {

    RecognizeLicensePlateRequest request = new RecognizeLicensePlateRequest();

    LicensePlateRequestBody body = new LicensePlateRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeLicensePlateResponse response = ocrClient.recognizeLicensePlate(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

飞机行程单识别

private static void flightItinerary(OcrClient ocrClient, String image) {

    RecognizeFlightItineraryRequest request = new RecognizeFlightItineraryRequest();

    FlightItineraryRequestBody body = new FlightItineraryRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeFlightItineraryResponse response = ocrClient.recognizeFlightItinerary(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

营业执照识别

private static void businessLicense(OcrClient ocrClient, String image) {

    RecognizeBusinessLicenseRequest request = new RecognizeBusinessLicenseRequest();

    BusinessLicenseRequestBody body = new BusinessLicenseRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeBusinessLicenseResponse response = ocrClient.recognizeBusinessLicense(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

网络图片识别

private static void webImage(OcrClient ocrClient, String image) {

    RecognizeWebImageRequest request = new RecognizeWebImageRequest();

    WebImageRequestBody body = new WebImageRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeWebImageResponse response = ocrClient.recognizeWebImage(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

驾驶证识别

private static void driverLicense(OcrClient ocrClient, String image) {

    RecognizeDriverLicenseRequest request = new RecognizeDriverLicenseRequest();

    DriverLicenseRequestBody body = new DriverLicenseRequestBody();

    body.withReturnIssuingAuthority(true);

    body.withSide("front");

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeDriverLicenseResponse response = ocrClient.recognizeDriverLicense(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

名片识别

private static void businessCard(OcrClient ocrClient, String image) {

    RecognizeBusinessCardRequest request = new RecognizeBusinessCardRequest();

    BusinessCardRequestBody body = new BusinessCardRequestBody();

    body.withDetectDirection(true);

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeBusinessCardResponse response = ocrClient.recognizeBusinessCard(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

火车票识别

private static void trainTicket(OcrClient ocrClient, String image) {

    RecognizeTrainTicketRequest request = new RecognizeTrainTicketRequest();

    TrainTicketRequestBody body = new TrainTicketRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeTrainTicketResponse response = ocrClient.recognizeTrainTicket(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

VIN码识别

private static void vin(OcrClient ocrClient, String image) {

    RecognizeVinRequest request = new RecognizeVinRequest();

    VinRequestBody body = new VinRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeVinResponse response = ocrClient.recognizeVin(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

护照识别

private static void passport(OcrClient ocrClient, String image) {

    RecognizePassportRequest request = new RecognizePassportRequest();

    PassportRequestBody body = new PassportRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizePassportResponse response = ocrClient.recognizePassport(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

保险单识别

private static void insurancePolicy(OcrClient ocrClient, String image) {

    RecognizeInsurancePolicyRequest request = new RecognizeInsurancePolicyRequest();

    InsurancePolicyRequestBody body = new InsurancePolicyRequestBody();

    body.withDetectDirection(true);

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeInsurancePolicyResponse response = ocrClient.recognizeInsurancePolicy(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

        LOGGER.error(String.valueOf(e.getHttpStatusCode()));

        LOGGER.error(e.getErrorCode());

        LOGGER.error(e.getErrorMsg());

    }

}

从业资格证识别

private static void qualificationCertificate(OcrClient ocrClient, String image) {

    RecognizeQualificationCertificateRequest request = new RecognizeQualificationCertificateRequest();

    QualificationCertificateRequestBody body = new QualificationCertificateRequestBody();

    body.withImage(image);

    request.withBody(body);

    try {

        RecognizeQualificationCertificateResponse response = ocrClient.recognizeQualificationCertificate(request);

        System.out.println(response.toString());

    } catch (ConnectionException | RequestTimeoutException e) {

        LOGGER.error(e.toString());

    } catch (ServiceResponseException e) {

       LOGGER.error(String.valueOf(e.getHttpStatusCode()));

       LOGGER.error(e.getErrorCode());

       LOGGER.error(e.getErrorMsg());

    }

}

5      体验馆

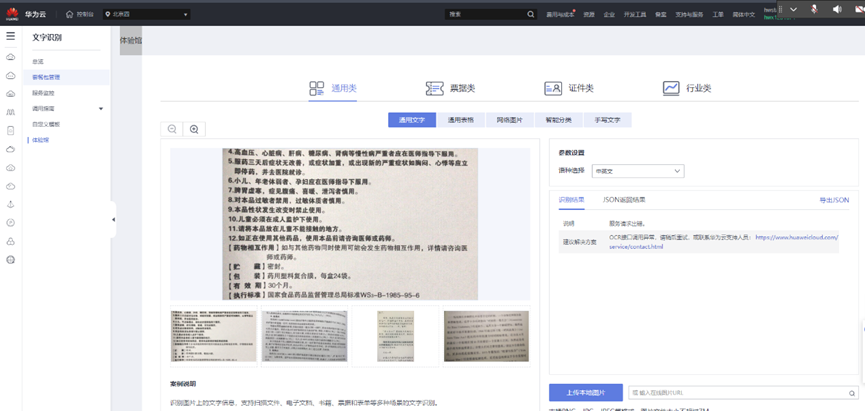

5.1      通用类

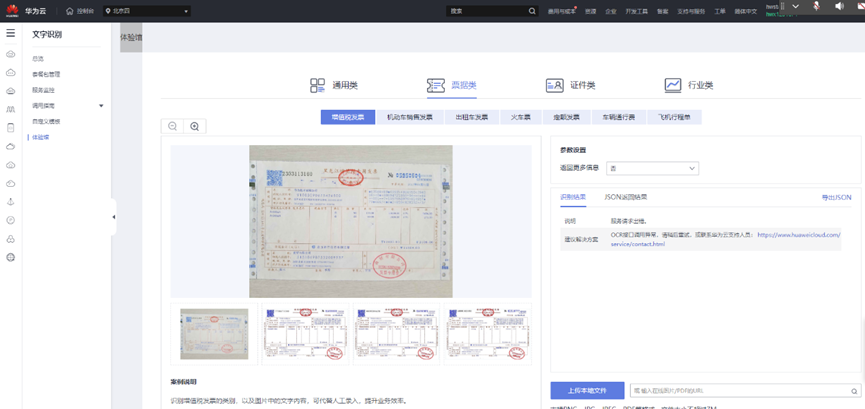

5.2      票据类

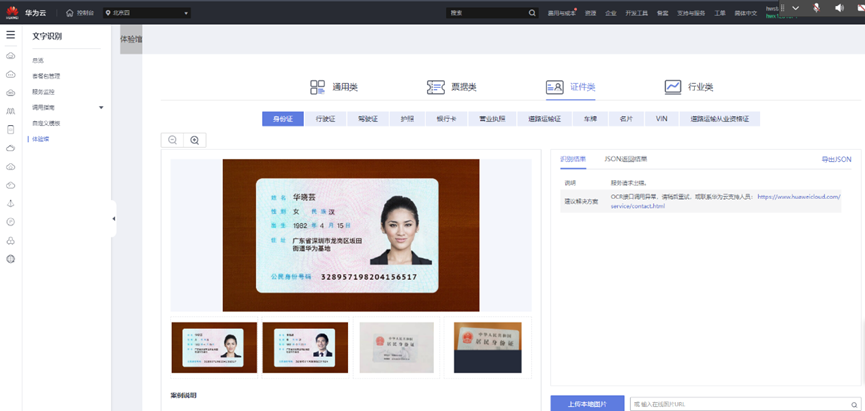

5.3      证件类

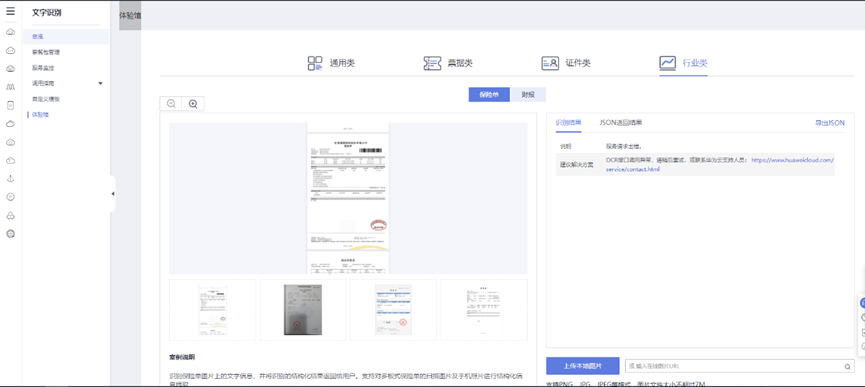

5.4      行业类


6      体验插件课程

https://classroom.devcloud.huaweicloud.cn/MOOCCourseStudy/join/ef4ebc3dbaa246ff995f75022cac8cb9

识别下方二维码立即体验

【版权声明】本文为华为云社区用户原创内容,转载时必须标注文章的来源(华为云社区)、文章链接、文章作者等基本信息, 否则作者和本社区有权追究责任。如果您发现本社区中有涉嫌抄袭的内容,欢迎发送邮件进行举报,并提供相关证据,一经查实,本社区将立刻删除涉嫌侵权内容,举报邮箱: cloudbbs@huaweicloud.com
  • 点赞
  • 收藏
  • 关注作者

评论(0

0/1000
抱歉,系统识别当前为高风险访问,暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称,即可参与社区互动!

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。
