华为云classroom 发表于 2023/12/18 16:24:56 2023/12/18
【摘要】 云服务、API、SDK，调试，查看，我都行 阅读短文您可以学习到：人工智能AI人脸的识别、检测、搜索、比对1      Classroom和Toolkit的关系1.1      Classroom的简介classroom是基于华为云的云上软件教学服务，支持初级开发者和高校师生实现备课、上课、作业、考试、实验、实训等全教学流程的线上教学，提供多类习题自动判题、企业级DevOps实训、免费在线习...

云服务、API、SDK，调试，查看，我都行

阅读短文您可以学习到：人工智能AI人脸的识别、检测、搜索、比对

1      Classroom和Toolkit的关系

1.1      Classroom的简介

classroom是基于华为云的云上软件教学服务，支持初级开发者和高校师生实现备课、上课、作业、考试、实验、实训等全教学流程的线上教学，提供多类习题自动判题、企业级DevOps实训、免费在线习题库等众多高级特性辅助进行数字化教学转型。

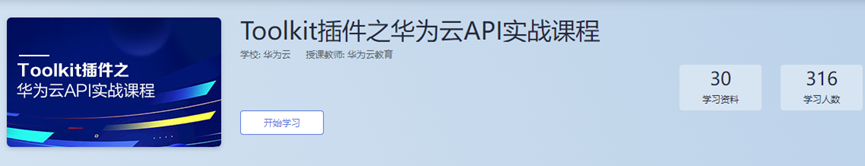

1.2      Toolkit插件之华为云API实战课程

2      IntelliJ IDEA 之API插件介绍

API插件支持 VS Code IDE、IntelliJ IDEA等平台、以及华为云自研 CodeArts IDE，基于华为云服务提供的能力，帮助开发者更高效、便捷的搭建应用。API插件关联华为云服务下的 API Explorer、DevStar、CodeLabs、SDK 中心和 CLI 中心产品，致力于为开发者提供更稳定、快速、安全的编程体验。

在本插件中，我们提供了但不局限于如下的功能：

对接华为云API开放平台，支持用户检索API、查看API文档、调试API、以及提供SDK示例代码供用户学习如何使用API。

提供华为云SDK代码片段补全功能，SDK依赖包自动引入，加速用户集成华为云API。

对接华为云开发体验馆Codelabs，提供500+云服务代码示例，向导式教程帮助用户快速学习。

说明：

在IntelliJ IDEA等系列平台和VS Code IDE，华为云API插件的名称是Huawei Cloud API。而在CodeArts IDE，API插件是IDE原生内置的，名称是华为云API开发套件。

API插件在IntelliJ IDEA等系列平台和VS Code IDE的使用依赖底座插件，请提前安装底座插件。

3      API插件安装--IntelliJ IDEA

3.1    IntelliJ IDEA等平台

安装准备：下载并安装JDK1.8或更高版本。下载并安装IntelliJ IDEA 2020.2或更高版本。

须知：IntellIj平台同时支撑包括Goland、Pycharm等在内的IDE，若在其它相关IDE上开发，请下载配置好对应语言的编译器或者解释器。这里以IDEA为例介绍IntelliJ平台插件的安装流程，其他IntelliJ系列的IDE请参考IDEA。

开始安装：

您可以在直接在IDE插件市场或者直接在JetBrains插件市场下载离线包安装。

https://developer.huaweicloud.cn/develop/toolkit.html

IDE安装

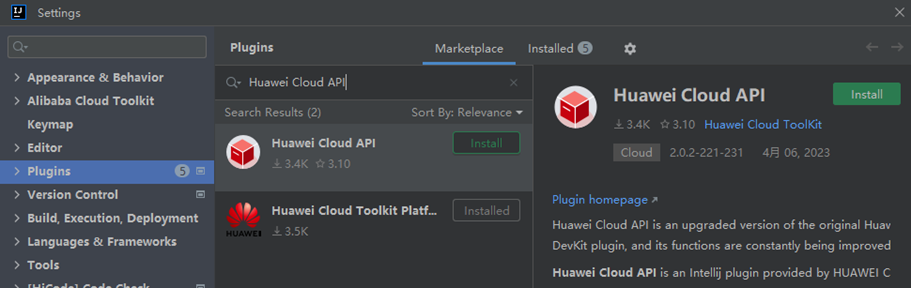

  1. 在IntelliJ IDEA顶部菜单栏中选择File > Settings，在Settings对话框的左侧导航栏中单击Plugins。
  2. Plugins区域单击Marketplace,在搜索栏中输入Huawei Cloud API。
  3. Search Results区域会出现Huawei Cloud API，单击Install，完成后重启IDE。


离线包安装：

  1. 进入插件市场搜索Huawei Cloud API，进入插件详情页，在Versions页签下选择想要版本的API插件，点击Download下载离线的插件压缩包保存到本地。。
  2. 在IntelliJ IDEA顶部菜单栏中选择File > Settings，在Settings对话框的左侧导航栏中单击Plugins。

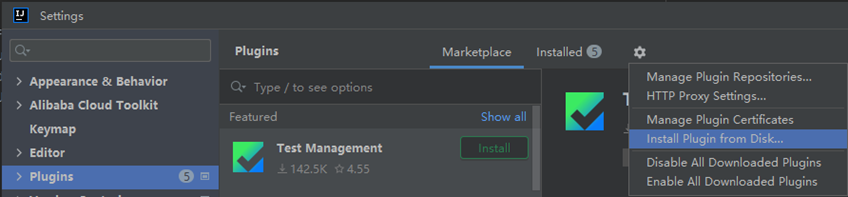

  3. 在Plugins区域单击 ，再单击Install Plugin from Disk...。
  4. 在Choose Plugin File对话框中选择离线安装包（不用解压），并按照IntelliJ IDEA安装页面的提示，完成后续安装步骤。


说明：若当前您想要安装插件的IntelliJ IDE已经在桌面打开，则进入插件市场搜索Huawei Cloud API，进入插件详情页，在右上角会识别到本地已经打开的IDE，点击相应按钮，在弹出的IDE窗口中点击ok，则IDE后台会开始安装相应版本的API插件。

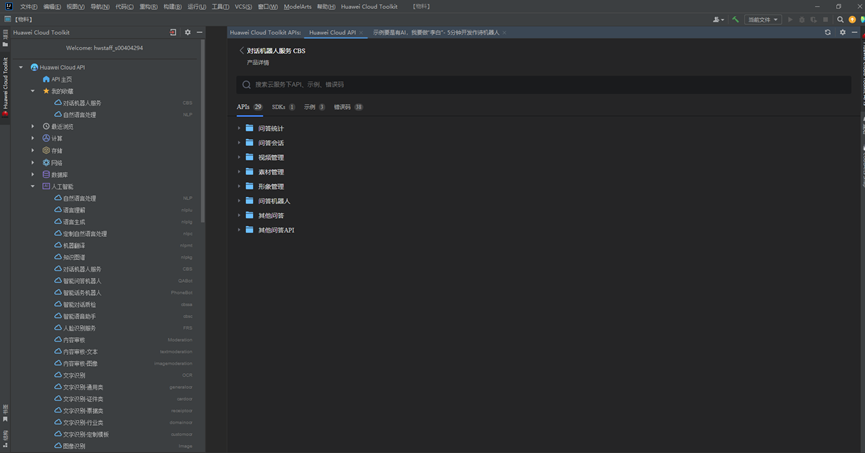

安装验证：在IntelliJ系列平台上安装插件成功后在左侧的导航栏中可以看到Huawei Cloud Toolkit图标，点击后面板会出现Huawei Cloud API的字样，则说明安装成功。

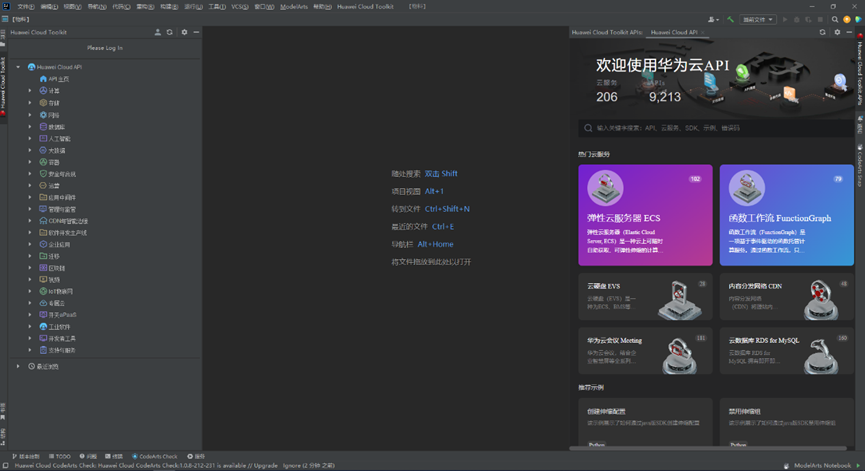

3.2      华为云API


https://developer.huaweicloud.cn/develop/toolkit.html

左侧展示API列表，可以查询所有API，目前云服务206，APIs9213


4      抓住偷偷藏不住的你

4.1      前期准备

华为云提供了人脸识别服务端SDK，您可以直接集成服务端SDK来调用人脸识别服务的相关API，从而实现对人脸识别服务的快速操作。

该示例展示了如何通过Java版SDK实现人脸识别。

开发前准备：

  • 已注册华为云，并完成实名认证 。
  • 已订阅人脸识别服务。
  • 已具备开发环境，支持Java JDK 1.8及其以上版本。
  • 已获取华为云账号对应的Access Key（AK）和Secret Access Key（SK）。请在华为云控制台“我的凭证 > 访问密钥”页面上创建和查看您的AK/SK。具体请参见 访问密钥 。
  • 已获取直播服务对应区域的项目ID，请在华为云控制台“我的凭证 > API凭证”页面上查看项目ID。具体请参见 API凭证。

安装SDK：

您可以通过Maven配置所依赖的人脸识别服务SDK

<dependency>

    <groupId>com.huaweicloud.sdk</groupId>

    <artifactId>huaweicloud-sdk-frs</artifactId>

    <version>3.1.19</version>

</dependency>

开始使用：

导入依赖模块

import com.huaweicloud.sdk.core.auth.ICredential;

import com.huaweicloud.sdk.core.auth.BasicCredentials;

import com.huaweicloud.sdk.core.exception.ConnectionException;

import com.huaweicloud.sdk.core.exception.RequestTimeoutException;

import com.huaweicloud.sdk.core.exception.ServiceResponseException;

//v2版本sdk

import com.huaweicloud.sdk.frs.v2.region.FrsRegion;

import com.huaweicloud.sdk.frs.v2.*;

import com.huaweicloud.sdk.frs.v2.model.*;

初始化认证信息

public static ICredential getCredential(String ak, String sk) {

    return new BasicCredentials()

            .withAk(ak)

            .withSk(sk);

}

相关参数说明如下所示：

ak：华为云账号Access Key。

sk：华为云账号Secret Access Key 。

初始化人脸识别服务的客户端

public static FrsClient getClient(Region region, ICredential auth) {

    // 初始化人脸识别服务的客户端

    return FrsClient.newBuilder()

            .withCredential(auth)

            .withRegion(region) // 选择服务所在区域 FrsRegion.CN_NORTH_4

            .build();

}

相关参数说明如下所示：

service region: 服务所在区域，例如：

CN_NORTH_1 北京一

CN_NORTH_4 北京四

SDK demo代码解析

4.2      人脸识别/检测

DetectFaceByBase64Request detectRequest = new DetectFaceByBase64Request();

FaceDetectBase64Req faceDetectBase64Req = new FaceDetectBase64Req();

faceDetectBase64Req.withImageBase64("/9j/4AAQSkZJRgABAQAAAQABAAD...");

faceDetectBase64Req.withAttributes("2");

detectRequest.setBody(faceDetectBase64Req);

try {

    DetectFaceByBase64Response detectResponse = client.detectFaceByBase64(detectRequest);

    System.out.println(detectResponse.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

4.2.1        人脸比对

CompareFaceByBase64Request compareRequest = new CompareFaceByBase64Request();

FaceCompareBase64Req faceCompareBase64Req = new FaceCompareBase64Req();

faceCompareBase64Req.withImage1Base64("/9j/4AAQSkZJRgABAQAAAQABAAD...");

faceCompareBase64Req.withImage2Base64("/9j/4AAQSkZJRgABAQAAAQABAAD...");

compareRequest.withBody(faceCompareBase64Req);

try {

    CompareFaceByBase64Response compareResponse = client.compareFaceByBase64(compareRequest);

    System.out.println(compareResponse.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

4.2.2        人脸搜索

SearchFaceByBase64Request searchRequest = new SearchFaceByBase64Request();

searchRequest.withFaceSetName("face_set_name");

FaceSearchBase64Req faceSearchBase64Req = new FaceSearchBase64Req();

List<Map<String, String>> listbodySort = new ArrayList<>();

Map<String, String> map = new HashMap<>();

map.put("timestamp","asc");

listbodySort.add(map);

List<String> listbodyReturnFields = new ArrayList<>();

listbodyReturnFields.add("timestamp");

listbodyReturnFields.add("id");

faceSearchBase64Req.withSort(listbodySort);

faceSearchBase64Req.withReturnFields(listbodyReturnFields);

faceSearchBase64Req.withImageBase64("/9j/4AAQSkZJRgABAQAAAQABAAD...");

searchRequest.withBody(faceSearchBase64Req);

try {

    SearchFaceByBase64Response searchResponse = client.searchFaceByBase64(searchRequest);

    System.out.println(searchResponse.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

创建人脸库

CreateFaceSetRequest createFaceSetRequest = new CreateFaceSetRequest();

CreateFaceSetReq createFaceSetReq = new CreateFaceSetReq();

createFaceSetReq.withFaceSetName("face_set_name");

Map<String, TypeInfo> stringTypeInfoMap = new HashMap<>();

TypeInfo typeInfo = new TypeInfo();

typeInfo.withType("long");

stringTypeInfoMap.put("timestamp", typeInfo);

createFaceSetReq.withExternalFields(stringTypeInfoMap);

createFaceSetRequest.withBody(createFaceSetReq);

try {

    CreateFaceSetResponse createFaceSetResponse = client.createFaceSet(createFaceSetRequest);

    System.out.println(createFaceSetResponse.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

查询人脸库

ShowFaceSetRequest showFaceSetRequest = new ShowFaceSetRequest();

showFaceSetRequest.withFaceSetName("face_set_name");

try {

    ShowFaceSetResponse showFaceSetResponse = client.showFaceSet(showFaceSetRequest);

    System.out.println(showFaceSetResponse.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

查询所有人脸库

ShowAllFaceSetsRequest showAllFaceSetsRequest = new ShowAllFaceSetsRequest();

try {

    ShowAllFaceSetsResponse showAllFaceSetsResponse = client.showAllFaceSets(showAllFaceSetsRequest);

    System.out.println(showAllFaceSetsResponse.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

删除人脸库

DeleteFaceSetRequest deleteFaceSetRequest = new DeleteFaceSetRequest();

deleteFaceSetRequest.withFaceSetName("face_set_name");

try {

    DeleteFaceSetResponse deleteFaceSetResponse = client.deleteFaceSet(deleteFaceSetRequest);

    System.out.println(deleteFaceSetResponse.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

添加人脸

//add face

AddFacesByBase64Request addFacesByBase64Request = new AddFacesByBase64Request();

addFacesByBase64Request.withFaceSetName("face_set_name");

AddFacesBase64Req addFacesBase64Req = new AddFacesBase64Req();

addFacesBase64Req.withExternalFields("{\"timestamp\":12}");

addFacesBase64Req.withImageBase64("9j/4AAQSkZJRgABAQAAAQABAAD...");

addFacesByBase64Request.withBody(addFacesBase64Req);

try {

    AddFacesByBase64Response addFacesByBase64Response = client.addFacesByBase64(addFacesByBase64Request);

    System.out.println(addFacesByBase64Response.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

删除人脸

//delete face by faceId

DeleteFaceByFaceIdRequest deleteFaceByFaceIdRequest = new DeleteFaceByFaceIdRequest();

deleteFaceByFaceIdRequest.withFaceSetName("face_set_name");

deleteFaceByFaceIdRequest.withFaceId("iexEBb6t");

try {

    DeleteFaceByFaceIdResponse deleteFaceByFaceIdResponse = client.deleteFaceByFaceId(deleteFaceByFaceIdRequest);

    System.out.println(deleteFaceByFaceIdResponse.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

批量删除人脸

BatchDeleteFacesRequest batchDeleteFacesRequest = new BatchDeleteFacesRequest();

batchDeleteFacesRequest.withFaceSetName("face_set_name");

DeleteFacesBatchReq deleteFacesBatchReq = new DeleteFacesBatchReq();

deleteFacesBatchReq.withFilter("age:[20 TO 30]");

batchDeleteFacesRequest.withBody(deleteFacesBatchReq);

try {

    BatchDeleteFacesResponse batchDeleteFacesResponse = client.batchDeleteFaces(batchDeleteFacesRequest);

    System.out.println(batchDeleteFacesResponse.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

更新人脸

UpdateFaceRequest updateFaceRequest = new UpdateFaceRequest();

updateFaceRequest.withFaceSetName("face_set_name");

UpdateFaceReq updateFaceReq = new UpdateFaceReq();

updateFaceReq.withFaceId("iexEBb6t");

updateFaceRequest.withBody(updateFaceReq);

try {

    UpdateFaceResponse response = client.updateFace(updateFaceRequest);

    System.out.println(response.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

查询人脸

//show faces by faceId

ShowFacesByFaceIdRequest showFacesByFaceIdRequest = new ShowFacesByFaceIdRequest();

showFacesByFaceIdRequest.withFaceSetName("face_set_name");

showFacesByFaceIdRequest.withFaceId("iexEBb6t");

try {

    ShowFacesByFaceIdResponse response = client.showFacesByFaceId(showFacesByFaceIdRequest);

    System.out.println(response.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

4.3      活体识别/检测

4.3.1        动作活体检测

//detect live by base64

DetectLiveByBase64Request request = new DetectLiveByBase64Request();

LiveDetectBase64Req body = new LiveDetectBase64Req();

body.withActions("1,2,3,4");

body.withVideoBase64("/9j/4AAQSkZJRgABAQAAAQABAAD...");

request.withBody(body);

try {

    DetectLiveByBase64Response response = client.detectLiveByBase64(request);

    System.out.println(response.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

4.3.2        静默活体检测

//detect live face by base64

DetectLiveFaceByBase64Request request = new DetectLiveFaceByBase64Request();

LiveDetectFaceBase64Req body = new LiveDetectFaceBase64Req();

body.withImageBase64("/9j/4AAQSkZJRgABAQAAAQABAAD...");

request.withBody(body);

try {

    DetectLiveFaceByBase64Response response = client.detectLiveFaceByBase64(request);

    System.out.println(response.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

4.4      人脸搜索

SearchFaceByBase64Request searchRequest = new SearchFaceByBase64Request();

searchRequest.withFaceSetName("face_set_name");

FaceSearchBase64Req faceSearchBase64Req = new FaceSearchBase64Req();

List<Map<String, String>> listbodySort = new ArrayList<>();

Map<String, String> map = new HashMap<>();

map.put("timestamp","asc");

listbodySort.add(map);

List<String> listbodyReturnFields = new ArrayList<>();

listbodyReturnFields.add("timestamp");

listbodyReturnFields.add("id");

faceSearchBase64Req.withSort(listbodySort);

faceSearchBase64Req.withReturnFields(listbodyReturnFields);

faceSearchBase64Req.withImageBase64("/9j/4AAQSkZJRgABAQAAAQABAAD...");

searchRequest.withBody(faceSearchBase64Req);

try {

    SearchFaceByBase64Response searchResponse = client.searchFaceByBase64(searchRequest);

    System.out.println(searchResponse.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

4.5      人脸比对

CompareFaceByBase64Request compareRequest = new CompareFaceByBase64Request();

FaceCompareBase64Req faceCompareBase64Req = new FaceCompareBase64Req();

faceCompareBase64Req.withImage1Base64("/9j/4AAQSkZJRgABAQAAAQABAAD...");

faceCompareBase64Req.withImage2Base64("/9j/4AAQSkZJRgABAQAAAQABAAD...");

compareRequest.withBody(faceCompareBase64Req);

try {CompareFaceByBase64Request compareRequest = new CompareFaceByBase64Request();

FaceCompareBase64Req faceCompareBase64Req = new FaceCompareBase64Req();

faceCompareBase64Req.withImage1Base64("/9j/4AAQSkZJRgABAQAAAQABAAD...");

faceCompareBase64Req.withImage2Base64("/9j/4AAQSkZJRgABAQAAAQABAAD...");

compareRequest.withBody(faceCompareBase64Req);

try {

    CompareFaceByBase64Response compareResponse = client.compareFaceByBase64(compareRequest);

    System.out.println(compareResponse.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

    CompareFaceByBase64Response compareResponse = client.compareFaceByBase64(compareRequest);

    System.out.println(compareResponse.toString());

} catch (ConnectionException e) {

    e.printStackTrace();

} catch (RequestTimeoutException e) {

    e.printStackTrace();

} catch (ServiceResponseException e) {

    e.printStackTrace();

    System.out.println(e.getHttpStatusCode());

    System.out.println(e.getErrorCode());

    System.out.println(e.getErrorMsg());

}

5      偷偷藏不住的你

身份验证

使用人脸检测与比对功能，可进行身份核实，适用于机场、海关等人证合一验证场景。


电子考勤

人脸检测及比对功能适用于客户企业对员工进行电子考勤。

客流分析

客流分析对于商场具有重要价值。基于人脸识别、搜索技术，帮助客户精准营销。

6      参考文献

https://support.huaweicloud.cn/usermanual-cbs/cbs_01_0029.html

https://console.huaweicloud.cn/cbs/?region=cn-north-4#/cbs/management/skills

7      体验插件课程

https://classroom.devcloud.huaweicloud.cn/MOOCCourseStudy/join/ef4ebc3dbaa246ff995f75022cac8cb9

识别下方二维码立即体验




【版权声明】本文为华为云社区用户原创内容，转载时必须标注文章的来源（华为云社区）、文章链接、文章作者等基本信息， 否则作者和本社区有权追究责任。如果您发现本社区中有涉嫌抄袭的内容，欢迎发送邮件进行举报，并提供相关证据，一经查实，本社区将立刻删除涉嫌侵权内容，举报邮箱： cloudbbs@huaweicloud.com
API Classroom IDE 人脸识别服务 FRS
  • 点赞
  • 收藏
  • 关注作者

评论（0）

0/1000
抱歉，系统识别当前为高风险访问，暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称，即可参与社区互动！

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

确认 取消

加入云驻计划，成为创作者

  • 华为云周边好礼
  • 免费体验产品
  • 特殊身份标识
  • 线下官方门票
  • 内部专家零距离
  • 与10000+优质创作者共同成长
立即加入
