需求

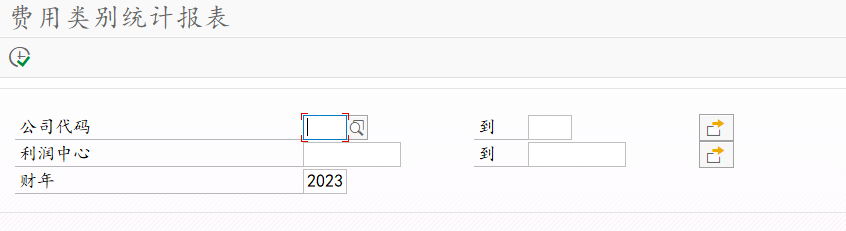

接到一个需求对公司的费用类别作统计，要求选择屏幕如下：


实现方式

  1. 首先定义一个自定义报表维护公司需要的费用编号
  2. 通过 SAP 的 BSEG 后台表找出公司下对应的会计核算凭证段
  3. 计算金额的总和

数据定义

首先，定义 ALV 需要常见字段和我们这个报表中需要的字段，如下：

*----------------------------------------------------------------------*
* Data Declarations
*----------------------------------------------------------------------*
TYPE-POOLS: slis, abap.
TABLES: bseg, zfit029.

DATA: BEGIN OF gs_out,
        zcode_cost LIKE zfit029-zcode_cost,  " 费用编号
        zcost_desc LIKE zfit029-zcost_desc,  " 费用描述
        month_1    LIKE bseg-dmbtr,
        month_2    LIKE bseg-dmbtr,
        month_3    LIKE bseg-dmbtr,
        month_4    LIKE bseg-dmbtr,
        month_5    LIKE bseg-dmbtr,
        month_6    LIKE bseg-dmbtr,
        month_7    LIKE bseg-dmbtr,
        month_8    LIKE bseg-dmbtr,
        month_9    LIKE bseg-dmbtr,
        month_10   LIKE bseg-dmbtr,
        month_11   LIKE bseg-dmbtr,
        month_12   LIKE bseg-dmbtr,
      END OF gs_out.

DATA: gt_out  LIKE TABLE OF gs_out WITH HEADER LINE.

DATA: gs_zfit029 TYPE zfit029,
      gt_zfit029 LIKE TABLE OF gs_zfit029.

DATA: BEGIN OF gs_bseg,

        zcode_cost TYPE zfit029-zcode_cost,     " 费用类别编号
        zcost_desc TYPE zfit029-zcost_desc,     " 费用类别描述
        bukrs      TYPE bseg-bukrs,             " 公司代码
        hkont      TYPE bseg-hkont,             " 总账科目
        gjahr      TYPE bseg-gjahr,             " 财年
        buzei      TYPE bseg-buzei,             " 会计凭证中的行项目数
        shkzg      TYPE bseg-shkzg,             " 借方/贷方标识
        h_hwaer    TYPE bseg-h_hwaer,           " 币种 pswsl
        prctr      TYPE bseg-prctr,             " 利润中心
        h_monat    TYPE bseg-h_monat,           " 月份
        dmbtr      TYPE bseg-dmbtr,             " 按本位币计的金额
        h_budat    TYPE bseg-h_budat,           " 凭证中的过账日期
        kostl      TYPE bseg-kostl,             " 成本中心
        belnr      TYPE bseg-belnr,             " 会计凭证

      END OF gs_bseg.
DATA: gt_bseg LIKE TABLE OF gs_bseg WITH KEY zcode_cost.

DATA: BEGIN OF gs_total,
        zcode_cost LIKE zfit029-zcode_cost,
        h_monat    LIKE bseg-h_monat,
        h_hwaer    LIKE bseg-h_hwaer,
        zcost_desc LIKE zfit029-zcost_desc,
        h_budat    LIKE bseg-h_budat,
        dmbtr      LIKE bseg-dmbtr,
        shkzg      LIKE bseg-shkzg,
      END OF gs_total.
DATA: gs_total1  LIKE gs_total.

DATA: gt_total  LIKE STANDARD TABLE OF gs_total,
      gt_total1 LIKE STANDARD TABLE OF gs_total WITH HEADER LINE.

DATA: gv_tabix TYPE sy-tabix,
      gv_zcode TYPE zfit029-zcode_cost.

DATA: BEGIN OF gs_detail,
        zcode_cost LIKE zfit029-zcode_cost,
        zcost_desc LIKE zfit029-zcost_desc,
        hkont      TYPE bseg-hkont,
        shkzg      TYPE bseg-shkzg,
        dmbtr      LIKE bseg-dmbtr,
        h_hwaer    TYPE bseg-h_hwaer,
        bukrs      TYPE bseg-bukrs,
        kostl      TYPE bseg-kostl,
        prctr      TYPE bseg-prctr,
        belnr      TYPE bseg-belnr,
        gjahr      TYPE bseg-gjahr,
        h_monat    LIKE bseg-h_monat,
        h_budat    TYPE bseg-h_budat,
      END OF gs_detail.
DATA gt_detail LIKE STANDARD TABLE OF gs_detail.

DATA gv_kkurs TYPE prcd_elements-kkurs.
DATA lastdate TYPE bseg-h_budat.

* ALV Data Declarations
DATA: gs_layout       TYPE lvc_s_layo,
      gs_fieldcat     TYPE lvc_s_fcat,
      gt_fieldcat     TYPE lvc_t_fcat,

      i_layout        TYPE lvc_s_layo,
      is_fieldcat     TYPE lvc_s_fcat,
      it_fieldcat     TYPE lvc_t_fcat,

      gs_all_fieldcat TYPE lvc_s_fcat,
      gt_all_fieldcat TYPE lvc_t_fcat,
      gd_repid        LIKE sy-repid.

选择屏幕部分

接下来定义 ALV 中需要显示的字段，主要包括选择屏幕和选项，结束选择屏幕后的数据读取操作：

*----------------------------------------------------------------------*
* Selection Screen
*----------------------------------------------------------------------*
SELECTION-SCREEN BEGIN OF BLOCK y1 WITH FRAME TITLE TEXT-001.

SELECT-OPTIONS:
  so_bukrs FOR bseg-bukrs,
  so_prctr FOR bseg-prctr.

PARAMETERS: p_gjahr LIKE bseg-gjahr OBLIGATORY DEFAULT sy-datlo(4).

SELECTION-SCREEN END OF BLOCK y1.


*----------------------------------------------------------------------*
* Start-of-selection.
*----------------------------------------------------------------------*
START-OF-SELECTION.
  PERFORM data_retrieval.
  PERFORM build_fieldcatlog.
  PERFORM build_layout.
  PERFORM display_alv_report.

END-OF-SELECTION.

数据抓取

按照规则，抓取我们需要的后台数据：

*&---------------------------------------------------------------------*
*&      Form  DATA_RETRIEVAL
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM data_retrieval .

  DATA: lv_zcode_cost TYPE zfit029-zcode_cost.

  REFRESH: gt_zfit029,
           gt_bseg.

  SELECT zcode_cost
         zcost_desc
         saknr
         txt20 FROM zfit029 INTO CORRESPONDING FIELDS OF TABLE gt_zfit029.

  IF gt_zfit029 IS NOT INITIAL.
    SELECT bukrs
           hkont
           gjahr
           buzei
           shkzg
           dmbtr
           h_hwaer
           prctr
           h_monat
           h_budat
           kostl
           belnr FROM bseg INTO CORRESPONDING FIELDS OF TABLE gt_bseg
             FOR ALL ENTRIES IN gt_zfit029
             WHERE bukrs IN so_bukrs
               AND prctr IN so_prctr
               AND gjahr = p_gjahr
               AND hkont = gt_zfit029-saknr.
  ENDIF.

  " 根据 bseg 和 zit029 两个表的总账科目号连接到内表
  LOOP AT gt_bseg INTO gs_bseg.
    READ TABLE gt_zfit029 INTO gs_zfit029 WITH KEY saknr = gs_bseg-hkont.
    IF sy-subrc = 0.
      gs_bseg-zcode_cost = gs_zfit029-zcode_cost.
      gs_bseg-zcost_desc = gs_zfit029-zcost_desc.
    ENDIF.

    MODIFY gt_bseg FROM gs_bseg.
    CLEAR:gs_bseg,
          gs_zfit029.
  ENDLOOP.

  MOVE-CORRESPONDING gt_bseg TO gt_total.


  " 循环按借贷标识把金额换算成正负
  LOOP AT gt_total INTO gs_total.

    IF gs_total-shkzg = 'H'.
      gs_total-dmbtr = gs_total-dmbtr * ( -1 ).
    ELSE.
      gs_total-dmbtr = gs_total-dmbtr.
    ENDIF.

    MODIFY gt_total FROM gs_total.
    CLEAR: gs_total.
  ENDLOOP.

  SORT gt_total BY zcode_cost h_monat h_hwaer.  " 根据费用编号、月份、币种排序

  " 按编号、币种、月份、时期 分类求和
  LOOP AT gt_total INTO gs_total GROUP BY ( k1 = gs_total-zcode_cost
                                            k2 = gs_total-h_hwaer
                                            k3 = gs_total-h_monat
                                            k4 = gs_total-h_budat
                                            k5 = gs_total-zcost_desc ) ASSIGNING FIELD-SYMBOL(<total>).
    gs_total1-zcode_cost = <total>-k1.
    gs_total1-h_hwaer = <total>-k2.
    gs_total1-h_monat = <total>-k3.
    gs_total1-h_budat = <total>-k4.
    gs_total1-zcost_desc = <total>-k5.
    gs_total1-dmbtr = REDUCE s_sum( INIT temp TYPE bseg-dmbtr FOR line IN GROUP <total>
                             NEXT temp = temp + line-dmbtr ).
    APPEND gs_total1 TO gt_total1.
    CLEAR gs_total1.
  ENDLOOP.

  " 先按照本币求和，然后再按当前记账日期的上一个月份维护的汇率，换算为 USD
  DATA: ld_last_day_of_month TYPE sy-datum.
  LOOP AT gt_total1 INTO gs_total1.
    IF gs_total1-h_hwaer NE 'USD'.

      CALL FUNCTION 'RP_LAST_DAY_OF_MONTHS'
        EXPORTING
          day_in            = gs_total1-h_budat
        IMPORTING
          last_day_of_month = ld_last_day_of_month
        EXCEPTIONS
          day_in_no_date    = 1
          OTHERS            = 2.

      IF gs_total1-h_budat EQ ld_last_day_of_month. " 如果当前日期是最后一天，则减去一个月取汇率
        CALL FUNCTION 'FIMA_DATE_CREATE'
          EXPORTING
            i_date   = gs_total1-h_budat
            i_months = '-1'
          IMPORTING
            e_date   = lastdate.

        gs_total1-h_budat = lastdate.
      ENDIF.

      CLEAR: gv_kkurs.
      CALL FUNCTION 'ZRFC_EXCHANGERATE'
        EXPORTING
          i_waers1 = gs_total1-h_hwaer
          i_waers2 = 'USD'
          i_date   = gs_total1-h_budat
        IMPORTING
          e_kkurs  = gv_kkurs.
      gs_total1-dmbtr = gs_total1-dmbtr * gv_kkurs.

      MODIFY gt_total1 FROM gs_total1.
      CLEAR gs_total1.
    ENDIF.
  ENDLOOP.

然后按照月份求和：

LOOP AT gt_total1 INTO gs_total1.

    AT NEW zcode_cost.
      lv_zcode_cost = gs_total1-zcode_cost.
    ENDAT.

    IF lv_zcode_cost EQ gs_total1-zcode_cost AND gs_total1-h_monat EQ 01.
      gs_out-month_1 = gs_out-month_1 + gs_total1-dmbtr.
      gs_out-zcode_cost = gs_total1-zcode_cost.
      gs_out-zcost_desc = gs_total1-zcost_desc.

    ELSEIF lv_zcode_cost EQ gs_total1-zcode_cost AND gs_total1-h_monat EQ 02.
      gs_out-month_2 = gs_out-month_2 + gs_total1-dmbtr.
      gs_out-zcode_cost = gs_total1-zcode_cost.
      gs_out-zcost_desc = gs_total1-zcost_desc.

    ELSEIF lv_zcode_cost EQ gs_total1-zcode_cost AND gs_total1-h_monat EQ 03.
      gs_out-month_3 = gs_out-month_3 + gs_total1-dmbtr.
      gs_out-zcode_cost = gs_total1-zcode_cost.
      gs_out-zcost_desc = gs_total1-zcost_desc.

    ELSEIF lv_zcode_cost EQ gs_total1-zcode_cost AND gs_total1-h_monat EQ 04.
      gs_out-month_4 = gs_out-month_4 + gs_total1-dmbtr.
      gs_out-zcode_cost = gs_total1-zcode_cost.
      gs_out-zcost_desc = gs_total1-zcost_desc.

    ELSEIF lv_zcode_cost EQ gs_total1-zcode_cost AND gs_total1-h_monat EQ 05.
      gs_out-month_5 = gs_out-month_5 + gs_total1-dmbtr.
      gs_out-zcode_cost = gs_total1-zcode_cost.
      gs_out-zcost_desc = gs_total1-zcost_desc.

    ELSEIF lv_zcode_cost EQ gs_total1-zcode_cost AND gs_total1-h_monat EQ 06.
      gs_out-month_6 = gs_out-month_6 + gs_total1-dmbtr.
      gs_out-zcode_cost = gs_total1-zcode_cost.
      gs_out-zcost_desc = gs_total1-zcost_desc.

    ELSEIF lv_zcode_cost EQ gs_total1-zcode_cost AND gs_total1-h_monat EQ 07.
      gs_out-month_7 = gs_out-month_7 + gs_total1-dmbtr.
      gs_out-zcode_cost = gs_total1-zcode_cost.
      gs_out-zcost_desc = gs_total1-zcost_desc.

    ELSEIF lv_zcode_cost EQ gs_total1-zcode_cost AND gs_total1-h_monat EQ 08.
      gs_out-month_8 = gs_out-month_8 + gs_total1-dmbtr.
      gs_out-zcode_cost = gs_total1-zcode_cost.
      gs_out-zcost_desc = gs_total1-zcost_desc.

    ELSEIF lv_zcode_cost EQ gs_total1-zcode_cost AND gs_total1-h_monat EQ 09.
      gs_out-month_9 = gs_out-month_9 + gs_total1-dmbtr.
      gs_out-zcode_cost = gs_total1-zcode_cost.
      gs_out-zcost_desc = gs_total1-zcost_desc.

    ELSEIF lv_zcode_cost EQ gs_total1-zcode_cost AND gs_total1-h_monat EQ 10.
      gs_out-month_10 = gs_out-month_10 + gs_total1-dmbtr.
      gs_out-zcode_cost = gs_total1-zcode_cost.
      gs_out-zcost_desc = gs_total1-zcost_desc.

    ELSEIF lv_zcode_cost EQ gs_total1-zcode_cost AND gs_total1-h_monat EQ 11.
      gs_out-month_11 = gs_out-month_11 + gs_total1-dmbtr.
      gs_out-zcode_cost = gs_total1-zcode_cost.
      gs_out-zcost_desc = gs_total1-zcost_desc.

    ELSEIF lv_zcode_cost EQ gs_total1-zcode_cost AND gs_total1-h_monat EQ 12.
      gs_out-month_12 = gs_out-month_12 + gs_total1-dmbtr.
      gs_out-zcode_cost = gs_total1-zcode_cost.
      gs_out-zcost_desc = gs_total1-zcost_desc.

    ENDIF.

    AT END OF zcode_cost.
      APPEND gs_out TO gt_out.
      CLEAR:gs_out.
    ENDAT.

    CLEAR: gs_total1.
  ENDLOOP.

最后是建立 FIELDCAT 和设置 LAYOUT

*&---------------------------------------------------------------------*
*&      Form  BUILD_FIELDCATLOG
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM build_fieldcatlog .
  DATA: l_pos TYPE i VALUE 1.
  CLEAR: l_pos.
  REFRESH gt_fieldcat.

  CLEAR gs_fieldcat.
  l_pos = l_pos + 1.

  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'ZCODE_COST'.
  gs_fieldcat-coltext = '费用编号'.
  gs_fieldcat-ref_table = 'ZFIT029'.
  gs_fieldcat-ref_field = 'ZCODE_COST'.
  APPEND gs_fieldcat TO gt_fieldcat.

  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'ZCOST_DESC'.
  gs_fieldcat-coltext = '费用描述'.
  gs_fieldcat-ref_table = 'ZFIT029'.
  gs_fieldcat-ref_field = 'ZCOST_DESC'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'MONTH_1'.
  gs_fieldcat-coltext = '一月'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'MONTH_2'.
  gs_fieldcat-coltext = '二月'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'MONTH_3'.
  gs_fieldcat-coltext = '三月'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'MONTH_4'.
  gs_fieldcat-coltext = '四月'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'MONTH_5'.
  gs_fieldcat-coltext = '五月'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'MONTH_6'.
  gs_fieldcat-coltext = '六月'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-coltext = '七月'.
  gs_fieldcat-fieldname = 'MONTH_7'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-coltext = '八月'.
  gs_fieldcat-fieldname = 'MONTH_8'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'MONTH_9'.
  gs_fieldcat-coltext = '九月'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'MONTH_10'.
  gs_fieldcat-coltext = '十月'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'MONTH_11'.
  gs_fieldcat-coltext = '十一月'.
  APPEND gs_fieldcat TO gt_fieldcat.

  CLEAR gs_fieldcat.
  gs_fieldcat-col_pos = l_pos.
  gs_fieldcat-fieldname = 'MONTH_12'.
  gs_fieldcat-coltext = '十二月'.
  APPEND gs_fieldcat TO gt_fieldcat.


ENDFORM.
*&---------------------------------------------------------------------*
*&      Form  BUILD_LAYOUT
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM build_layout .
  gs_layout-zebra = 'X'.
  gs_layout-cwidth_opt = 'X'.
ENDFORM.
*&---------------------------------------------------------------------*
*&      Form  DISPLAY_ALV_REPORT
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM display_alv_report .

  gd_repid = sy-repid.

  CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
    EXPORTING
      i_callback_program       = gd_repid
      i_callback_pf_status_set = 'PF_STATUS_SET'
      i_callback_user_command  = 'USER_COMMAND'
      is_layout_lvc            = gs_layout
      it_fieldcat_lvc          = gt_fieldcat
      i_save                   = 'X'
    TABLES
      t_outtab                 = gt_out
    EXCEPTIONS
      program_error            = 1
      OTHERS                   = 2.

  IF sy-subrc <> 0.
  ENDIF.

ENDFORM.

FORM pf_status_set USING rt_extab TYPE slis_t_extab.
  SET PF-STATUS 'ZSTATUS'.
ENDFORM.

FORM user_command USING s_ucomm TYPE sy-ucomm
                  re_selfield TYPE slis_selfield.

  CASE s_ucomm.
    WHEN '&IC1'.
      CLEAR: gv_tabix.
      gv_tabix = re_selfield-tabindex.

      CLEAR: gs_detail,
             gs_out.
      READ TABLE gt_out INTO gs_out INDEX gv_tabix.
      IF sy-subrc = 0.
        gv_zcode = gs_out-zcode_cost.
        PERFORM get_detail.
        PERFORM display_detail.
      ENDIF.
    WHEN 'DETAIL'.
      PERFORM get_all.
      PERFORM dispaly_all.
    WHEN OTHERS.
  ENDCASE.
ENDFORM.

*&---------------------------------------------------------------------*
*&      Form  DISPLAY_DETAIL
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM display_detail .
  PERFORM frm_i_fieldcat.
  PERFORM frm_i_setlayout.

  CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
    EXPORTING
      i_callback_program = sy-repid
      i_grid_title       = '费用编号明细'
      is_layout_lvc      = i_layout
      it_fieldcat_lvc    = it_fieldcat
    TABLES
      t_outtab           = gt_detail
    EXCEPTIONS
      program_error      = 1
      OTHERS             = 2.

  IF sy-subrc <> 0.
  ENDIF.
ENDFORM.

FORM frm_i_setlayout.
  i_layout-zebra = 'X'.
  i_layout-sel_mode = 'A'.
  i_layout-cwidth_opt = 'X'.
ENDFORM.

FORM frm_i_fieldcat.
  DATA: l_pos TYPE i.
  CLEAR: l_pos.
  REFRESH: it_fieldcat.

  CLEAR is_fieldcat.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'ZCODE_COST'.
  is_fieldcat-coltext = '费用编号'.
  is_fieldcat-ref_table = 'ZFIT029'.
  is_fieldcat-ref_field = 'ZCODE_COST'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'ZCOST_DESC'.
  is_fieldcat-coltext = '费用描述'.
  is_fieldcat-ref_table = 'ZFIT029'.
  is_fieldcat-ref_field = 'ZCOST_DESC'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'HKONT'.
  is_fieldcat-coltext = '总账科目'.
  is_fieldcat-ref_table = 'BSEG'.
  is_fieldcat-ref_field = 'HKONT'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'SHKZG'.
  is_fieldcat-coltext = '借贷标识'.
  is_fieldcat-ref_table = 'BSEG'.
  is_fieldcat-ref_field = 'SHKZG'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'DMBTR'.
  is_fieldcat-coltext = '金额'.
  is_fieldcat-ref_table = 'BSEG'.
  is_fieldcat-ref_field = 'DMBTR'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'H_HWAER'.
  is_fieldcat-coltext = '本币'.
  is_fieldcat-ref_table = 'BSEG'.
  is_fieldcat-ref_field = 'H_HWAER'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'BUKRS'.
  is_fieldcat-coltext = '公司'.
  is_fieldcat-ref_table = 'BSEG'.
  is_fieldcat-ref_field = 'BUKRS'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'KOSTL'.
  is_fieldcat-coltext = '成本中心'.
  is_fieldcat-ref_table = 'BSEG'.
  is_fieldcat-ref_field = 'KOSTL'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'PRCTR'.
  is_fieldcat-coltext = '利润中心'.
  is_fieldcat-ref_table = 'BSEG'.
  is_fieldcat-ref_field = 'PRCTR'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'BELNR'.
  is_fieldcat-coltext = '会计凭证'.
  is_fieldcat-ref_table = 'BSEG'.
  is_fieldcat-ref_field = 'BELNR'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'GJAHR'.
  is_fieldcat-coltext = '财年'.
  is_fieldcat-ref_table = 'BSEG'.
  is_fieldcat-ref_field = 'GJAHR'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'H_MONAT'.
  is_fieldcat-coltext = '月份'.
  is_fieldcat-ref_table = 'BSEG'.
  is_fieldcat-ref_field = 'H_MONAT'.
  APPEND is_fieldcat TO it_fieldcat.

  CLEAR is_fieldcat.
  l_pos = l_pos + 1.
  is_fieldcat-col_pos = l_pos.
  is_fieldcat-fieldname = 'H_BUDAT'.
  is_fieldcat-coltext = '过帐日期'.
  is_fieldcat-ref_table = 'BSEG'.
  is_fieldcat-ref_field = 'H_BUDAT'.
  APPEND is_fieldcat TO it_fieldcat.

ENDFORM.
*&---------------------------------------------------------------------*
*&      Form  GET_DETAIL
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM get_detail .

  SORT gt_bseg BY zcode_cost h_monat.  " 根据费用编号和月份排序
  REFRESH gt_detail.

  LOOP AT gt_bseg INTO gs_bseg .
    IF gs_bseg-zcode_cost = gv_zcode.

      MOVE-CORRESPONDING gs_bseg TO gs_detail.
      APPEND gs_detail TO gt_detail.
      CLEAR: gs_detail,
             gs_bseg.
    ENDIF.
  ENDLOOP.
ENDFORM.
*&---------------------------------------------------------------------*
*&      Form  DISPALY_ALL
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM dispaly_all .

  PERFORM frm_i_setlayout.
  PERFORM frm_gt_all_fieldcat.
  CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
    EXPORTING
      i_callback_program = sy-repid
      i_grid_title       = '所有明细'
      is_layout_lvc      = i_layout
      it_fieldcat_lvc    = gt_all_fieldcat
    TABLES
      t_outtab           = gt_bseg
    EXCEPTIONS
      program_error      = 1
      OTHERS             = 2.

  IF sy-subrc <> 0.
  ENDIF.
ENDFORM.
*&---------------------------------------------------------------------*
*&      Form  FRM_GT_ALL_FIELDCAT
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM frm_gt_all_fieldcat .
  DATA: l_pos TYPE i.
  CLEAR: l_pos.
  REFRESH: gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'ZCODE_COST'.
  gs_all_fieldcat-coltext = '费用编号'.
  gs_all_fieldcat-ref_table = 'ZFIT029'.
  gs_all_fieldcat-ref_field = 'ZCODE_COST'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'ZCOST_DESC'.
  gs_all_fieldcat-coltext = '费用描述'.
  gs_all_fieldcat-ref_table = 'ZFIT029'.
  gs_all_fieldcat-ref_field = 'ZCOST_DESC'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'HKONT'.
  gs_all_fieldcat-coltext = '总账科目'.
  gs_all_fieldcat-ref_table = 'BSEG'.
  gs_all_fieldcat-ref_field = 'HKONT'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'BUZEI'.
  gs_all_fieldcat-coltext = '会计凭证行项目'.
  gs_all_fieldcat-ref_table = 'BSEG'.
  gs_all_fieldcat-ref_field = 'BUZEI'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'BELNR'.
  gs_all_fieldcat-coltext = '会计凭证'.
  gs_all_fieldcat-ref_table = 'BSEG'.
  gs_all_fieldcat-ref_field = 'BELNR'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'SHKZG'.
  gs_all_fieldcat-coltext = '借贷'.
  gs_all_fieldcat-ref_table = 'BSEG'.
  gs_all_fieldcat-ref_field = 'SHKZG'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'DMBTR'.
  gs_all_fieldcat-coltext = '金额'.
  gs_all_fieldcat-ref_table = 'BSEG'.
  gs_all_fieldcat-ref_field = 'DMBTR'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'H_HWAER'.
  gs_all_fieldcat-coltext = '本币'.
  gs_all_fieldcat-ref_table = 'BSEG'.
  gs_all_fieldcat-ref_field = 'H_HWAER'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.



  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'BUKRS'.
  gs_all_fieldcat-coltext = '公司'.
  gs_all_fieldcat-ref_table = 'BSEG'.
  gs_all_fieldcat-ref_field = 'BUKRS'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'KOSTL'.
  gs_all_fieldcat-coltext = '成本中心'.
  gs_all_fieldcat-ref_table = 'BSEG'.
  gs_all_fieldcat-ref_field = 'KOSTL'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'PRCTR'.
  gs_all_fieldcat-coltext = '利润中心'.
  gs_all_fieldcat-ref_table = 'BSEG'.
  gs_all_fieldcat-ref_field = 'PRCTR'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'BELNR'.
  gs_all_fieldcat-coltext = '会计凭证'.
  gs_all_fieldcat-ref_table = 'BSEG'.
  gs_all_fieldcat-ref_field = 'BELNR'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'GJAHR'.
  gs_all_fieldcat-coltext = '财年'.
  gs_all_fieldcat-ref_table = 'BSEG'.
  gs_all_fieldcat-ref_field = 'GJAHR'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'H_MONAT'.
  gs_all_fieldcat-coltext = '月份'.
  gs_all_fieldcat-ref_table = 'BSEG'.
  gs_all_fieldcat-ref_field = 'H_MONAT'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.

  CLEAR gs_all_fieldcat.
  l_pos = l_pos + 1.
  gs_all_fieldcat-col_pos = l_pos.
  gs_all_fieldcat-fieldname = 'H_BUDAT'.
  gs_all_fieldcat-coltext = '过帐日期'.
  gs_all_fieldcat-ref_table = 'BSEG'.
  gs_all_fieldcat-ref_field = 'H_BUDAT'.
  APPEND gs_all_fieldcat TO gt_all_fieldcat.
ENDFORM.

运行结果

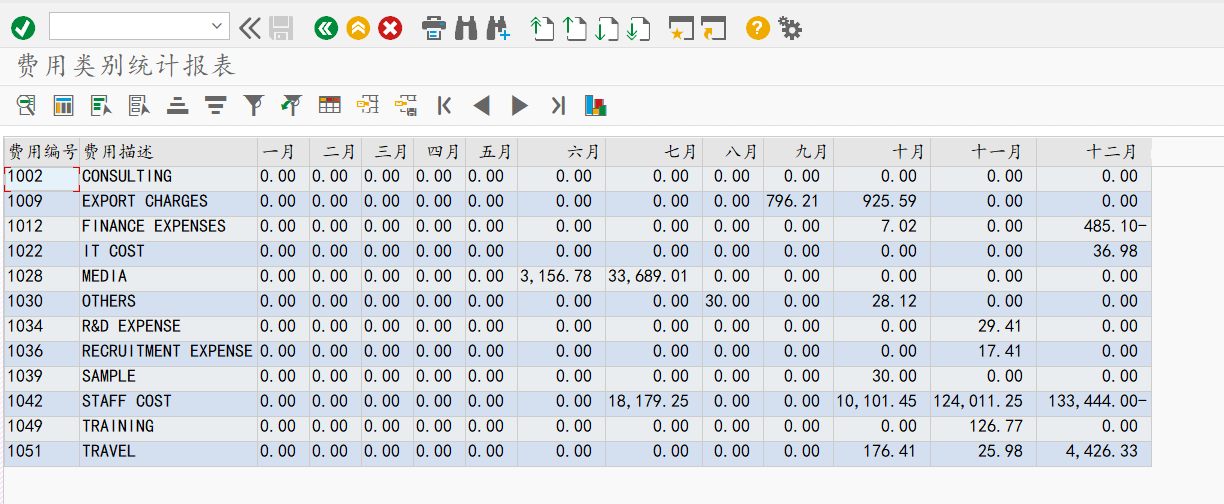

报表执行结果：

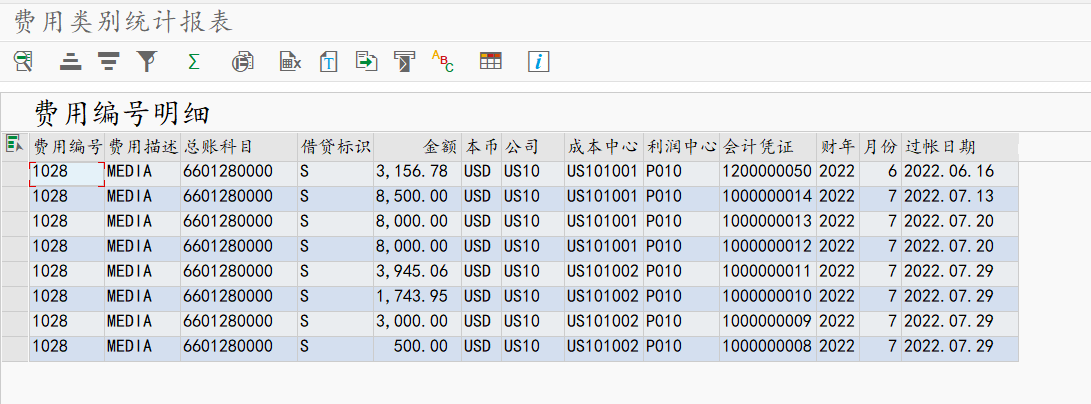

然后点击单独的月份，可以查看当前费用编号的明细信息：


【版权声明】本文为华为云社区用户原创内容，转载时必须标注文章的来源（华为云社区）、文章链接、文章作者等基本信息， 否则作者和本社区有权追究责任。如果您发现本社区中有涉嫌抄袭的内容，欢迎发送邮件进行举报，并提供相关证据，一经查实，本社区将立刻删除涉嫌侵权内容，举报邮箱： cloudbbs@huaweicloud.com
ABAP SAP安全
  • 点赞
  • 收藏
  • 关注作者

评论（0）

0/1000
抱歉，系统识别当前为高风险访问，暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称，即可参与社区互动！

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

确认 取消

加入云驻计划，成为创作者

  • 华为云周边好礼
  • 免费体验产品
  • 特殊身份标识
  • 线下官方门票
  • 内部专家零距离
  • 与10000+优质创作者共同成长
立即加入
