ensp实验
实验一：

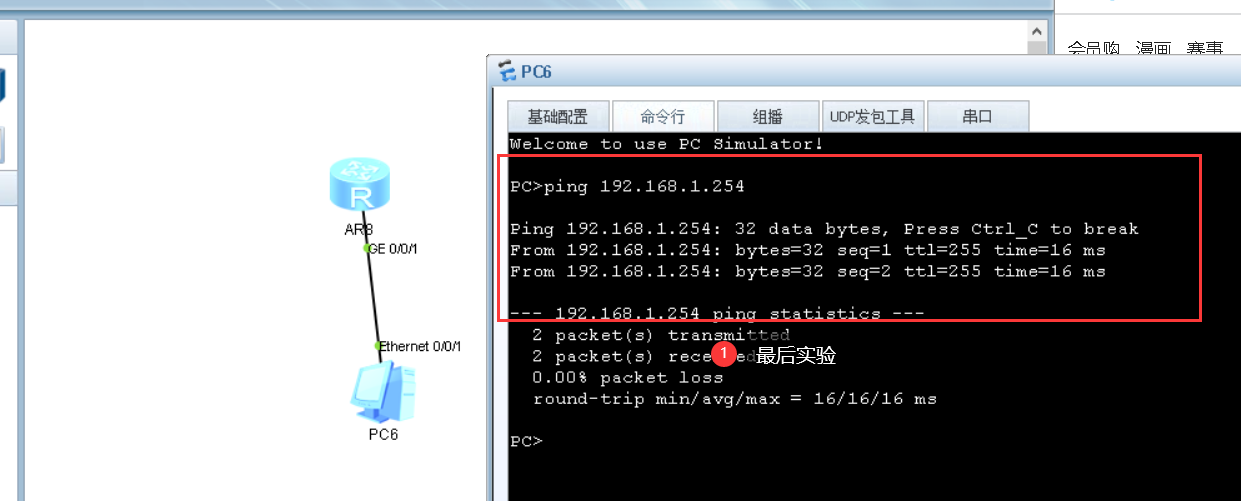

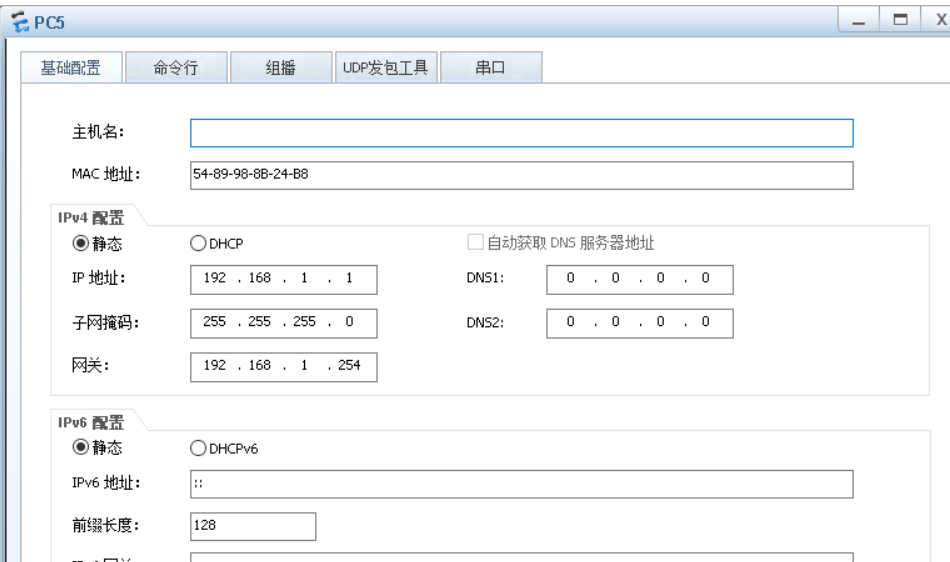

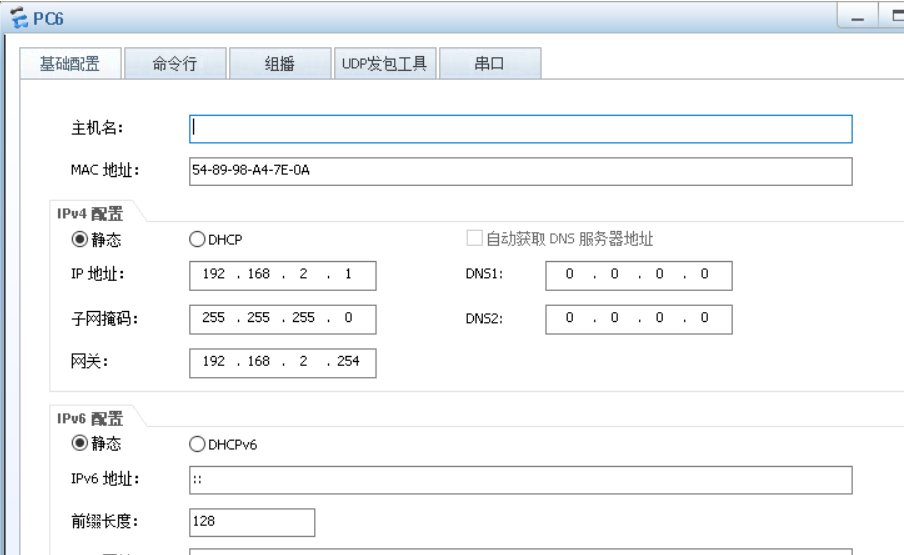

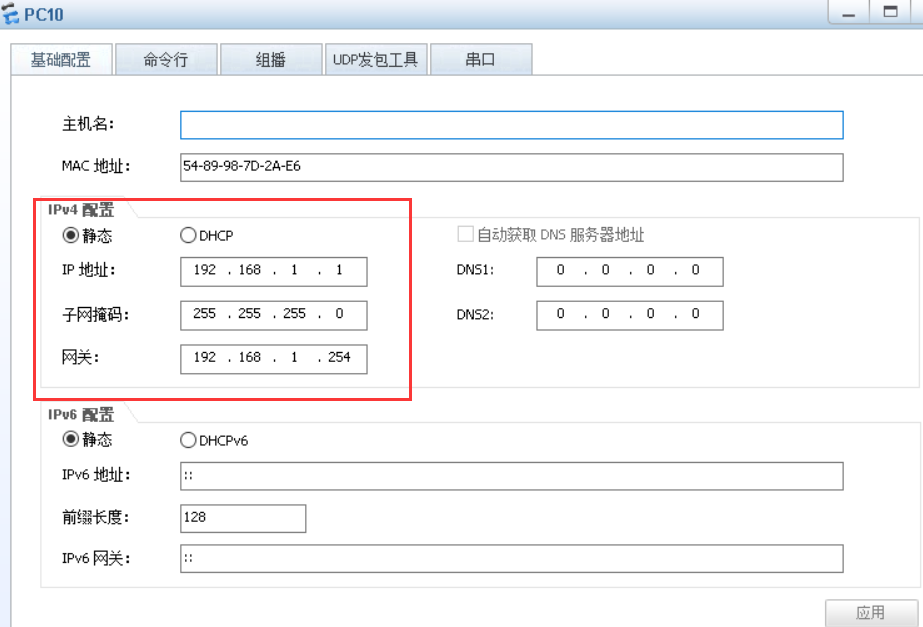

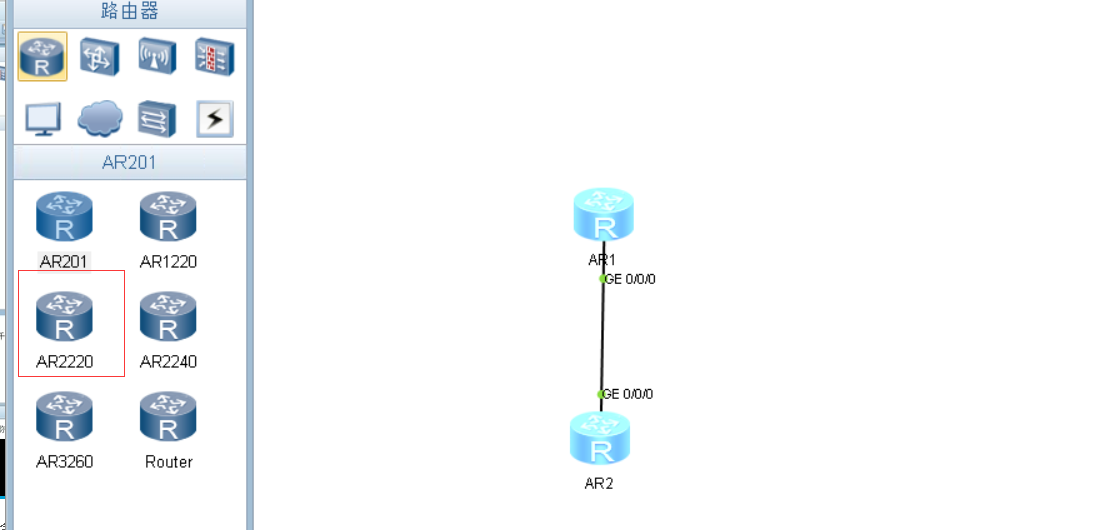

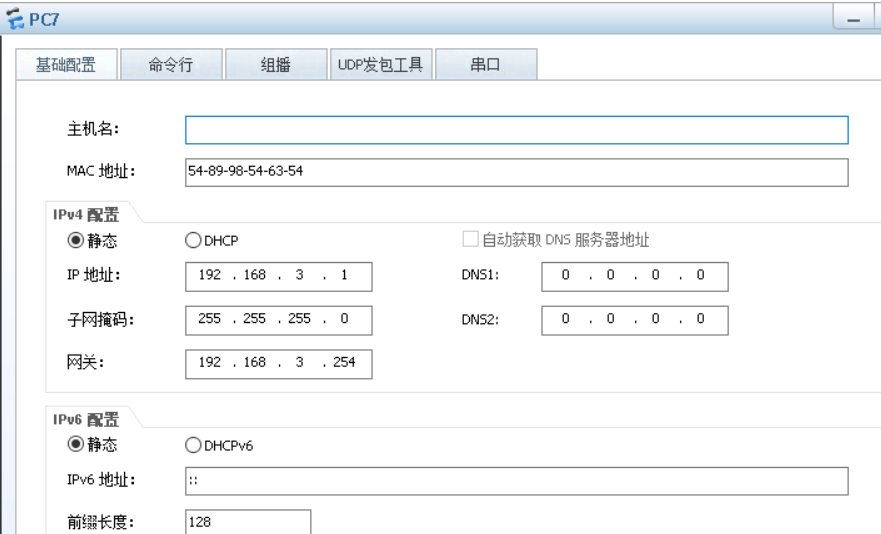

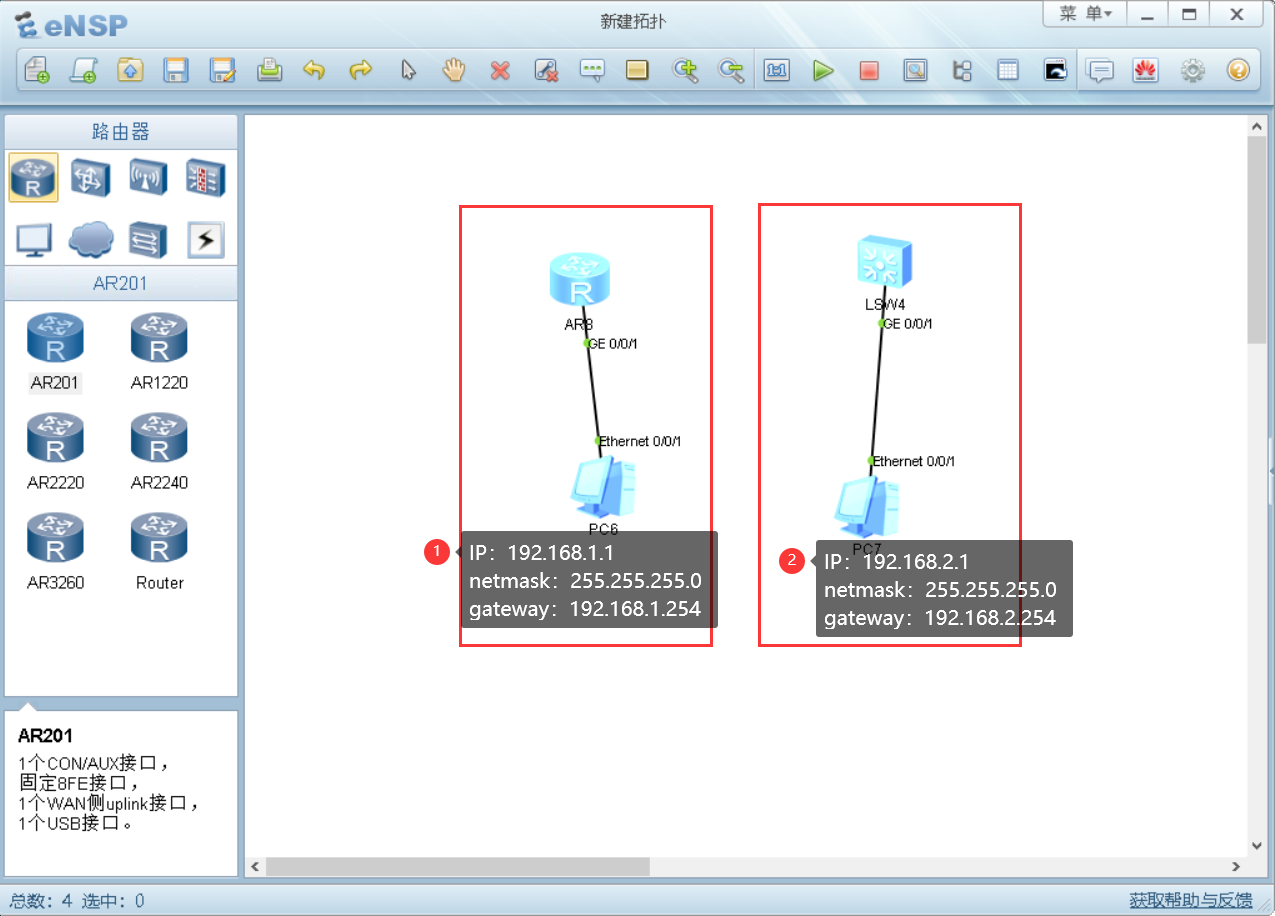

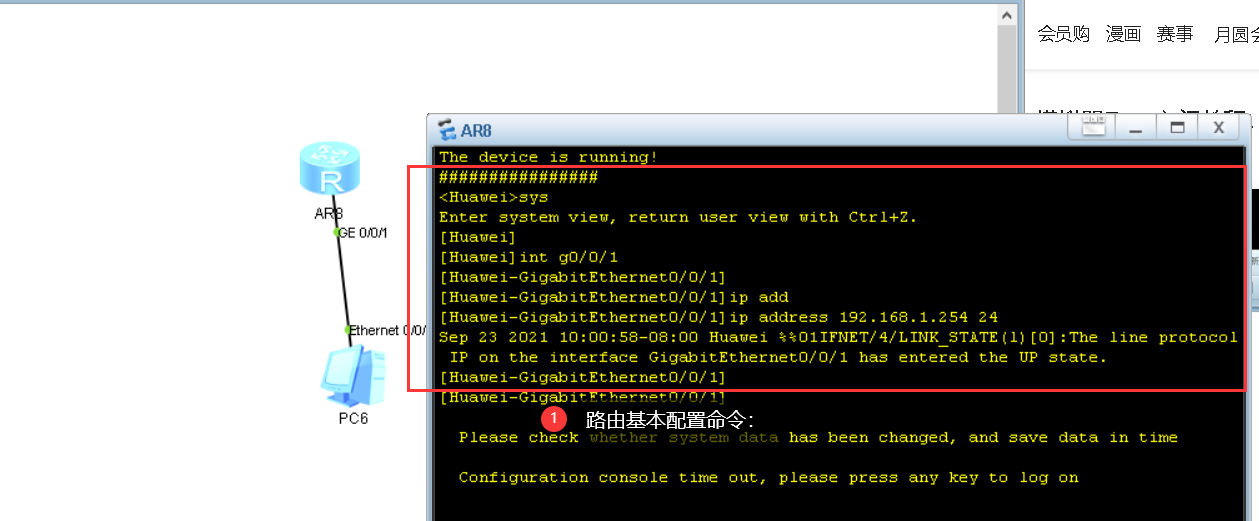

IP地址和网关
.png)
.png)
.png)

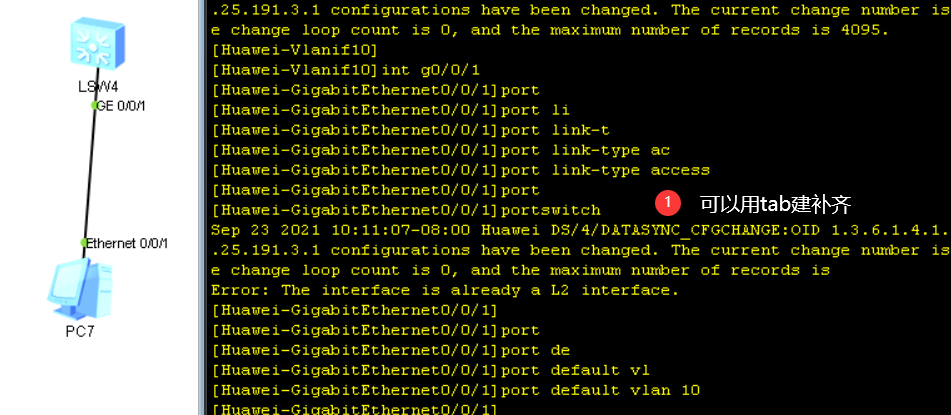

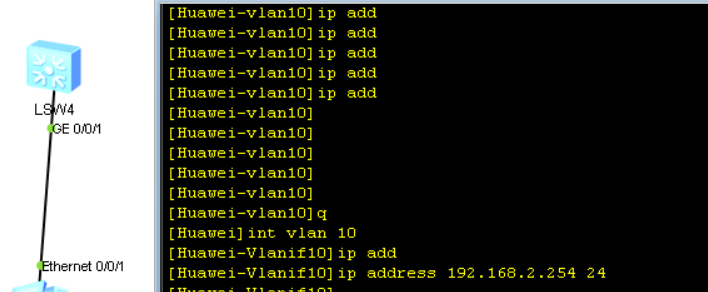

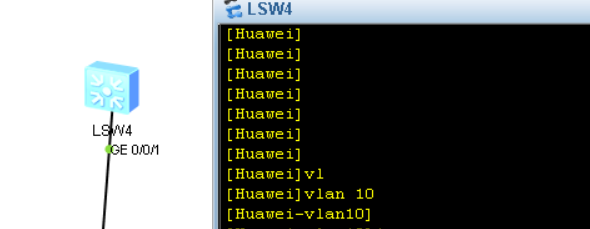

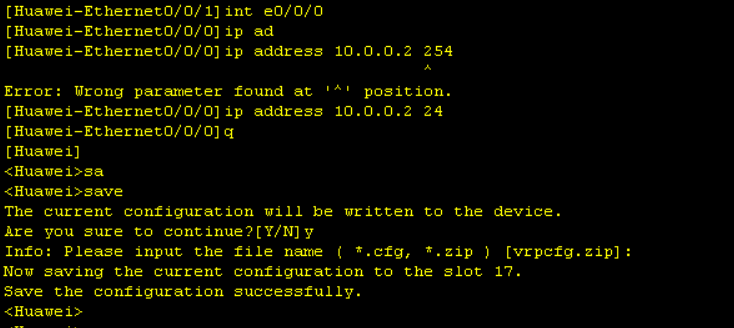

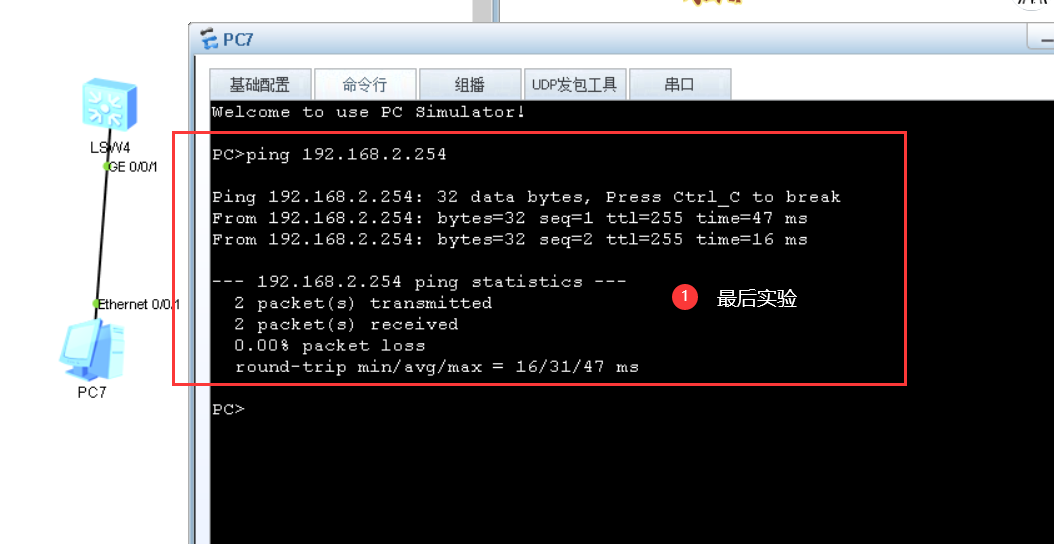

交换机配置
.png)
.png)
.png)
.png)
实验二：

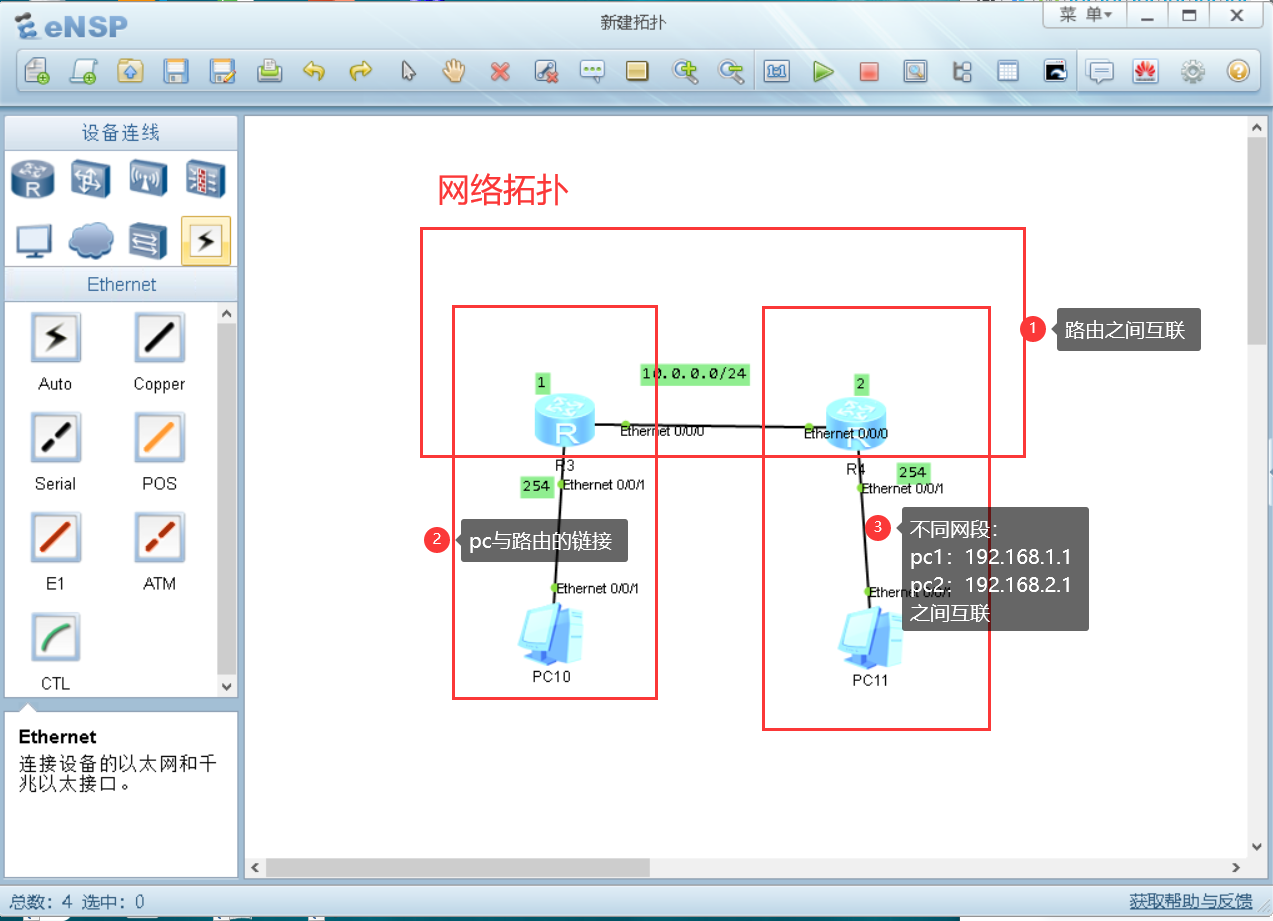

配置静态路由
.png)

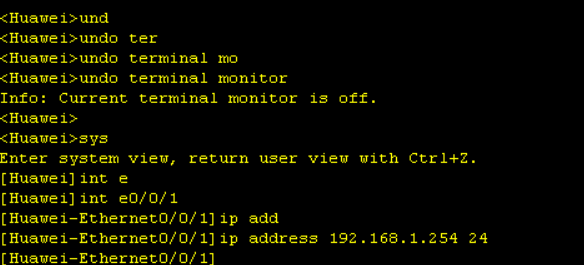

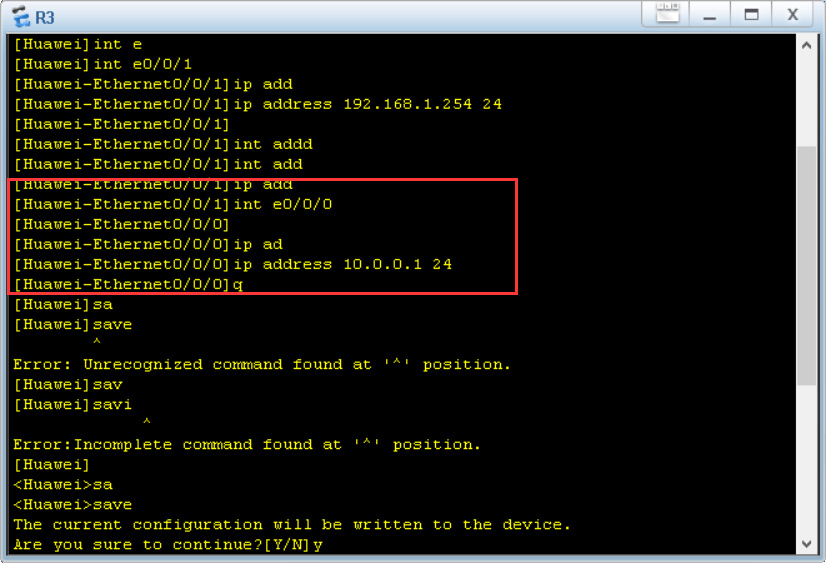

命令配置：

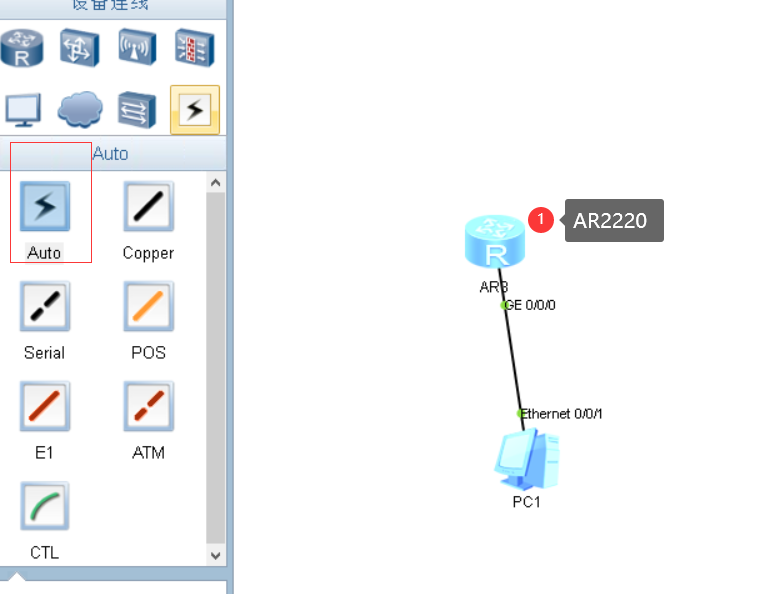

R3与pc1之间互联
.png)
.png)

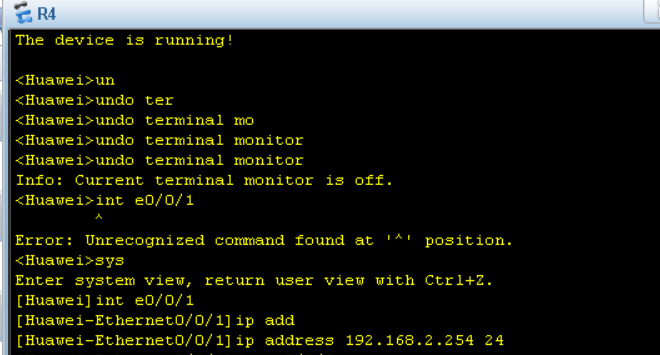

R4与pc2之间的互联
.png)
.png)

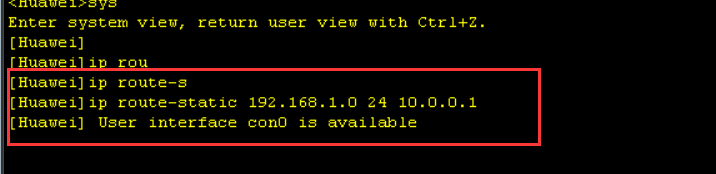

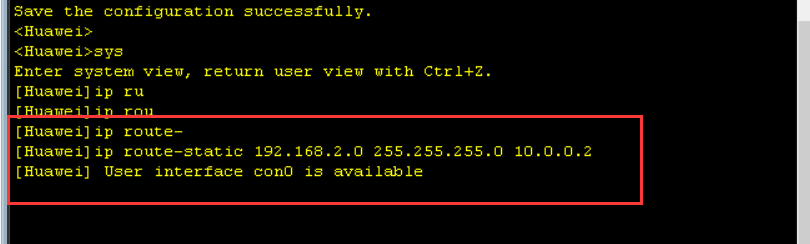

路由与路由之间互通
R3
.png)
.png)
R4
.png)
.png)

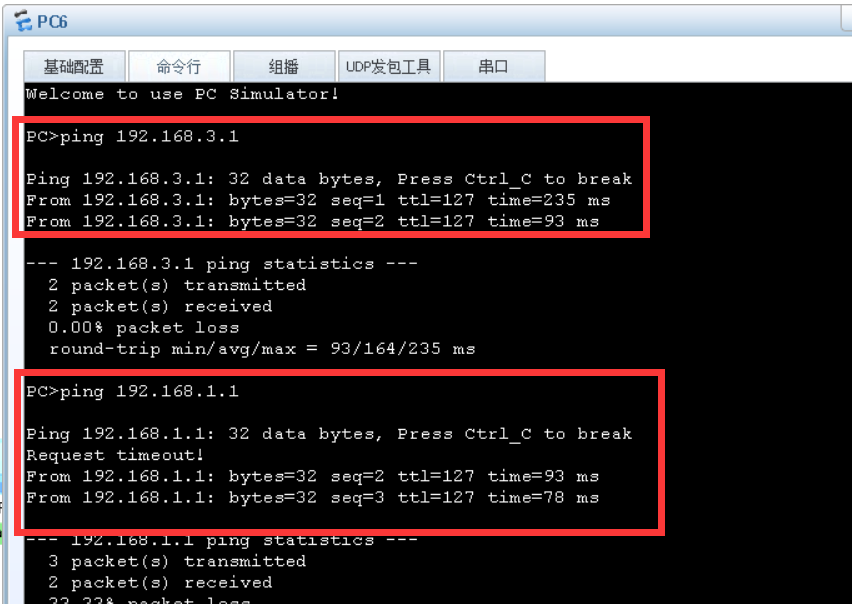

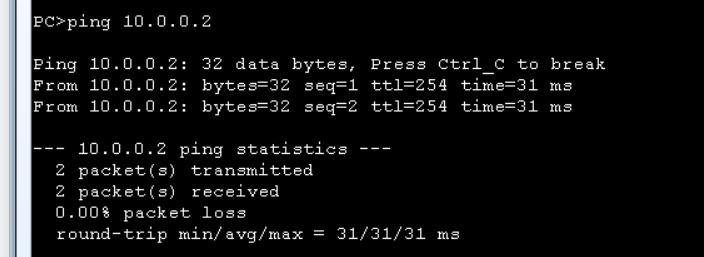

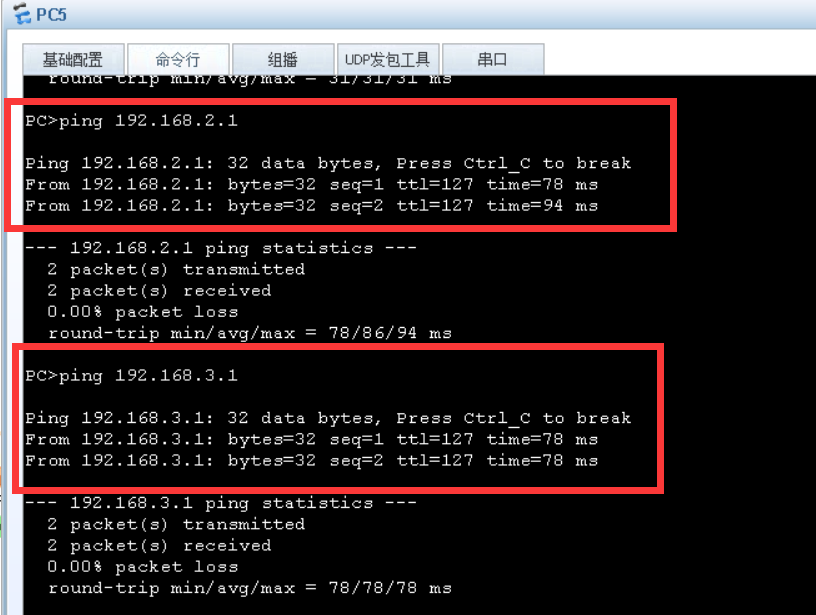

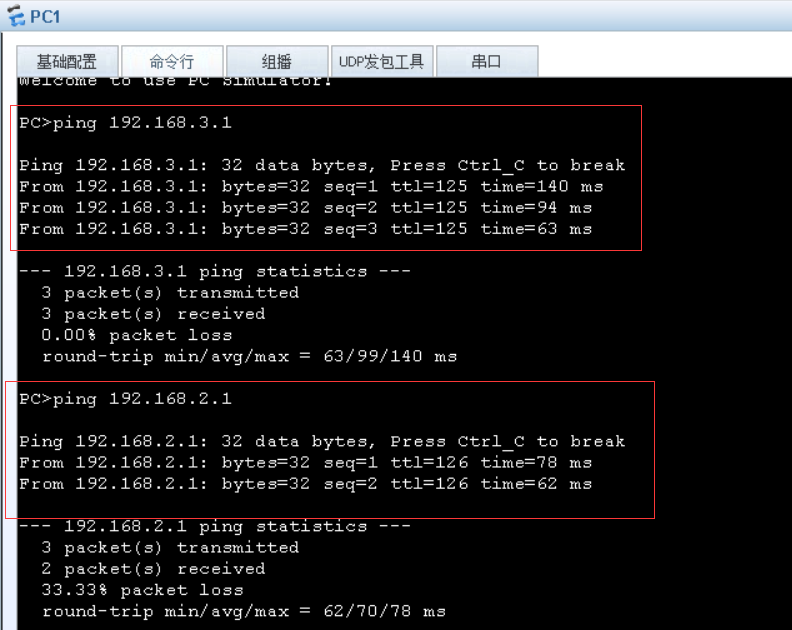

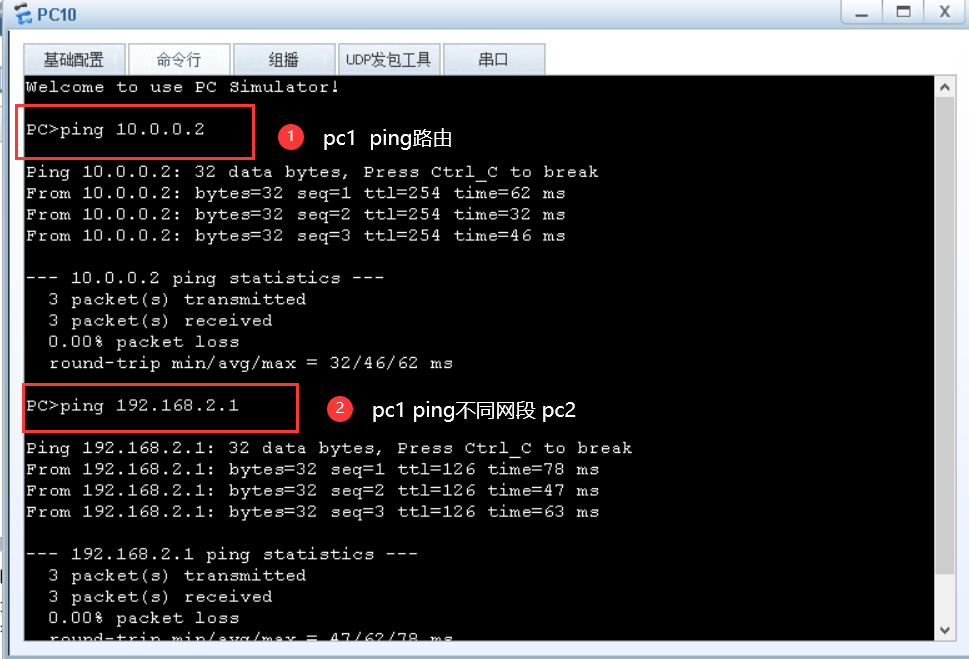

最后验证
.png)
实验三：

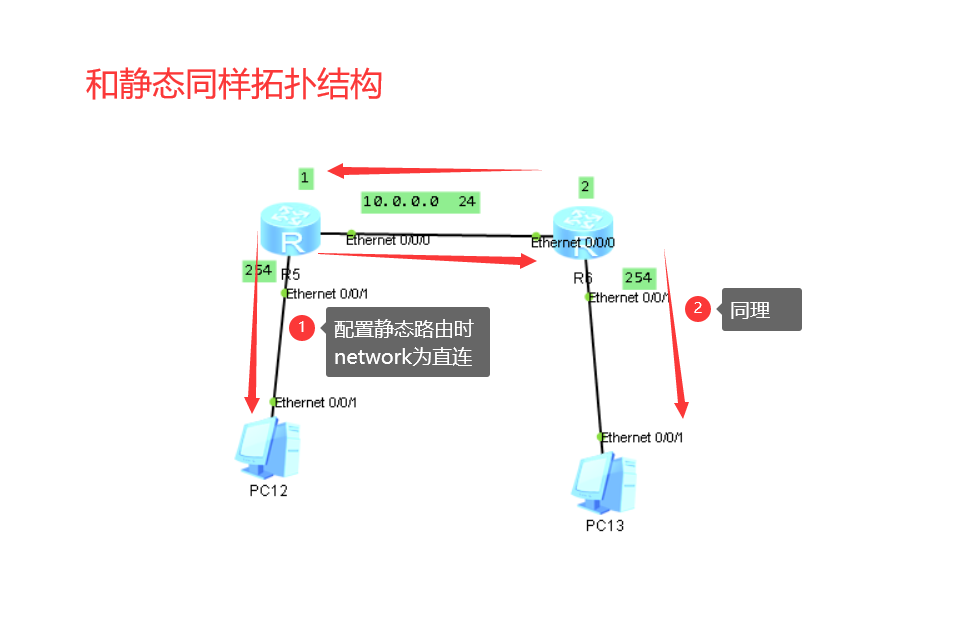

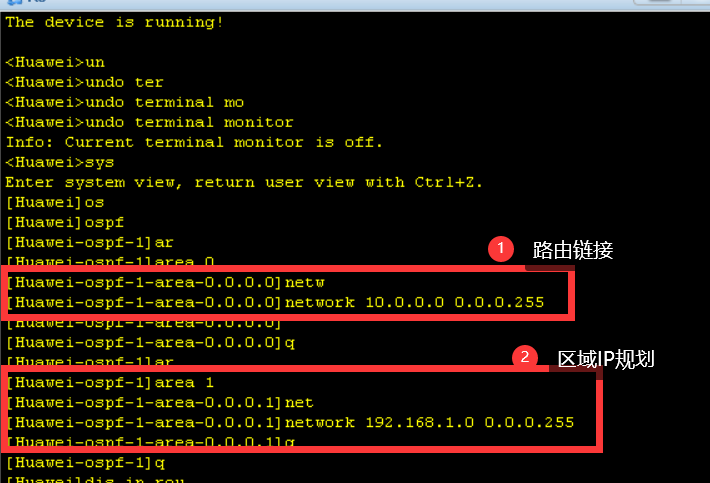

动态路由配置
.png)

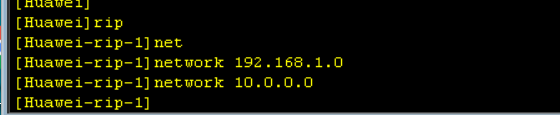

R5路由
.png)
R6路由
.png)

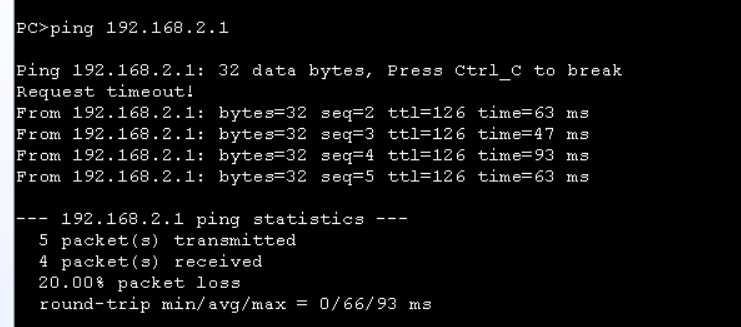

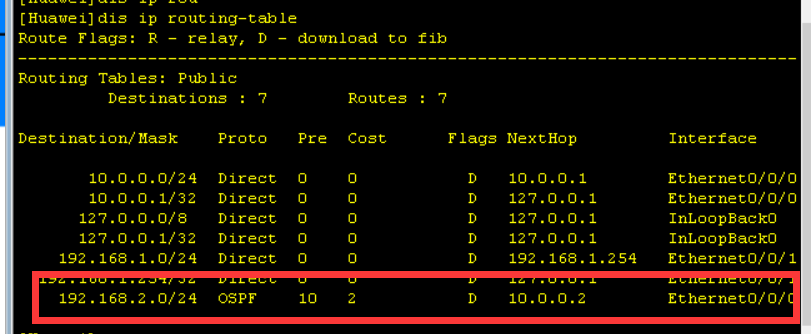

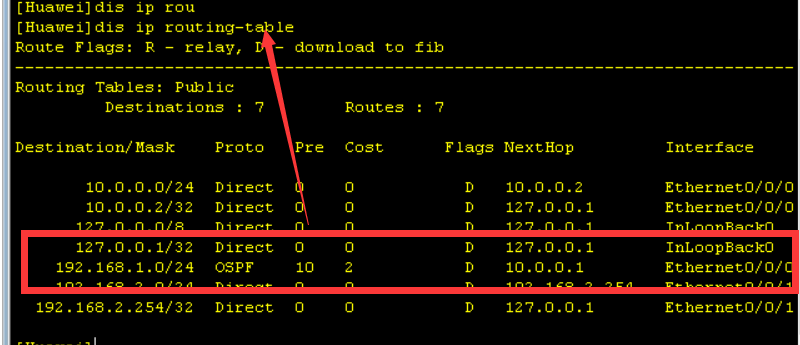

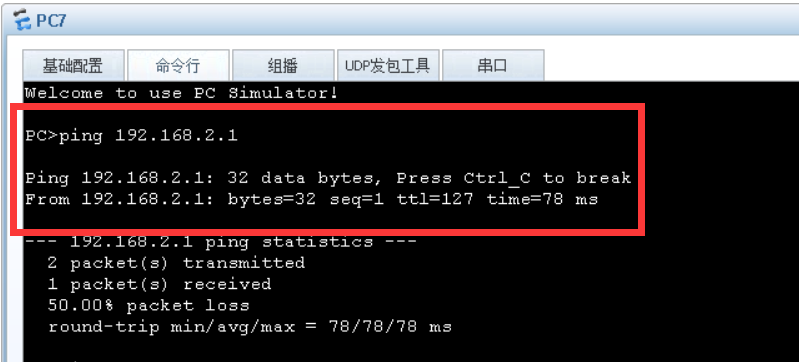

验证
.png)
.png)
实验四：
Ospf使用（跨区域）
详细配置看视频：
https://www.bilibili.com/video/BV1M64y1r7rq?p=9&spm_id_from=pageDriver

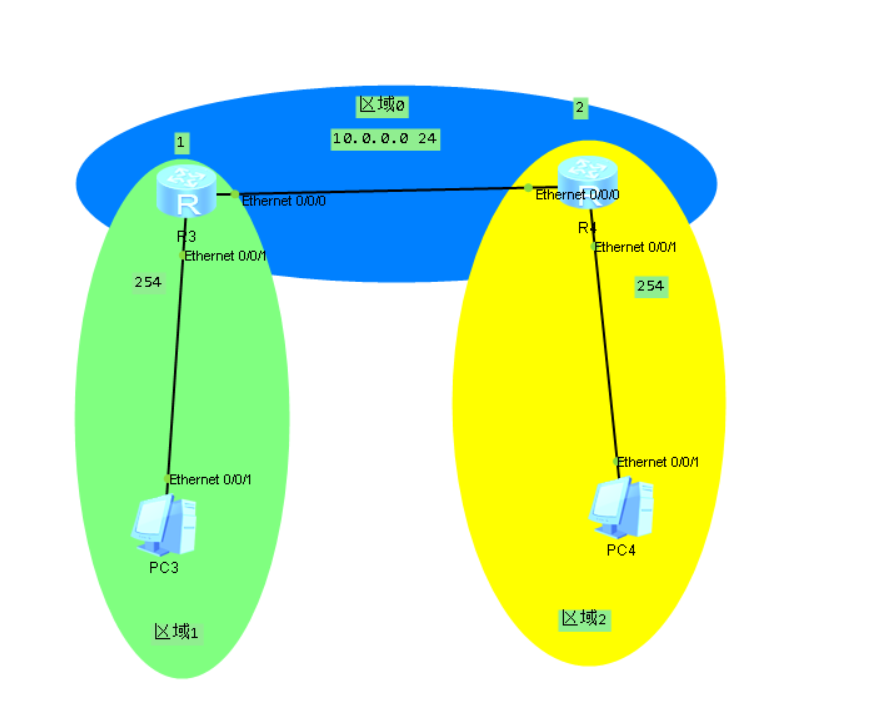

拓扑结构
.png)

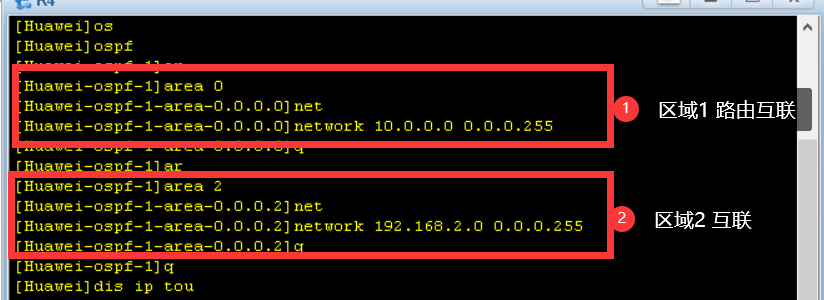

R3
.png)
.png)
R4
.png)
.png)
实验完成
综合性案例可参考：
G:\华为认证（HCIA HCIP HCIE）\路由交换机案例\15网络工程组网的设计与实现实训课程
《ospf多区域互通-华为》

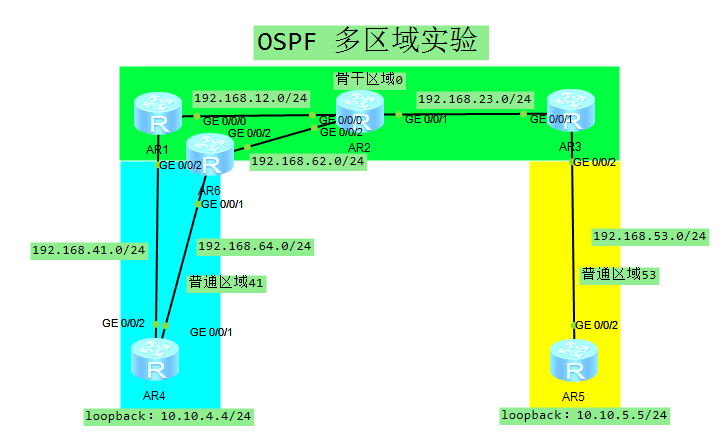

.png)
拓扑图讲解：
如图所示。绿色区域为OSPF骨干区域（区域0），蓝色区域/×××区域为普通区域。
在NSSA区域与骨干区域中间有两台“区域边界路由器（ABR）
名词讲解：
骨干区域：每个OSPF网络中，至少有1个骨干区域。它是OSPF网络中的“核心部分”。用于连接非骨干区域。（特殊情况除外：虚链路等）
普通区域：非骨干区域/非特殊区域的区域就叫做普通区域。
实验名称：OSPF多区域互通实验
实验目的：
1配置路由器物理接口/回环接口的IP地址，子网掩码。
2通过OSPF并对其接口进行区域宣告，最终实现AR4可以PING通AR5
IP地址规划：
AR1（区域边界路由器）
| 接口 |
IP地址 |
子网掩码 |
|
|
| g0/0/0 |
192.168.12.1 |
255.255.255.0 |
|
|
| g0/0/2 |
192.168.41.1 |
255.255.255.0 |
|
|
| loopback0 |
10.10.1.1 |
255.255.255.0 |
|
AR2
| 接口 |
IP地址 |
子网掩码 |
|
|
| g0/0/0 |
192.168.12.2 |
255.255.255.0 |
|
|
| g0/0/1 |
192.168.23.1 |
255.255.255.0 |
|
|
| g0/0/2 |
192.168.62.1 |
255.255.255.0 |
|
|
| loopback0 |
10.10.2.2 |
255.255.255.0 |
|
AR3
| 接口 |
IP地址 |
子网掩码 |
|
|
| g0/0/1 |
192.168.23.2 |
255.255.255.0 |
|
|
| g0/0/2 |
192.168.53.1 |
255.255.255.0 |
|
|
| loopback0 |
10.10.3.3 |
255.255.255.0 |
|
AR4
| 接口 |
IP地址 |
子网掩码 |
|
|
| g0/0/1 |
192.168.64.2 |
255.255.255.0 |
|
|
| g0/0/2 |
192.168.41.2 |
255.255.255.0 |
|
|
| loopback0 |
10.10.4.4 |
255.255.255.0 |
|
AR5
| 接口 |
IP地址 |
子网掩码 |
|
|
| g0/0/2 |
192.168.53.2 |
255.255.255.0 |
|
|
| loopback0 |
10.10.5.5 |
255.255.255.0 |
|
AR6（区域边界路由器）
| 接口 |
IP地址 |
子网掩码 |
|
|
| g0/0/1 |
192.168.64.1 |
255.255.255.0 |
|
|
| g0/0/2 |
192.168.62.2 |
255.255.255.0 |
|
|
| loopback0 |
10.10.6.6 |
255.255.255.0 |
|
配置思路：
一-配置所有路由器的IP地址，回环接口。并确保邻近路由器直连链路可以实现互通
二-划分OSPF区域：
| 区域名称 |
区域类型 |
设备 |
|
|
| 区域0 |
骨干区域 |
AR1:g0/0/0 |
|
|
| 区域0 |
骨干区域 |
AR2 |
|
|
| 区域0 |
骨干区域 |
AR3:g0/0/1 |
|
|
| 区域0 |
骨干区域 |
AR6:g0/0/2 |
|
|
| 区域53 |
普通区域 |
AR5 |
|
|
| 区域53 |
普通区域 |
AR3:g0/0/2 |
|
|
| 区域41 |
特殊区域：NSSA |
AR1:g0/0/2 |
|
|
| 区域41 |
特殊区域：NSSA |
AR6:g0/0/1 |
|
|
| 区域41 |
特殊区域：NSSA |
AR4 |
|
三-验证OSPF多区域互通性
四-区域41开启NSSA
五-AR4/AR5上分别开启默认路由功能
六-观察AR1/AR6两台ABR（区域边界路由器）的角色状态
七-通过更改AR1/AR6 OSPF的RID，以此观察其角色状态变化
实验五

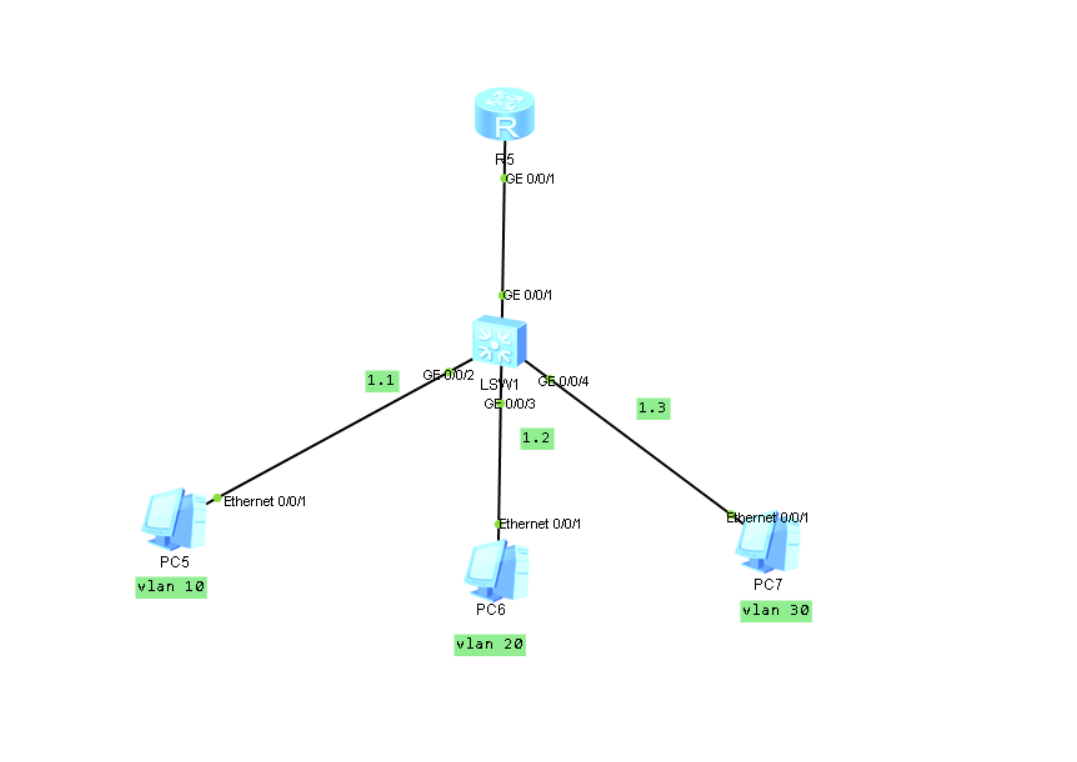

单臂路由
.png)
LWS1（交换机）
| <Huawei>undo terminal monitor ##清除多余信息 Info: Current terminal monitor is off. <Huawei>sys ##进入界面 Enter system view, return user view with Ctrl+Z. [Huawei]vlan batch 10 20 30 ##批量添加vlan网段 Info: This operation may take a few seconds. Please wait for a moment...done. [Huawei]int g0/0/2 ##进入网口 [Huawei-GigabitEthernet0/0/2]port link-type access [Huawei-GigabitEthernet0/0/2]port default vlan 10 [Huawei-GigabitEthernet0/0/2] [Huawei-GigabitEthernet0/0/2] [Huawei-GigabitEthernet0/0/2]int g0/0/3 [Huawei-GigabitEthernet0/0/3]port link-type access [Huawei-GigabitEthernet0/0/3]port default vlan 20 [Huawei-GigabitEthernet0/0/3] [Huawei-GigabitEthernet0/0/3] [Huawei-GigabitEthernet0/0/3]int g0/0/4 [Huawei-GigabitEthernet0/0/4]port link-type access [Huawei-GigabitEthernet0/0/4]por [Huawei-GigabitEthernet0/0/4]port de [Huawei-GigabitEthernet0/0/4]port default vlan 30 [Huawei-GigabitEthernet0/0/4] [Huawei-GigabitEthernet0/0/4]int g0/0/1 [Huawei-GigabitEthernet0/0/1]port link-type tr [Huawei-GigabitEthernet0/0/1]port link-type trunk [Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan all |
R5（路由器）
| <Huawei>undo terminal monitor Info: Current terminal monitor is off. <Huawei>sys Enter system view, return user view with Ctrl+Z. [Huawei]int g0/0/1 [Huawei-GigabitEthernet0/0/1]int g0/0/1.1 [Huawei-GigabitEthernet0/0/1.1]ip ad [Huawei-GigabitEthernet0/0/1.1]ip address 192.168.2.254 24 [Huawei-GigabitEthernet0/0/1.1]dot1q termination vid 10 [Huawei-GigabitEthernet0/0/1.1]q [Huawei] ##错误 [Huawei]int g0/0/1.1 [Huawei-GigabitEthernet0/0/1.1]undo ip address 192.168.2.254 24 ##删除错误IP [Huawei-GigabitEthernet0/0/1.1]ip address 192.168.1.254 24 ##重新添加 [Huawei-GigabitEthernet0/0/1.1] [Huawei-GigabitEthernet0/0/1.1]dot1q termination vid 10 ##封装 Error: Failed to configure the interface because the VLAN has been configured on interface GigabitEthernet0/0/1.1. ##修改 [Huawei-GigabitEthernet0/0/1.1]int g0/0/1.2 [Huawei-GigabitEthernet0/0/1.2]ip ad [Huawei-GigabitEthernet0/0/1.2]ip address 192.168.2.254 24 [Huawei-GigabitEthernet0/0/1.2]dot1q termination vid 20 [Huawei-GigabitEthernet0/0/1.2] [Huawei-GigabitEthernet0/0/1.2]int g0/0/1.3 [Huawei-GigabitEthernet0/0/1.3] [Huawei-GigabitEthernet0/0/1.3]ip ad [Huawei-GigabitEthernet0/0/1.3]ip address 192.168.3.254 24 [Huawei-GigabitEthernet0/0/1.3]dot1q termination vid 30 [Huawei-GigabitEthernet0/0/1.3]arp broadcast enable ##开启设备 [Huawei-GigabitEthernet0/0/1.3] [Huawei-GigabitEthernet0/0/1.3]int g0/0/1.2 [Huawei-GigabitEthernet0/0/1.2] [Huawei-GigabitEthernet0/0/1.2]arp broadcast enable [Huawei-GigabitEthernet0/0/1.2] [Huawei-GigabitEthernet0/0/1.2]int g0/0/1.1 [Huawei-GigabitEthernet0/0/1.1]arp broadcast enable |

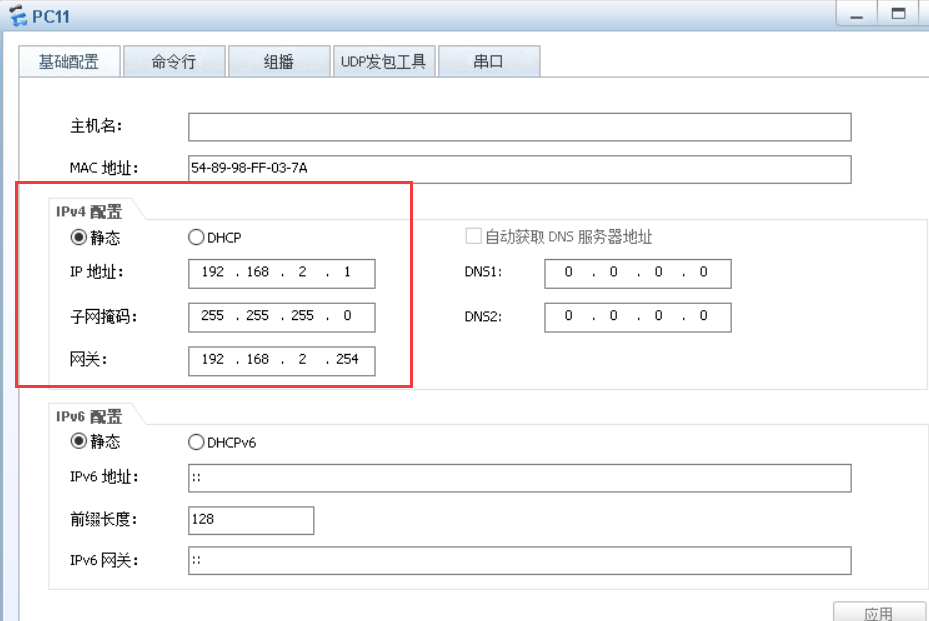

PC机IP规划
.png)
.png)
.png)

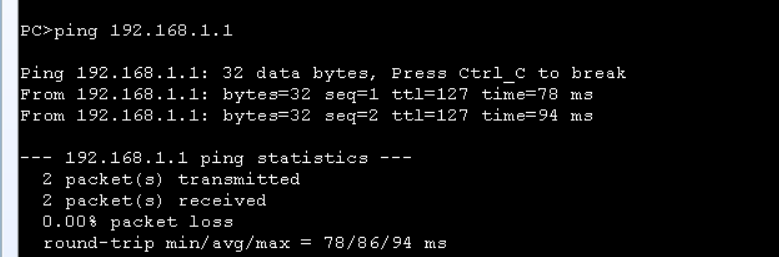

最后验证（三台PC互ping）：
.png)
.png)
.png)
.png)
实验六
Telnet：

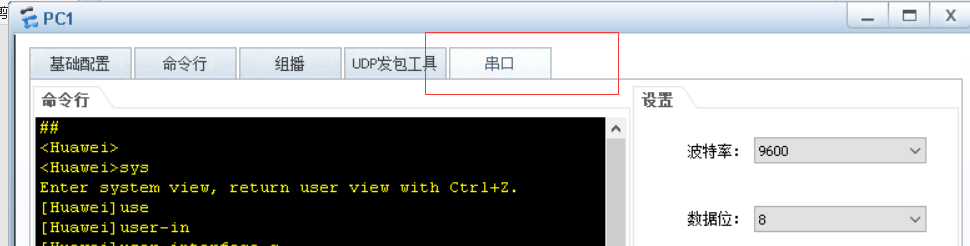

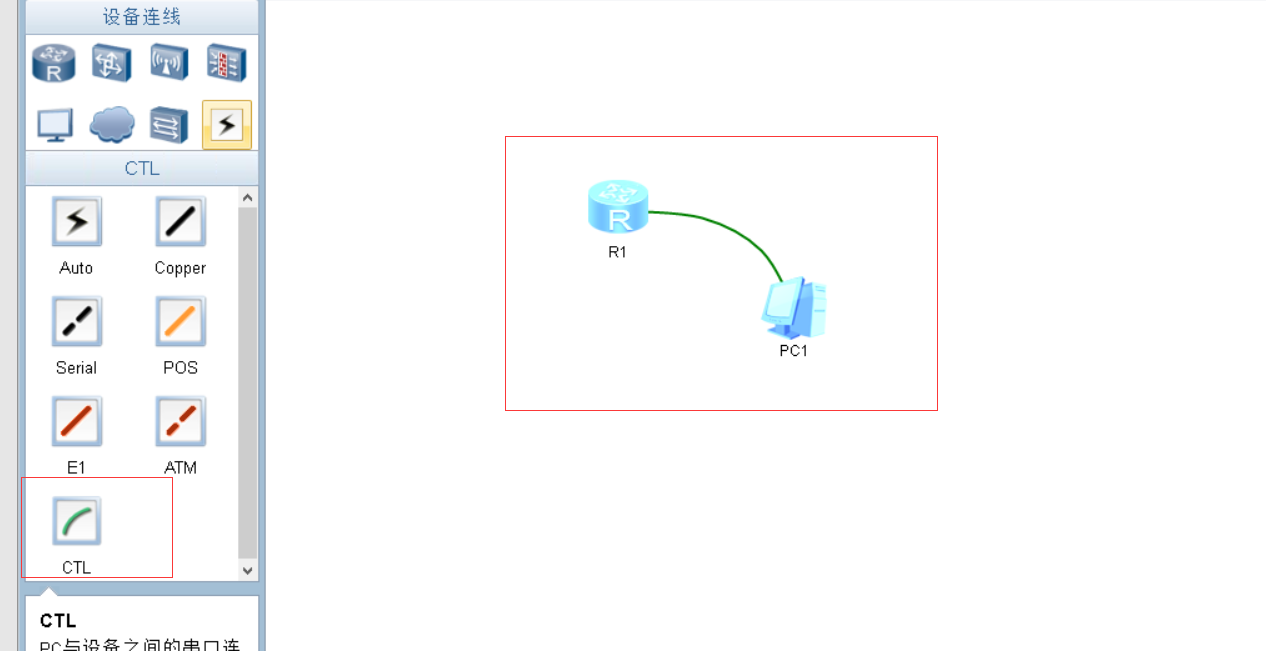

1、 密码模式
设置密码
.png)
.png)
| ## <Huawei> <Huawei>sys Enter system view, return user view with Ctrl+Z. [Huawei]user-interface console 0 ##进入console 0接口 [Huawei-ui-console0]authentication-mode password ##设置为简单密码模式 [Huawei-ui-console0] [Huawei-ui-console0]set authentication password cipher 123 ##设置密码 [Huawei-ui-console0] [Huawei-ui-console0]user privilege level 3 ##密文用户级别为3 [Huawei-ui-console0]q ##退出 [Huawei]q <Huawei>q User interface con0 is available Please Press ENTER. Login authentication Password: ##需要输入密码才能登陆了 <Huawei> |
2、 Telnet模式
.png)
R2
| <Huawei>undo ter <Huawei>undo terminal mo <Huawei>undo terminal monitor Info: Current terminal monitor is off. <Huawei>sys Enter system view, return user view with Ctrl+Z. [Huawei]int g0/0/0 [Huawei-GigabitEthernet0/0/0] [Huawei-GigabitEthernet0/0/0]ip address 192.168.1.1 24 [Huawei-GigabitEthernet0/0/0] [Huawei-GigabitEthernet0/0/0]q [Huawei] [Huawei]user-interface vty 0 4 [Huawei-ui-vty0-4]authentication-mode password Please configure the login password (maximum length 16):123456
[Huawei-ui-vty0-4]user privilege level 3 |
R1
| <Huawei>undo terminal monitor Info: Current terminal monitor is off. <Huawei>sys Enter system view, return user view with Ctrl+Z. [Huawei]int g0/0/0 [Huawei-GigabitEthernet0/0/0] [Huawei-GigabitEthernet0/0/0]ip address 192.168.1.1 24 [Huawei-GigabitEthernet0/0/0] [Huawei-GigabitEthernet0/0/0]q [Huawei]q <Huawei> <Huawei>telnet 192.168.1.1 Press CTRL_] to quit telnet mode Trying 192.168.1.1 ... Connected to 192.168.1.1 ... |
实验七：
DHCP模式
.png)
| <Huawei> Sep 26 2021 10:03:41-08:00 Huawei %%01IFPDT/4/IF_STATE(l)[0]:Interface GigabitEt <Huawei>undo terminal monitor Info: Current terminal monitor is off. <Huawei>sys Enter system view, return user view with Ctrl+Z. [Huawei]dhc [Huawei]dhcp en [Huawei]dhcp enable Info: The operation may take a few seconds. Please wait for a moment.done. [Huawei]ip pool 1 Info: It's successful to create an IP address pool. [Huawei-ip-pool-1]network 192.168.1.0 mask 255.255.255.0 [Huawei-ip-pool-1]gateway-list 192.168.1.1 [Huawei-ip-pool-1]excluded-ip-address 192.168.1.2 192.168.1.253 [Huawei-ip-pool-1]dns-list 8.8.8.8 [Huawei-ip-pool-1]q [Huawei]int g0/0/0 [Huawei-GigabitEthernet0/0/0]ip address 192.168.1.1 24 [Huawei-GigabitEthernet0/0/0] [Huawei-GigabitEthernet0/0/0]dhcp select global [Huawei-GigabitEthernet0/0/0] |
详细视频看：https://www.bilibili.com/video/BV1M64y1r7rq?p=14&spm_id_from=pageDriver
实验八：

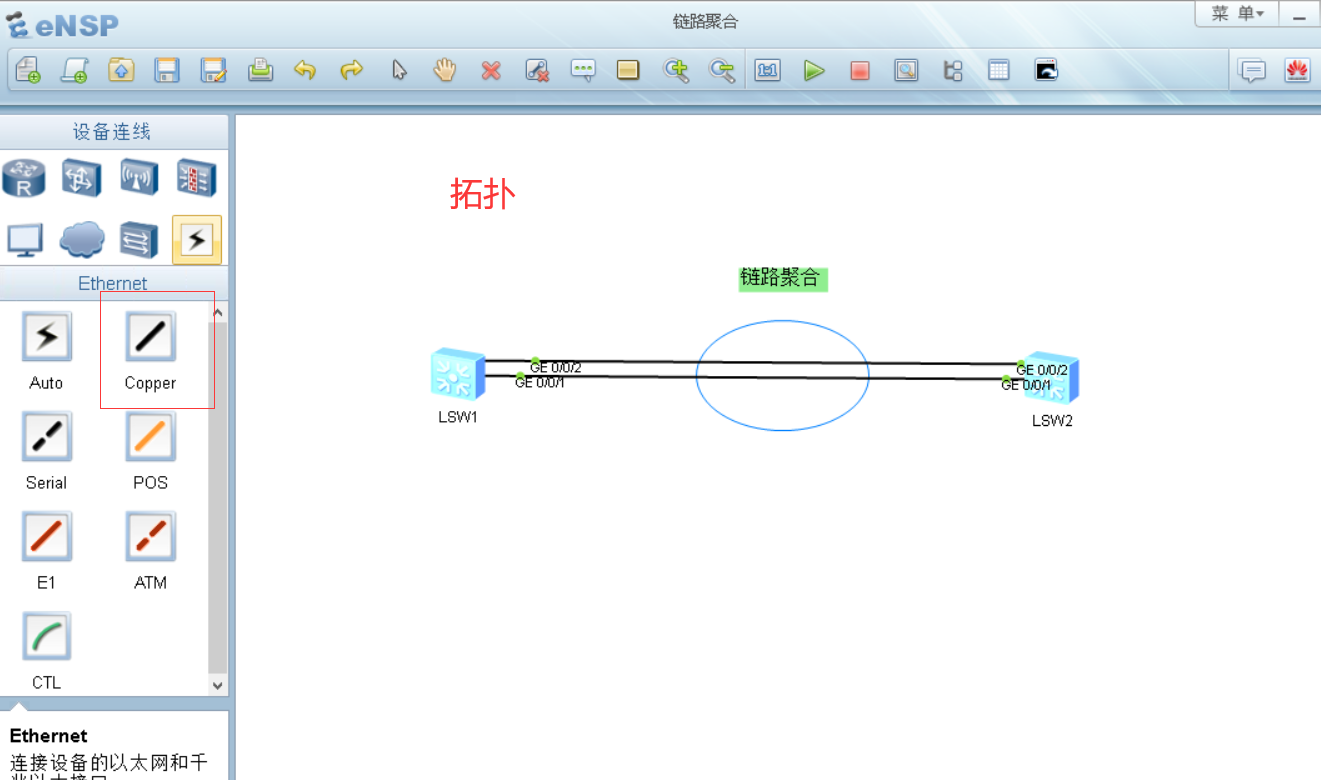

链路聚合
.png)
LSW1
| <Huawei>undo terminal monitor Info: Current terminal monitor is off. <Huawei>sys Enter system view, return user view with Ctrl+Z.
[Huawei]int Eth-Trunk 1 [Huawei-Eth-Trunk1]mode manual load-balance [Huawei-Eth-Trunk1]q [Huawei]int g0/0/1 [Huawei-GigabitEthernet0/0/1]eth-trunk 1 Info: This operation may take a few seconds. Please wait for a moment...done. [Huawei-GigabitEthernet0/0/1]int g0/0/2 [Huawei-GigabitEthernet0/0/2]eth-trunk 1 Info: This operation may take a few seconds. Please wait for a moment...done. [Huawei-GigabitEthernet0/0/2] [Huawei-GigabitEthernet0/0/2] [Huawei-GigabitEthernet0/0/2]q
[Huawei]dis eth-trunk 1 Eth-Trunk1's state information is: WorkingMode: NORMAL Hash arithmetic: According to SIP-XOR-DIP Least Active-linknumber: 1 Max Bandwidth-affected-linknumber: 8 Operate status: up Number Of Up Port In Trunk: 2 -------------------------------------------------------------------------------- PortName Status Weight GigabitEthernet0/0/1 Up 1 GigabitEthernet0/0/2 Up 1
[Huawei] |
LSW2
| <Huawei>undo terminal monitor Info: Current terminal monitor is off. <Huawei>sys Enter system view, return user view with Ctrl+Z. [Huawei]int Eth-Trunk 1 [Huawei-Eth-Trunk1]mode manual load-balance [Huawei-Eth-Trunk1]q [Huawei]int g0/0/1 [Huawei-GigabitEthernet0/0/1]eth-trunk 1 Info: This operation may take a few seconds. Please wait for a moment...done. [Huawei-GigabitEthernet0/0/1]int g0/0/2 [Huawei-GigabitEthernet0/0/2]eth-trunk 1 Info: This operation may take a few seconds. Please wait for a moment...done. [Huawei-GigabitEthernet0/0/2] |
实验九：

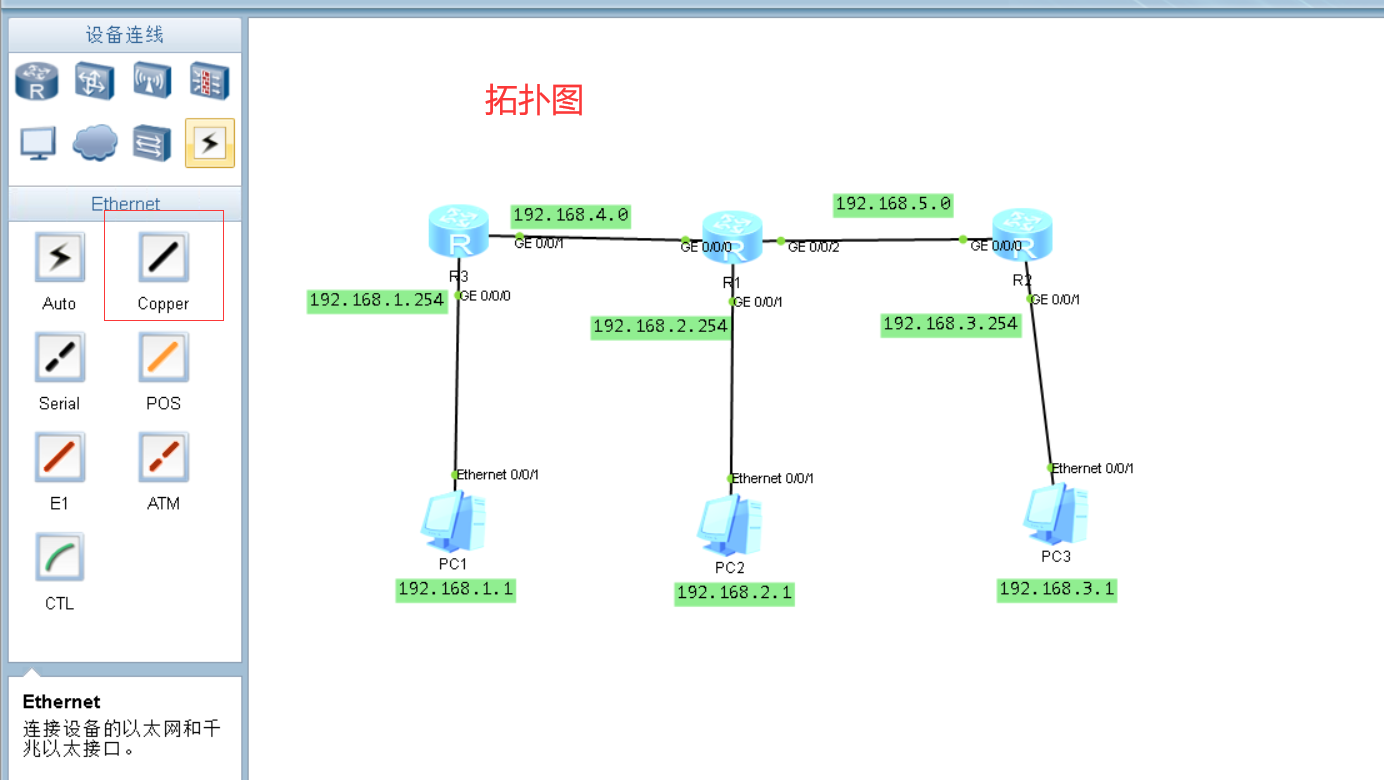

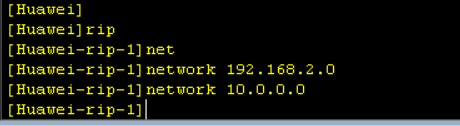

RIP使用
.png)
R3
| <Huawei>undo terminal monitor Info: Current terminal monitor is off. <Huawei>sys Enter system view, return user view with Ctrl+Z. [Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 192.168.1.254 24 [Huawei-GigabitEthernet0/0/0] [Huawei-GigabitEthernet0/0/0]int g0/0/1 [Huawei-GigabitEthernet0/0/1]ip address 192.168.4.1 24 [Huawei-GigabitEthernet0/0/1] [Huawei-GigabitEthernet0/0/1]ip rou [Huawei-GigabitEthernet0/0/1]q [Huawei]
[Huawei]dis ip routing-table Route Flags: R - relay, D - download to fib ------------------------------------------------------------------------------ Routing Tables: Public Destinations : 6 Routes : 6 Destination/Mask Proto Pre Cost Flags NextHop Interface 127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0 127.0.0.1/32 Direct 0 0 D 127.0.0.1 InLoopBack0 192.168.1.0/24 Direct 0 0 D 192.168.1.254 GigabitEthernet 0/0/0 192.168.1.254/32 Direct 0 0 D 127.0.0.1 GigabitEthernet 0/0/0 192.168.4.0/24 Direct 0 0 D 192.168.4.1 GigabitEthernet 0/0/1 192.168.4.1/32 Direct 0 0 D 127.0.0.1 GigabitEthernet 0/0/1 [Huawei]rip [Huawei-rip-1]network 192.168.1.0 [Huawei-rip-1]network 192.168.4.0 [Huawei-rip-1] |
R1
| The device is running! <Huawei>undo <Huawei>undo ter <Huawei>undo terminal mo <Huawei>undo terminal monitor Info: Current terminal monitor is off. <Huawei>sys Enter system view, return user view with Ctrl+Z. [Huawei]int g0/0/0 [Huawei-GigabitEthernet0/0/0]ip address 192.168.4.2 24 [Huawei-GigabitEthernet0/0/0] [Huawei-GigabitEthernet0/0/0]int g0/0/1 [Huawei-GigabitEthernet0/0/1]ip address 192.168.2.254 24 [Huawei-GigabitEthernet0/0/1] [Huawei-GigabitEthernet0/0/1]int g0/0/2 [Huawei-GigabitEthernet0/0/2] [Huawei-GigabitEthernet0/0/2]ip address 192.168.5.2 24 [Huawei-GigabitEthernet0/0/2] [Huawei-GigabitEthernet0/0/2] [Huawei-GigabitEthernet0/0/2]rip [Huawei-rip-1]network 192.168.2.0 [Huawei-rip-1]network 192.168.4.0 [Huawei-rip-1]network 192.168.5.0 [Huawei-rip-1] |
R2
| The device is running! <Huawei>und <Huawei>undo ter <Huawei>undo terminal mo <Huawei>undo terminal monitor Info: Current terminal monitor is off. <Huawei>sys Enter system view, return user view with Ctrl+Z. [Huawei]int g0/0/0 [Huawei-GigabitEthernet0/0/0]ip address 192.168.5.3 24 [Huawei-GigabitEthernet0/0/0] [Huawei-GigabitEthernet0/0/0]int g0/0/1 [Huawei-GigabitEthernet0/0/1] [Huawei-GigabitEthernet0/0/1]ip address 192.168.3.254 24 [Huawei-GigabitEthernet0/0/1] [Huawei-GigabitEthernet0/0/1] [Huawei-GigabitEthernet0/0/1]rip [Huawei-rip-1]network 192.168.3.0 [Huawei-rip-1]network 192.168.5.0 |
验证
.png)
实验十：

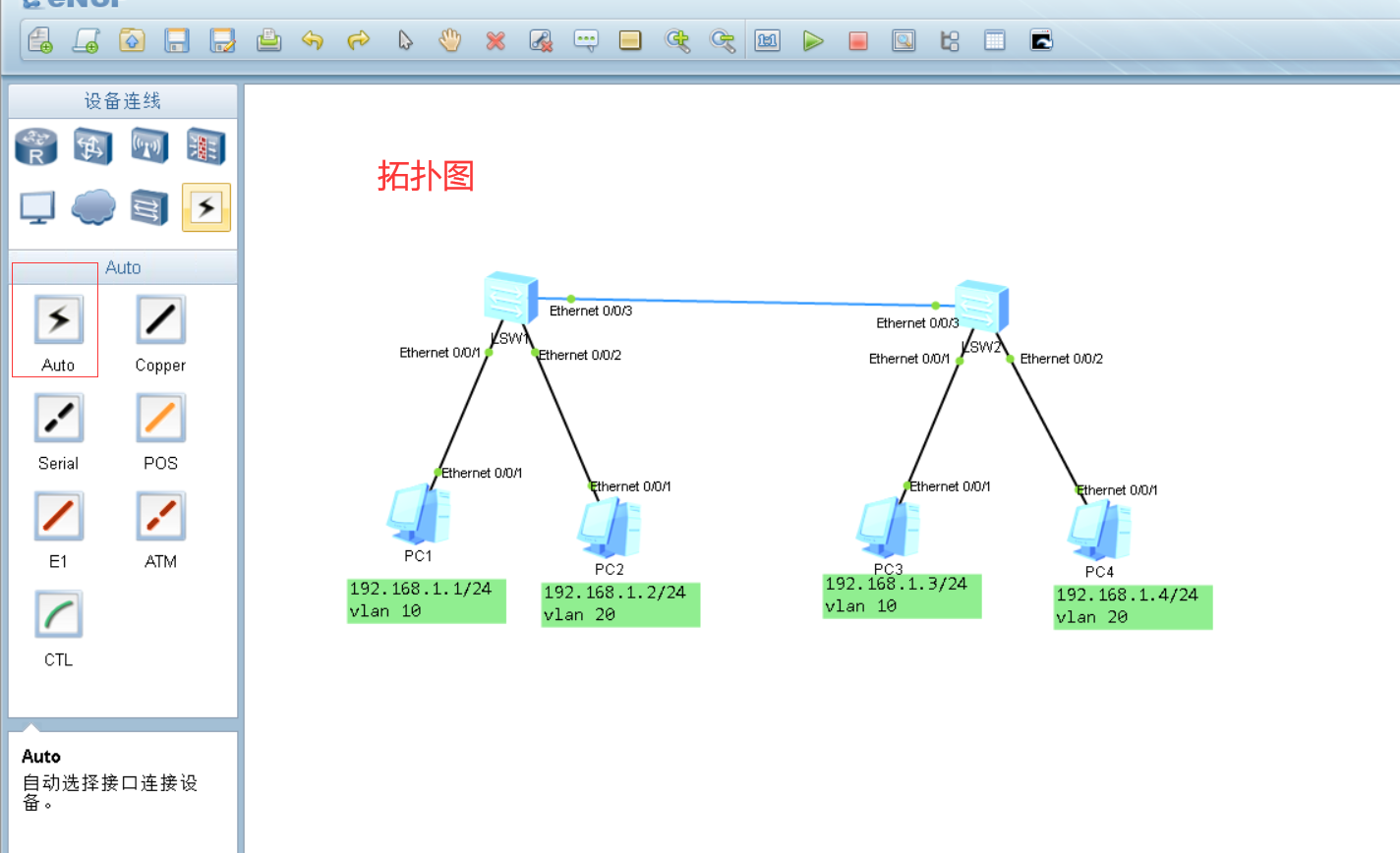

Vlan模式
.png)
PC规划看上图：
三层交换机：S3700
LSW1
| <Huawei>undo terminal monitor Info: Current terminal monitor is off. <Huawei>int eth0/0/1 ^ Error: Unrecognized command found at '^' position. <Huawei>sys Enter system view, return user view with Ctrl+Z. [Huawei]int eth0/0/1 [Huawei-Ethernet0/0/1]port link-type access [Huawei-Ethernet0/0/1]vlan 10 [Huawei-vlan10]vlan 20 ##先定义 [Huawei-vlan20]int eth0/0/1 [Huawei-Ethernet0/0/1]port link-type access
[Huawei-Ethernet0/0/1]port default vlan 10 [Huawei-Ethernet0/0/1] [Huawei-Ethernet0/0/1]int eth0/0/2 [Huawei-Ethernet0/0/2] [Huawei-Ethernet0/0/2]port link-type access [Huawei-Ethernet0/0/2] [Huawei-Ethernet0/0/2]port default vlan 20 [Huawei-Ethernet0/0/2]int eth0/0/3 [Huawei-Ethernet0/0/3] [Huawei-Ethernet0/0/3]port link-type trunk [Huawei-Ethernet0/0/3]port trunk allow-pass vlan 10 20 |
LSW2
| <Huawei>undo terminal monitor Info: Current terminal monitor is off. <Huawei>sys Enter system view, return user view with Ctrl+Z. [Huawei]vlan 10 [Huawei-vlan10]vlan 20 [Huawei-vlan20]int eth0/0/1 [Huawei-Ethernet0/0/1]port link-type access [Huawei-Ethernet0/0/1]port default vlan 10 [Huawei-Ethernet0/0/1] [Huawei-Ethernet0/0/1]int eth0/0/2 [Huawei-Ethernet0/0/2] [Huawei-Ethernet0/0/2]port link-type access [Huawei-Ethernet0/0/2] [Huawei-Ethernet0/0/2]port default vlan 20 [Huawei-Ethernet0/0/2] [Huawei-Ethernet0/0/2]int eth0/0/3 [Huawei-Ethernet0/0/3] [Huawei-Ethernet0/0/3]port link-type trunk [Huawei-Ethernet0/0/3] [Huawei-Ethernet0/0/3]port trunk allow-pass vlan 10 20 |

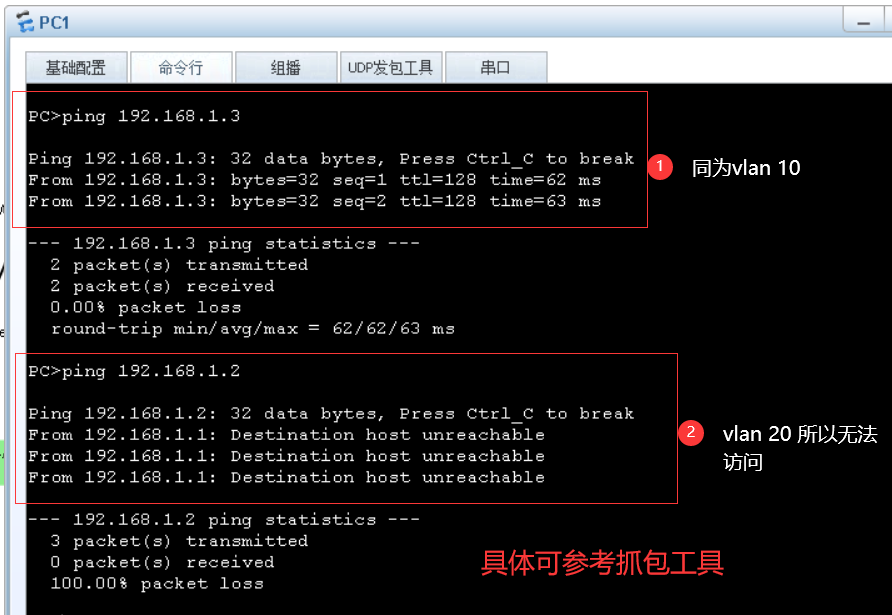

验证：
.png)
实验十一：
综合性实验
详细参考：G:\华为认证（HCIA HCIP HCIE）\路由交换机案例\14基于华为仿真平台eNSP的网络课程教学改革\实验案例\实验手册\实验课11综合实验

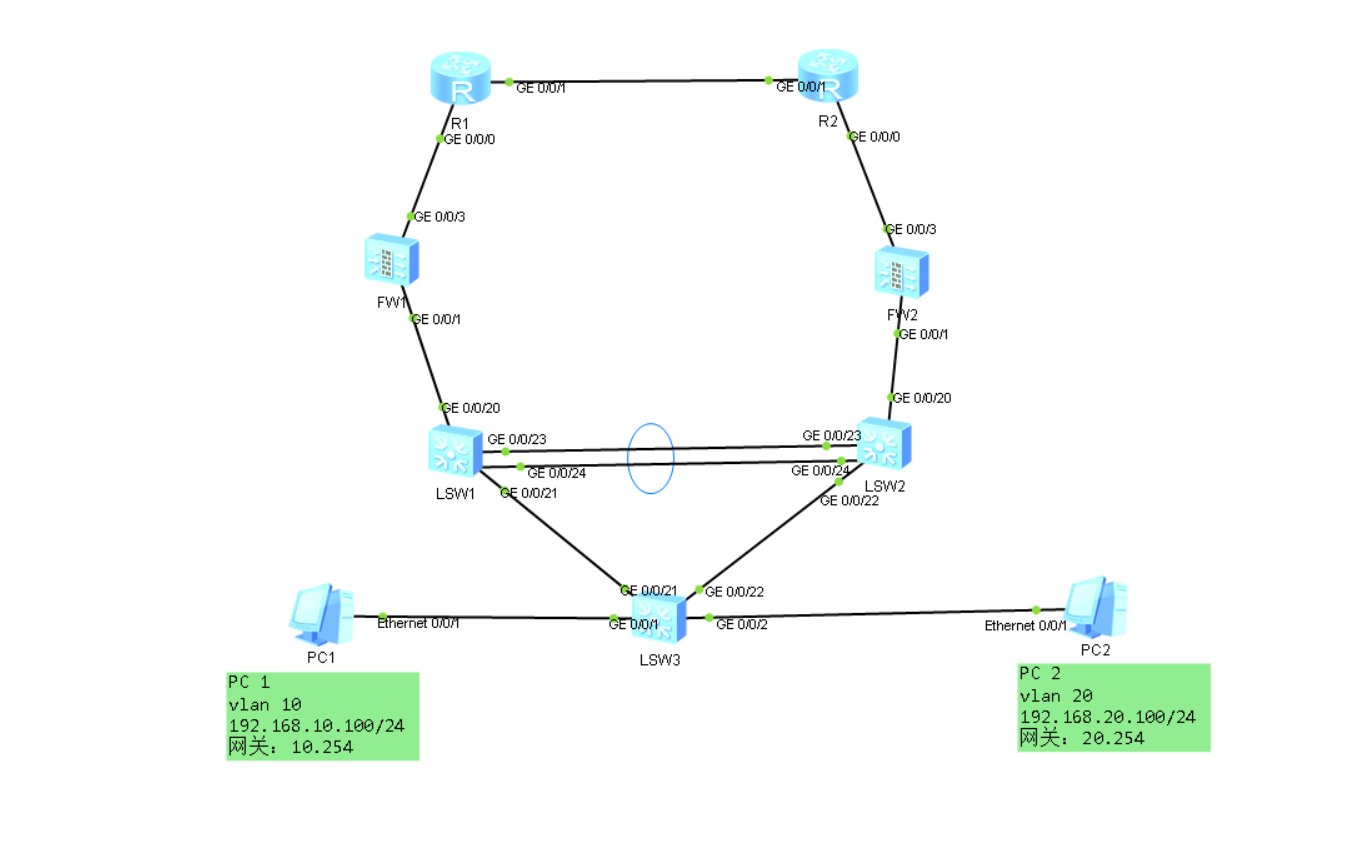

.png)
拓扑表：
| 设备名称 |
接口 |
IP地址 |
VLAN ID |
备注 |
| SW3 |
GE0/0/1 |
- |
10 |
连接PC1的接口 |
| GE0/0/2 |
- |
20 |
连接PC2的接口 |
|
| GE0/0/21 |
- |
Trunk |
连接SW1的接口 |
|
| GE0/0/22 |
- |
Trunk |
连接SW2的接口 |
|
| SW1 |
GE0/0/21 |
- |
Trunk |
连接SW3的接口 |
| GE0/0/23 |
- |
Trunk |
连接SW2的接口（Eth-trunk） |
|
| GE0/0/24 |
- |
Trunk |
连接SW2的接口（Eth-trunk） |
|
| GE0/0/20 |
- |
Trunk |
连接防火墙FW1的接口 |
|
| SW2 |
GE0/0/22 |
- |
Trunk |
连接SW3的接口 |
| GE0/0/23 |
- |
Trunk |
连接SW1的接口（Eth-trunk） |
|
| GE0/0/24 |
- |
Trunk |
连接SW1的接口（Eth-trunk） |
|
| GE0/0/20 |
- |
Trunk |
连接防火墙FW1的接口 |
|
| FW1 |
GE0/0/1.10 |
192.168.10.3/24 |
- |
子接口，对应vlan10 |
| GE0/0/1.10 |
192.168.10.1/24 |
- |
VRRP组1的虚拟IP地址 |
|
| GE0/0/1.20 |
192.168.20.3/24 |
- |
子接口，对应vlan20 |
|
| GE0/0/1.20 |
192.168.20.1/24 |
- |
VRRP组2的虚拟IP地址 |
|
| GE0/0/3 |
10.1.1.1/24 |
- |
连接R1的接口 |
|
| FW2 |
GE0/0/1.10 |
192.168.10.2/24 |
- |
子接口，对应vlan10 |
| GE0/0/1.10 |
192.168.10.1/24 |
- |
VRRP组1的虚拟IP地址 |
|
| GE0/0/1.20 |
192.168.20.2/24 |
- |
子接口，对应vlan20 |
|
| GE0/0/1.20 |
192.168.20.1/24 |
- |
VRRP组2的虚拟IP地址 |
|
| GE0/0/3 |
10.1.2.1/24 |
- |
连接R2的接口 |
|
| R1 |
GE0/0/0 |
10.1.1.2/24 |
- |
连接FW1的接口 |
| R1 |
GE0/0/1 |
10.9.9.1/24 |
- |
连接R2的接口 |
| R2 |
GE0/0/0 |
10.1.2.2/24 |
- |
连接FW2的接口 |
| R2 |
GE0/0/1 |
10.9.9.2/24 |
- |
连接R1的接口 |
| PC1 |
Eth |
192.168.10.100/24 |
- |
网关是192.168.10.1 |
| PC2 |
Eth |
192.168.20.100/24 |
- |
网关是192.168.20.1 |
| 配置接入层交换机SW3 #在SW3上创建VLAN10及20 [SW3] vlan batch 10 20 #在SW3上配置二层接口类型，并加入相应的VLAN [SW3] interface GigabitEthernet0/0/1 [SW3-GigabitEthernet0/0/1] port link-type access [SW3-GigabitEthernet0/0/1] port default vlan 10 [SW3] interface GigabitEthernet0/0/2 [SW3-GigabitEthernet0/0/1] port link-type access [SW3-GigabitEthernet0/0/1] port default vlan 20 [SW3] interface GigabitEthernet0/0/21 [SW3-GigabitEthernet0/0/21] port link-type trunk [SW3-GigabitEthernet0/0/21] port trunk allow-pass vlan all [SW3] interface GigabitEthernet0/0/22 [SW3-GigabitEthernet0/0/22] port link-type trunk [SW3-GigabitEthernet0/0/22] port trunk allow-pass vlan all #在SW3上配置MSTP [SW3] stp mode mstp [SW3] stp enable |
| 配置SW1及SW2 #在SW1上创建VLAN、配置Eth-trunk、配置二层接口并将接口划入相应VLAN [SW1] vlan batch 10 20 [SW1]interface Eth-Trunk 1 [SW1-Eth-Trunk1] mode manual load-balance [SW1-Eth-Trunk1] trunkport GigabitEthernet 0/0/23 [SW1-Eth-Trunk1] trunkport GigabitEthernet 0/0/24 [SW1-Eth-Trunk1] port link-type trunk [SW1-Eth-Trunk1] port trunk allow-pass vlan 10 20 [SW1-Eth-Trunk1] quit # [SW1] interface GigabitEthernet0/0/21 [SW1-GigabitEthernet0/0/21] port link-type trunk [SW1-GigabitEthernet0/0/21] port trunk allow-pass vlan 10 20 # [SW1] interface GigabitEthernet0/0/20 [SW1-GigabitEthernet0/0/20] port link-type trunk [SW1-GigabitEthernet0/0/20] port trunk allow-pass vlan 10 20 #SW1配置MSTP，SW1配置为网络中的STP主根 [SW1] stp mode mstp [SW1] stp instance 0 root primary [SW1] stp enable #在SW2上创建VLAN、配置Eth-trunk、配置二层接口并将接口划入相应VLAN [SW2] vlan batch 10 20 [SW2] interface Eth-Trunk 1 [SW2-Eth-Trunk1] mode manual load-balance [SW2-Eth-Trunk1] trunkport GigabitEthernet 0/0/23 [SW2-Eth-Trunk1] trunkport GigabitEthernet 0/0/24 [SW2-Eth-Trunk1] port link-type trunk [SW2-Eth-Trunk1] port trunk allow-pass vlan 10 20 [SW2-Eth-Trunk1] quit # [SW2] interface GigabitEthernet0/0/22 [SW2-GigabitEthernet0/0/22] port link-type trunk [SW2-GigabitEthernet0/0/22] port trunk allow-pass vlan 10 20 # [SW2] interface GigabitEthernet0/0/20 [SW2-GigabitEthernet0/0/20] port link-type trunk [SW2-GigabitEthernet0/0/20] port trunk allow-pass vlan 10 20 #SW1配置MSTP，SW2配置为网络中的STP次根 [SW1] stp mode mstp [SW1] stp instance 0 root secondary [SW1] stp enable |
| 配置FW1及FW2，使得PC1及PC2能够与自己的网关互通 #在FW1上创建子接口GE0/0/1.10，封装dot1q vlan 10，配置IP地址及VRRP；创建子接口GE0/0/1.20，封装dot1q vlan 20，配置IP地址及VRRP；将上述两个子接口关联到相应安全区域： [Fw1] interface GigabitEthernet 0/0/1.10 [Fw1-GigabitEthernet0/0/1.10] vlan-type dot1q 10 [Fw1-GigabitEthernet0/0/1.10] ip address 192.168.10.3 24 [Fw1-GigabitEthernet0/0/1.10] vrrp vrid 1 virtual-ip 192.168.10.1 master [Fw1-GigabitEthernet0/0/1.10] quit # [Fw1] interface GigabitEthernet 0/0/1.20 [Fw1-GigabitEthernet0/0/1.20] vlan-type dot1q 20 [Fw1-GigabitEthernet0/0/1.20] ip address 192.168.20.3 24 [Fw1-GigabitEthernet0/0/1.20] vrrp vrid 2 virtual-ip 192.168.20.1 master [Fw1-GigabitEthernet0/0/1.20] quit # [Fw1] firewall zone trust [Fw1-zone-trust] add interface GigabitEthernet 0/0/1.10 [Fw1-zone-trust] quit [Fw1] firewall zone dmz [Fw1-zone-dmz] add interface GigabitEthernet 0/0/1.20 [Fw1-zone-dmz] quit #在FW2上创建子接口GE0/0/1.10，封装dot1q vlan 10，配置IP地址及VRRP；创建子接口GE0/0/1.20，封装dot1q vlan 20，配置IP地址及VRRP；将上述两个子接口关联到相应安全区域： [Fw2] interface GigabitEthernet 0/0/1.10 [Fw2-GigabitEthernet0/0/1.10] vlan-type dot1q 10 [Fw2-GigabitEthernet0/0/1.10] ip address 192.168.10.2 24 [Fw2-GigabitEthernet0/0/1.10] vrrp vrid 1 virtual-ip 192.168.10.1 slave [Fw2-GigabitEthernet0/0/1.10] quit [Fw2] interface GigabitEthernet 0/0/1.20 [Fw2-GigabitEthernet0/0/1.20] vlan-type dot1q 20 [Fw2-GigabitEthernet0/0/1.20] ip address 192.168.20.2 24 [Fw2-GigabitEthernet0/0/1.20] vrrp vrid 2 virtual-ip 192.168.20.1 slave [Fw2-GigabitEthernet0/0/1.20] quit # [Fw2] firewall zone trust [Fw2-zone-untrust] add interface GigabitEthernet 0/0/1.10 [Fw2-zone-untrust] quit [Fw2] firewall zone dmz [Fw2-zone-untrust] add interface GigabitEthernet 0/0/1.20 [Fw2-zone-untrust] quit 完成上述配置后PC1与PC2就能够跟自己的网关互通了，PC1属于trust区域，防火墙可能默认的安全策略放行了local-trust安全区域的inbound及outbound策略，因此PC1可直接ping通网关192.168.10.1；而local-dmz的inbound及outbound的默认策略都是deny的，因此PC2可能无法直接ping通网关192.168.20.1，但是这并不影响实验，如果想要观察实验结果，可以放开local-dmz之间的安全策略。 |
| 配置FW1及FW2，与R1、R2建立OSPF邻居关系 #在FW1配置GE0/0/3口，并且运行OSPF，使用router-id 1.1.1.1 [Fw1] firewall zone untrust [Fw1-zone-untrust] add interface GigabitEthernet 0/0/3 [Fw1] interface GigabitEthernet 0/0/3 [Fw1-GigabitEthernet0/0/3] ip address 10.1.1.1 24 [Fw1] ospf 1 router-id 1.1.1.1 [Fw1-ospf-1] area 0 [Fw1-ospf-1-0.0.0.0] network 10.1.1.0 0.0.0.255 [Fw1-ospf-1-0.0.0.0] network 192.168.10.0 0.0.0.255 [Fw1-ospf-1-0.0.0.0] network 192.168.20.0 0.0.0.255 [Fw1-ospf-1-0.0.0.0] quit [Fw1-ospf-1] quit #在FW2配置GE0/0/3口，并且运行OSPF，使用router-id 2.2.2.2 [Fw2] firewall zone untrust [Fw2-zone-untrust] add interface GigabitEthernet 0/0/3 [Fw2] interface GigabitEthernet 0/0/3 [Fw2-GigabitEthernet0/0/3] ip address 10.1.2.1 24 [Fw2] ospf 1 router-id 2.2.2.2 [Fw2-ospf-1] area 0 [Fw2-ospf-1-0.0.0.0] network 10.1.2.0 0.0.0.255 [Fw2-ospf-1-0.0.0.0] network 192.168.10.0 0.0.0.255 [Fw2-ospf-1-0.0.0.0] network 192.168.20.0 0.0.0.255 [Fw2-ospf-1-0.0.0.0] quit [Fw2-ospf-1] quit #配置R1 [R1] interface GigabitEthernet 0/0/0 [R1-GigabitEthernet0/0/0] ip address 10.1.1.2 24 [R1] interface GigabitEthernet 0/0/1 [R1-GigabitEthernet0/0/1] ip address 10.9.9.1 24 # [R1] ospf 1 router-id 3.3.3.3 [R1-ospf-1] area 0 [R1-ospf-1-0.0.0.0] network 10.1.1.0 0.0.0.255 [R1-ospf-1-0.0.0.0] network 10.9.9.0 0.0.0.255 [R1-ospf-1-0.0.0.0] quit [R1-ospf-1] quit #配置R2 [R2] interface GigabitEthernet 0/0/0 [R2-GigabitEthernet0/0/0] ip address 10.1.2.2 24 [R2] interface GigabitEthernet 0/0/1 [R2-GigabitEthernet0/0/1] ip address 10.9.9.2 24 # [R2] ospf 1 router-id 4.4.4.4 [R2-ospf-1] area 0 [R2-ospf-1-0.0.0.0] network 10.1.2.0 0.0.0.255 [R2-ospf-1-0.0.0.0] network 10.9.9.0 0.0.0.255 [R2-ospf-1-0.0.0.0] quit [R2-ospf-1] quit |
| FW1及FW2配置双机热备 FW1的配置增加如下： [FW1] interface GigabitEthernet0/0/3 [FW1-GigabitEthernet 0/0/3] hrp track master # [FW1] Interface GigabitEthernet 0/0/2 #配置用于HRP的接口 [FW1-GigabitEthernet 0/0/2] Ip address 1.1.1.1 24 [FW1-GigabitEthernet 0/0/2] quit [FW1] firewall zone name heart #创建一个安全区域并关联该接口 [FW1-zone-heart] set priority 90 [FW1-zone-heart] add interface GigabitEthernet 0/0/2 [FW1-zone-heart] quit [FW1] hrp interface GigabitEthernet0/0/2 #将GE0/0/2口配置为HRP心跳接口 [FW1] hrp ospf-cost adjust-enable # 配置根据HRP状态调整OSPF相关的COST值命令功能。 [FW1] hrp preempt delay 30 [FW1] hrp enable #启用HRP备份功能，启用之后就会协商主备，主设备显示HRP_M，备设备显示HRP_S。两端首次协商出主备后，主用设备将向备用设备备份配置和连接状态等信息 FW2的配置增加如下： [Fw2] interface GigabitEthernet0/0/3 [Fw2-GigabitEthernet 0/0/3] hrp track master # [Fw2] Interface GigabitEthernet 0/0/2 #配置用于HRP的接口 [Fw2-GigabitEthernet 0/0/2] Ip address 1.1.1.2 24 [Fw2-GigabitEthernet 0/0/2] quit [Fw2] firewall zone name heart #创建一个安全区域并关联该接口 [Fw2-zone-heart] set priority 90 [Fw2-zone-heart] add interface GigabitEthernet 0/0/2 [Fw2-zone-heart] quit [Fw2] hrp interface GigabitEthernet0/0/2 #将GE0/0/2口配置为HRP心跳接口 [Fw2] hrp ospf-cost adjust-enable # 配置根据HRP状态调整OSPF相关的COST值命令功能。 [Fw2] hrp preempt delay 30 [Fw2] hrp enable 防火墙主备跑起来后，FW2作为备机在通告192.168.10.0/24及192.168.20.0/24路由给R2的时候，路由的cost就会变成65500；而FW1作为主设备，其在通告路由给R1的时候，路由的metric不会调整，因此untrust区域内的用户到trust的流量，会走FW1。 |
| 在主设备FW1上完成配置，使得PC1能够ping 10.9.9.0/24网络 #FW1上部署interzone策略，允许PC1所在网段访问untrust区域： HRP_M[Fw1] policy interzone trust untrust outbound HRP_M[Fw1-policy-interzone-trust-untrust-outbound] policy 0 HRP_M[Fw1-policy-interzone-trust-untrust-outbound-0] policy source 192.168.10.0 0.0.0.255 HRP_M[Fw1-policy-interzone-trust-untrust-outbound-0] action permit HRP_M[Fw1-policy-interzone-trust-untrust-outbound-0] quit HRP_M[Fw1-policy-interzone-trust-untrust-outbound] quit 由于部署了防火墙双机热备，因此在主设备FW1上所配置的策略会同步到备份设备FW2上。 如此一来，PC1即可ping通10.9.9.1或10.9.9.2。 |
