原题复现
Synchronous HDLC framing involves decoding a continuous bit stream of data to look for bit patterns that indicate the beginning and end of frames (packets). Seeing exactly 6 consecutive 1s (i.e., 01111110) is a "flag" that indicate frame boundaries. To avoid the data stream from accidentally containing "flags", the sender inserts a zero after every 5 consecutive 1s which the receiver must detect and discard. We also need to signal an error if there are 7 or more consecutive 1s.
Create a finite state machine to recognize these three sequences:
- 0111110: Signal a bit needs to be discarded (disc).
- 01111110: Flag the beginning/end of a frame (flag).
- 01111111...: Error (7 or more 1s) (err).
When the FSM is reset, it should be in a state that behaves as though the previous input were 0.

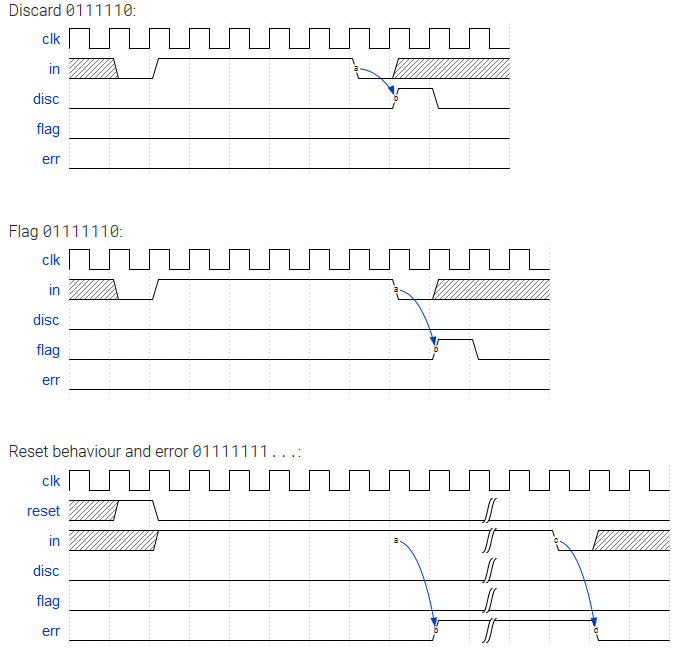

Here are some example sequences that illustrate the desired operation.
审题
根据题目来看，这是一个序列识别的一个问题，如果识别到序列有连续5个1（即1111_10），则disc有效；
如果有连续6个1（即1111_110），则flag有效；
如果有连续7个1或者更多的1，则err有效。

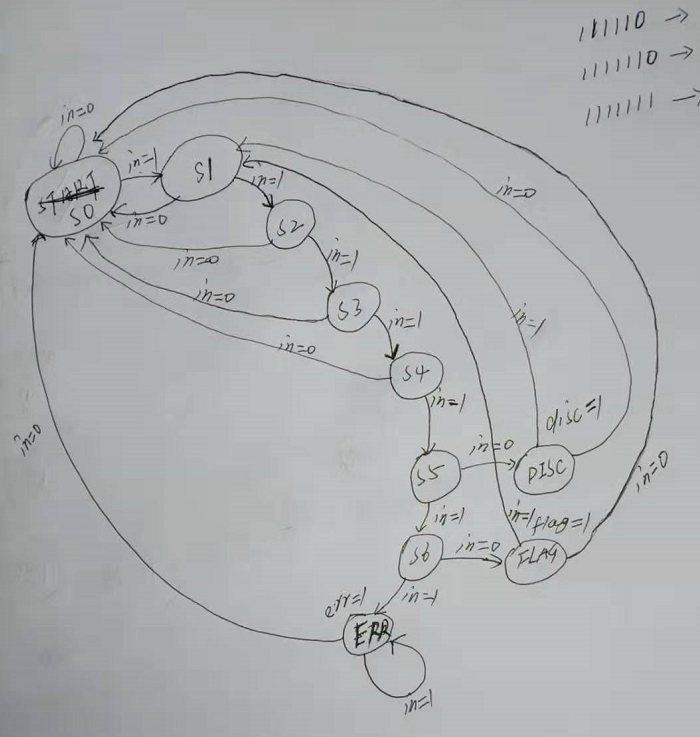

状态转移图
就是这样一个问题，我们根据上述波形图来画出状态转移图：
我的设计
根据状态转移图，很容易得到设计：
-
module top_module(
-
input clk,
-
input reset, // Synchronous reset
-
input in,
-
output disc,
-
output flag,
-
output err);
-
-
localparam S0 = 0, S1 = 1, S2 = 2, S3 = 3, S4 = 4, S5 = 5, S6 = 6, DISC = 7, FLAG = 8, ERR = 9;
-
reg [3:0] state, next_state;
-
-
always@(*) begin
-
case(state)
-
S0: begin
-
if(in) next_state = S1;
-
else next_state = S0;
-
end
-
S1: begin
-
if(in) next_state = S2;
-
else next_state = S0;
-
end
-
S2: begin
-
if(in) next_state = S3;
-
else next_state = S0;
-
end
-
S3: begin
-
if(in) next_state = S4;
-
else next_state = S0;
-
end
-
S4: begin
-
if(in) next_state = S5;
-
else next_state = S0;
-
end
-
S5: begin
-
if(in) next_state = S6;
-
else next_state = DISC;
-
end
-
S6: begin
-
if(in) next_state = ERR;
-
else next_state = FLAG;
-
end
-
DISC: begin
-
if(in) next_state = S1;
-
else next_state = S0;
-
end
-
FLAG: begin
-
if(in) next_state = S1;
-
else next_state = S0;
-
end
-
ERR: begin
-
if(in) next_state = ERR;
-
else next_state = S0;
-
end
-
default: begin
-
next_state = S0;
-
end
-
-
endcase
-
end
-
-
always@(posedge clk)begin
-
if(reset) state <= S0;
-
else state <= next_state;
-
end
-
-
assign disc = (state == DISC)?1:0;
-
assign flag = (state == FLAG)?1:0;
-
assign err = (state == ERR)?1:0;
-
-
-
-
-
-
-
endmodule
测试成功！
这是序列检测的一个典型做法，校招可没少做这种题目，只是好像都还要比这个简单。
