HDLBits 系列（44）状态机补录

前言

今天补一个状态机的题目，也是这个系列的题目之一，但是由于之前对题目有点疑惑，今天得到博友反馈，让我明白了这个题目的意思，记录一下。
原题链接

原题复现

Consider a finite state machine that is used to control some type of motor. The FSM has inputs x and y, which come from the motor, and produces outputs f and g, which control the motor. There is also a clock input called clk and a reset input called resetn.

The FSM has to work as follows. As long as the reset input is asserted, the FSM stays in a beginning state, called state A. When the reset signal is de-asserted, then after the next clock edge the FSM has to set the output f to 1 for one clock cycle. Then, the FSM has to monitor the x input. When x has produced the values 1, 0, 1 in three successive clock cycles, then g should be set to 1 on the following clock cycle. While maintaining g = 1 the FSM has to monitor the y input. If y has the value 1 within at most two clock cycles, then the FSM should maintain g = 1 permanently (that is, until reset). But if y does not become 1 within two clock cycles, then the FSM should set g = 0 permanently (until reset).

(The original exam question asked for a state diagram only. But here, implement the FSM.)

Module Declaration

module top_module ( input clk, input resetn, // active-low synchronous reset input x, input y, output f, output g
);






1

2

3

4

5

6

7

8

9

10


题目解析

当时没有明白的还是这一句话：
While maintaining g = 1 the FSM has to monitor the y input. If y has the value 1 within at most two clock cycles, then the FSM should maintain g = 1 permanently (that is, until reset). But if y does not become 1 within two clock cycles, then the FSM should set g = 0 permanently (until reset).
更确切的是这句话：
While maintaining g = 1 the FSM has to monitor the y input. If y has the value 1 within at most two clock cycles, then the FSM should maintain g = 1 permanently (that is, until reset).
是接下来的两个时钟周期内，有一个y为1就可以了，之后的输出永久为1，如果没有一个为1，则永久为0.

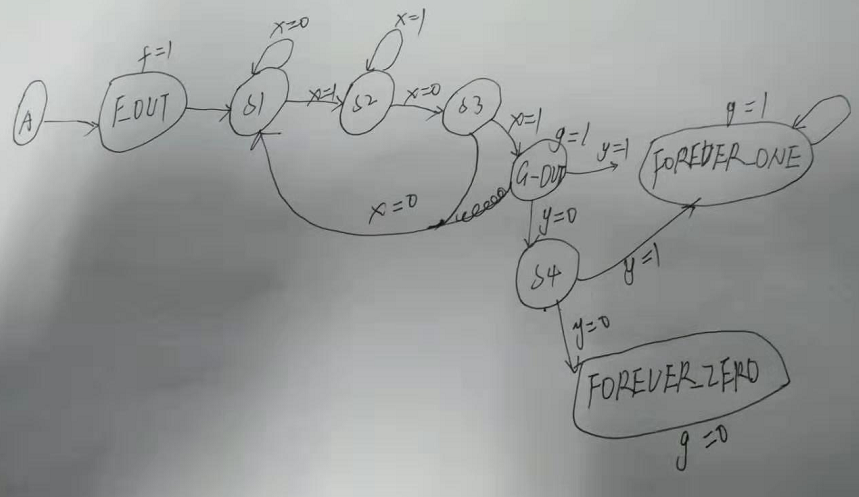

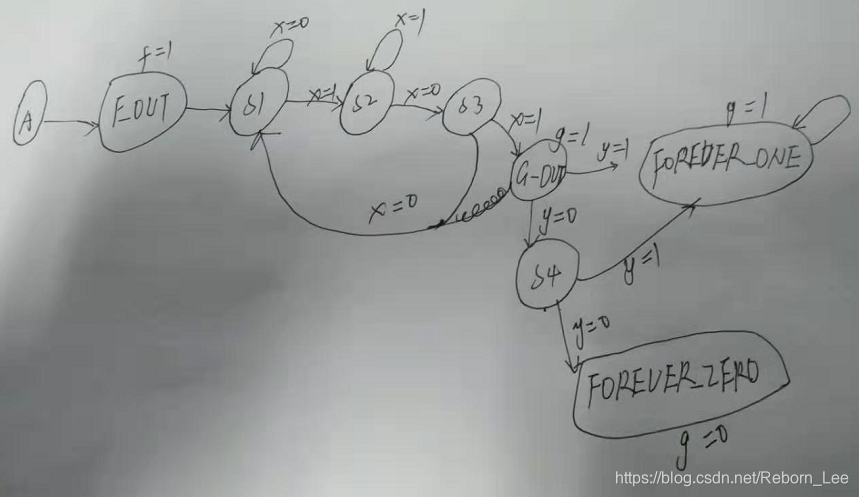

根据题目，给出状态转移图：

状态转移图

设计文件

module top_module ( input clk, input resetn, // active-low synchronous reset input x, input y, output f, output g
); parameter A = 4'd0, S1 = 4'd1, S2 = 4'd2, S3 = 4'd3, S4 = 4'd4; parameter G_OUT= 4'd5, FOREVER_ONE = 4'd6, FOREVER_ZERO = 4'd7; parameter F_OUT = 4'd8; reg [3:0] current_state; reg [3:0] next_state; always@(posedge clk)begin if(resetn == 1'b0)begin current_state <= A; end else begin current_state <= next_state; end end always@(*)begin case(current_state) A:begin next_state = F_OUT; end F_OUT:begin next_state = S1; end S1:begin next_state = x ? S2 : S1; end S2:begin next_state = x ? S2 : S3; end S3:begin next_state = x ? G_OUT: S1; end G_OUT:begin next_state = y ? FOREVER_ONE : S4; end S4:begin next_state = y ? FOREVER_ONE : FOREVER_ZERO; end FOREVER_ONE:begin next_state = FOREVER_ONE; end FOREVER_ZERO:begin next_state = FOREVER_ZERO; end default:begin next_state = A; end endcase end assign f = (current_state == F_OUT); assign g = (current_state == S4 || current_state == G_OUT || current_state == FOREVER_ONE); endmodule






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64
