简单的利用鲲鹏服务器搭建OpenStack平台实践(中)

举报
Jack20 发表于 2021/01/14 14:49:09 2021/01/14
【摘要】 在上一篇中(https://bbs.huaweicloud.cn/blogs/237166),分别介绍了:1.搭建基础实验环境2.安装Keystone认证服务组件(控制节点)3 安装Glance镜像服务组件(控制节点)>>点我查看利用鲲鹏服务器搭建OpenStack平台实践(上)<<接下来我们继续介绍最重要的几点:4 安装Nova计算服务(控制节点)4.1 在控制节点安装nova计算服务#...

在上一篇中分别介绍了:

1搭建基础实验环境

2安装Keystone认证服务组件(控制节点)

3安装Glance镜像服务组件(控制节点)

>>点我查看利用鲲鹏服务器搭建OpenStack平台实践(上)<<


下面继续介绍最重要的几点:

4 安装Nova计算服务(控制节点)

4.1 在控制节点安装nova计算服务

创建nova相关数据库,nova服务在本版本新增加了两个数据库,需注意

mysql -u root -p123456
CREATE DATABASE nova_api;
CREATE DATABASE nova;
CREATE DATABASE nova_cell0;
GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'localhost' IDENTIFIED BY 'nova';
GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'%' IDENTIFIED BY 'nova';
GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'localhost' IDENTIFIED BY 'nova';
GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'%' IDENTIFIED BY 'nova';
GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'localhost' IDENTIFIED BY 'nova';
GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'%' IDENTIFIED BY 'nova';
flush privileges;

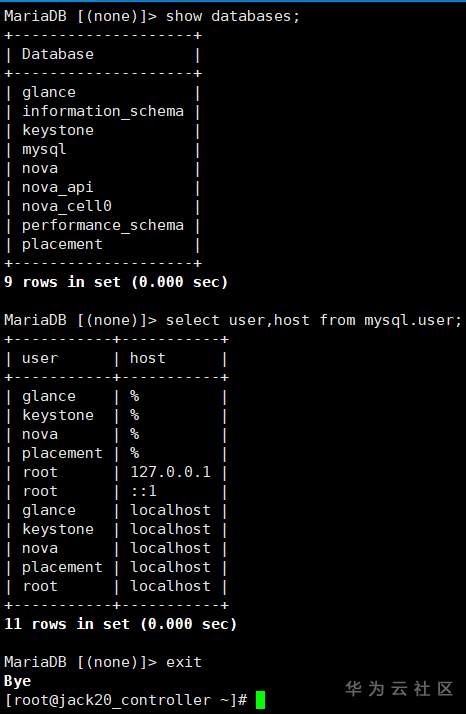

show databases;
select user,host from mysql.user;
exit


4.2 在keystone上面注册nova服务

创建服务证书

(1)在keystone上创建nova用户

cd /server/tools
source admin-openrc.sh
openstack user create --domain default --password=nova nova
openstack user list

(2)在keystone上将nova用户配置为admin角色并添加进service项目

openstack role add --project service --user nova admin

(3)创建nova计算服务实体

openstack service create --name nova --description "OpenStack Compute" compute
openstack service list

(4)创建计算服务的API端点(endpoint)

计算服务compute

openstack endpoint create --region RegionOne compute public http://jack20_controller:8774/v2.1
openstack endpoint create --region RegionOne compute internal http://jack20_controller:8774/v2.1
openstack endpoint create --region RegionOne compute admin http://jack20_controller:8774/v2.1
openstack endpoint list

4.3 控制节点安装nova相关服务

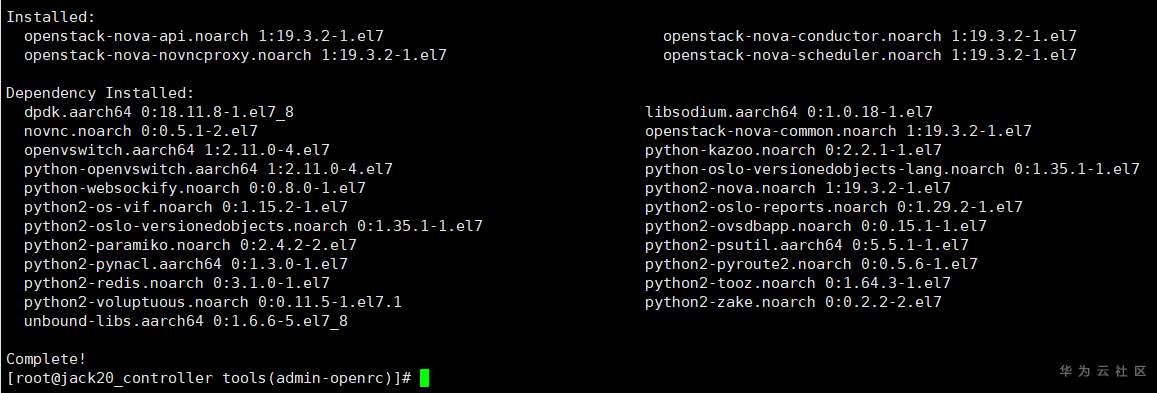

(1)安装nova相关包

yum --enablerepo=centos-openstack-stein,epel install openstack-nova-api openstack-nova-conductor openstack-nova-novncproxy openstack-nova-scheduler -y --nogpgcheck


(2)快速修改nova配置

openstack-config --set  /etc/nova/nova.conf DEFAULT enabled_apis  osapi_compute,metadata
openstack-config --set  /etc/nova/nova.conf api_database connection  mysql+pymysql://nova:nova@jack20_controller/nova_api
openstack-config --set  /etc/nova/nova.conf database connection  mysql+pymysql://nova:nova@jack20_controller/nova
openstack-config --set  /etc/nova/nova.conf DEFAULT transport_url  rabbit://openstack:openstack@jack20_controller
openstack-config --set  /etc/nova/nova.conf api auth_strategy  keystone
openstack-config --set  /etc/nova/nova.conf keystone_authtoken auth_url  http://jack20_controller:5000/v3
openstack-config --set  /etc/nova/nova.conf keystone_authtoken memcached_servers jack20_controller:11211
openstack-config --set  /etc/nova/nova.conf keystone_authtoken auth_type  password
openstack-config --set  /etc/nova/nova.conf keystone_authtoken project_domain_name  Default
openstack-config --set  /etc/nova/nova.conf keystone_authtoken user_domain_name  Default
openstack-config --set  /etc/nova/nova.conf keystone_authtoken project_name  service
openstack-config --set  /etc/nova/nova.conf keystone_authtoken username  nova
openstack-config --set  /etc/nova/nova.conf keystone_authtoken password  nova
openstack-config --set  /etc/nova/nova.conf DEFAULT my_ip 192.168.0.76
openstack-config --set  /etc/nova/nova.conf DEFAULT use_neutron  true
openstack-config --set  /etc/nova/nova.conf DEFAULT firewall_driver  nova.virt.firewall.NoopFirewallDriver
openstack-config --set  /etc/nova/nova.conf vnc enabled true
openstack-config --set  /etc/nova/nova.conf vnc server_listen '$my_ip'
openstack-config --set  /etc/nova/nova.conf vnc server_proxyclient_address '$my_ip'
openstack-config --set  /etc/nova/nova.conf glance api_servers  http://jack20_controller:9292
openstack-config --set  /etc/nova/nova.conf oslo_concurrency lock_path  /var/lib/nova/tmp
openstack-config --set  /etc/nova/nova.conf placement region_name RegionOne
openstack-config --set  /etc/nova/nova.conf placement project_domain_name Default
openstack-config --set  /etc/nova/nova.conf placement project_name service
openstack-config --set  /etc/nova/nova.conf placement auth_type password
openstack-config --set  /etc/nova/nova.conf placement user_domain_name Default
openstack-config --set  /etc/nova/nova.conf placement auth_url http://jack20_controller:5000/v3
openstack-config --set  /etc/nova/nova.conf placement username placement
openstack-config --set  /etc/nova/nova.conf placement password placement
openstack-config --set  /etc/nova/nova.conf scheduler discover_hosts_in_cells_interval 300

默认情况下,计算服务使用内置的防火墙服务。由于网络服务包含了防火墙服务,必须使用`nova.virt.firewall.NoopFirewallDriver`防火墙服务来禁用掉计算服务内置的防火墙服务

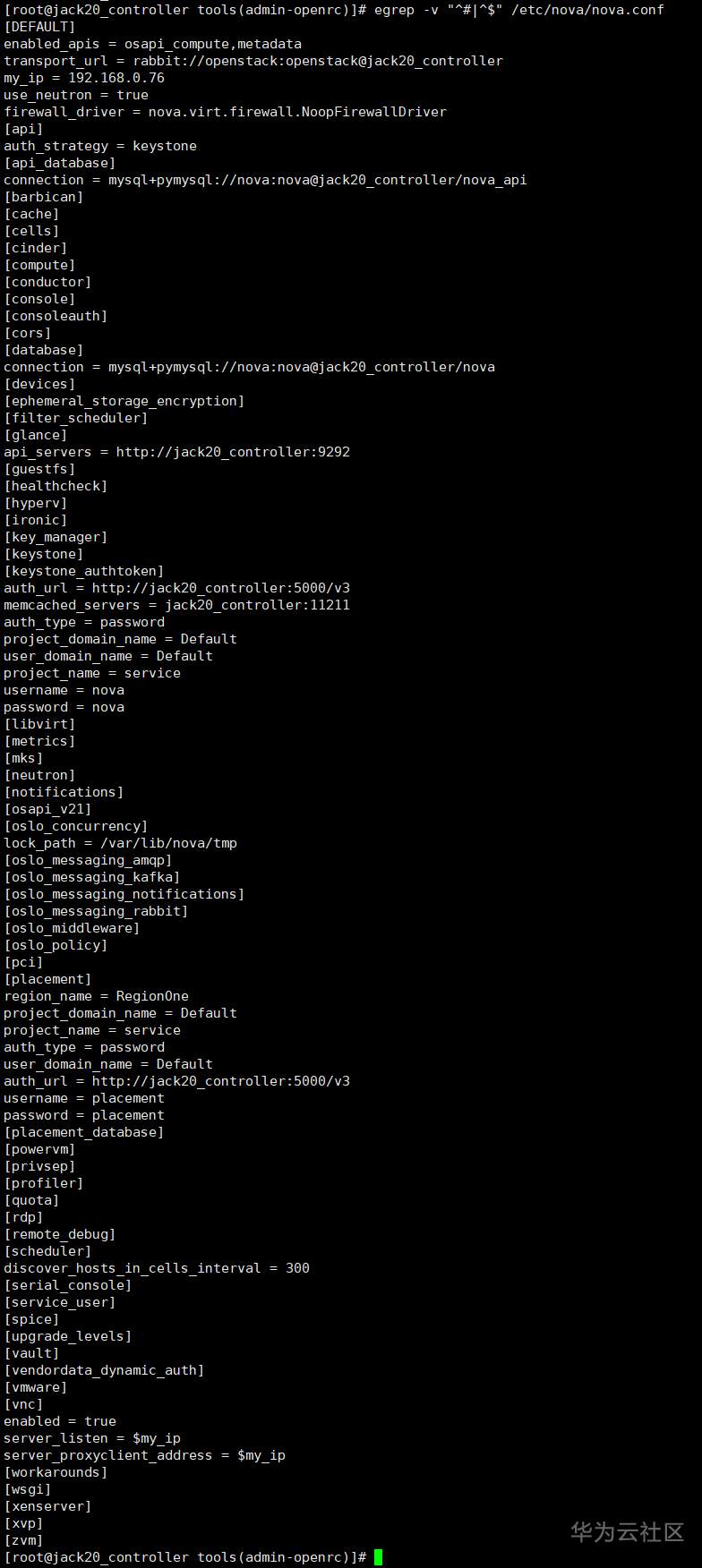

检查生效nova配置

egrep -v "^#|^$" /etc/nova/nova.conf



4.4 同步nova数据(注意同步顺序)

nova_api有33张表, nova_cell0有111张表,nova也有111张表

(1)初始化nova-api

su -s /bin/sh -c "nova-manage api_db sync" nova

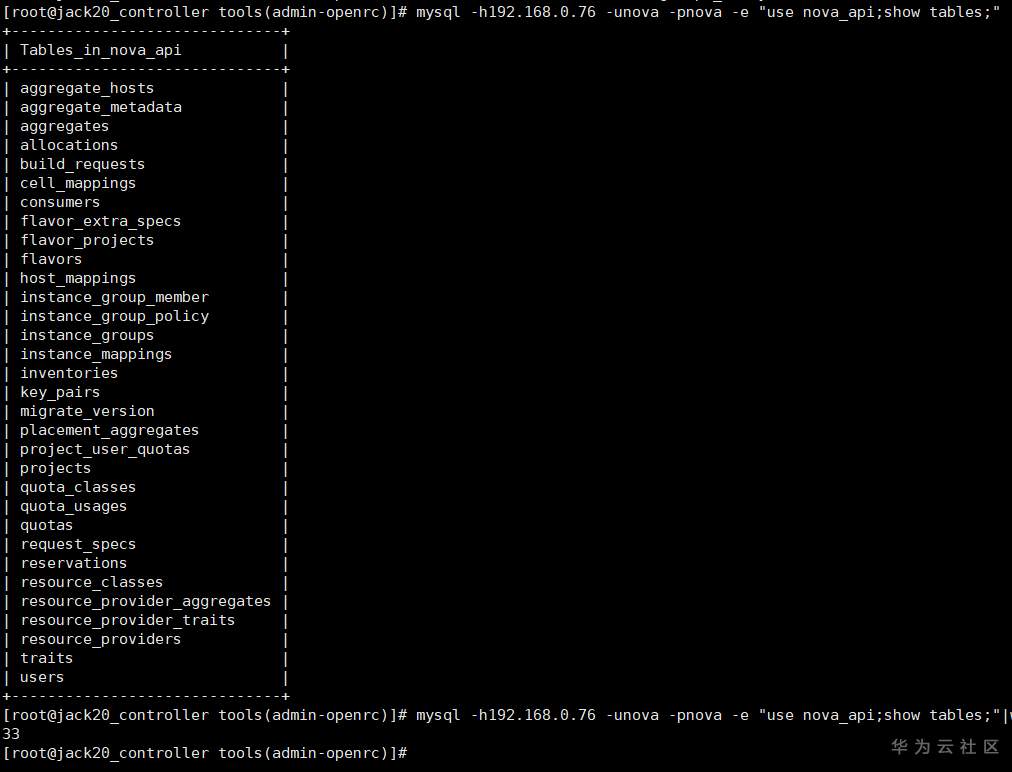

验证数据库

mysql -h192.168.0.76 -unova -pnova -e "use nova_api;show tables;"
mysql -h192.168.0.76 -unova -pnova -e "use nova_api;show tables;"|wc -l


(2)初始化nova_cell0和nova数据库

注册cell0数据库

su -s /bin/sh -c "nova-manage cell_v2 map_cell0" nova

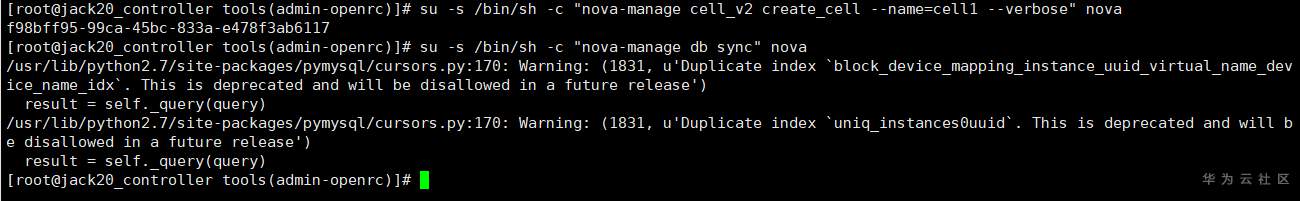

创建cell1单元

su -s /bin/sh -c "nova-manage cell_v2 create_cell --name=cell1 --verbose" nova

初始化nova数据库

su -s /bin/sh -c "nova-manage db sync" nova


检查确认cell0&1注册成功

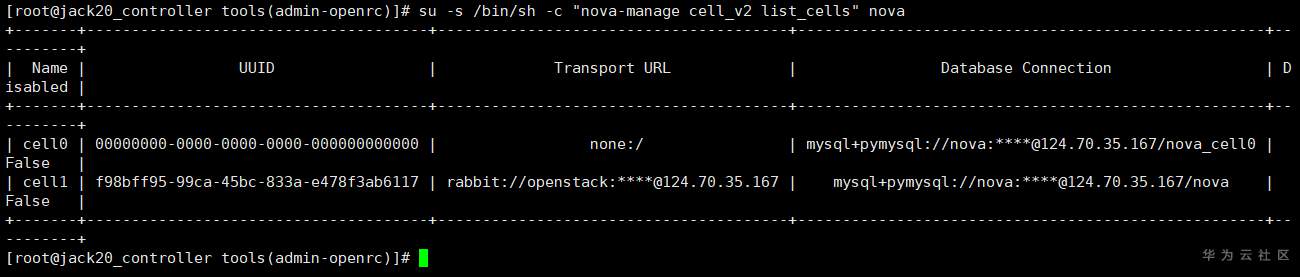

su -s /bin/sh -c "nova-manage cell_v2 list_cells" nova


验证数据库

mysql -h192.168.0.76 -unova -pnova -e "use nova_cell0;show tables;"
mysql -h192.168.0.76 -unova -pnova -e "use nova;show tables;"
mysql -h192.168.0.76 -unova -pnova -e "use nova_cell0;show tables;"|wc -l
mysql -h192.168.0.76 -unova -pnova -e "use nova;show tables;"|wc -l

 通过对比可知(这里一共显示了各111张表,因为太多就不放图片了,大家自己实践对比一下~),这两个数据库的表目前完全一样,都有111张表

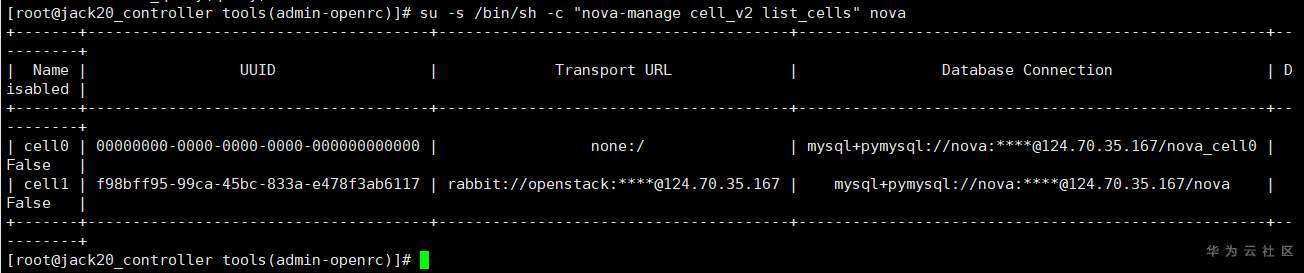

(3)检查确认cell0和cell1注册成功

su -s /bin/sh -c "nova-manage cell_v2 list_cells" nova


返回数据存储在nova_api数据库cell_mappings表中

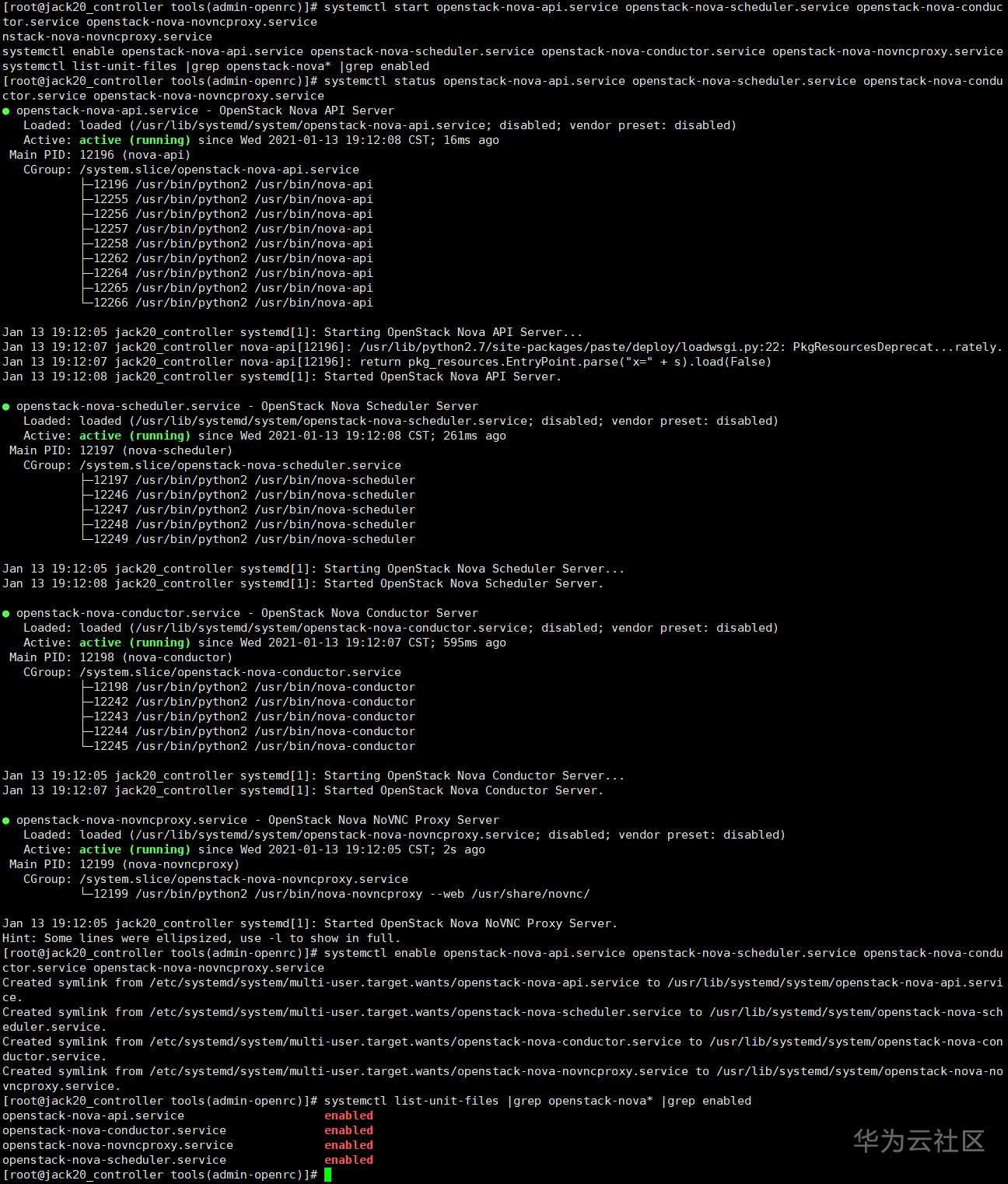

4.5 启动nova服务

systemctl start openstack-nova-api.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.service
systemctl status openstack-nova-api.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.service
systemctl enable openstack-nova-api.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.service
systemctl list-unit-files |grep openstack-nova* |grep enabled


5 安装Nova计算服务(计算节点)

注:确保计算节点已完成包括1.4在内之前所有配置

5.1 安装nova计算节点相关软件包

(1)计算节点安装nova软件包

yum --enablerepo=centos-openstack-stein,epel install openstack-nova-compute python-openstackclient openstack-utils -y --nogpgcheck

(2)快速修改配置文件(/etc/nova/nova.conf)

openstack-config --set  /etc/nova/nova.conf DEFAULT enabled_apis  osapi_compute,metadata
openstack-config --set  /etc/nova/nova.conf DEFAULT transport_url  rabbit://openstack:openstack@jack20_controller
openstack-config --set  /etc/nova/nova.conf api auth_strategy  keystone
openstack-config --set  /etc/nova/nova.conf keystone_authtoken auth_url http://jack20_controller:5000/v3
openstack-config --set  /etc/nova/nova.conf keystone_authtoken memcached_servers jack20_controller:11211
openstack-config --set  /etc/nova/nova.conf keystone_authtoken auth_type password
openstack-config --set  /etc/nova/nova.conf keystone_authtoken project_domain_name Default
openstack-config --set  /etc/nova/nova.conf keystone_authtoken user_domain_name Default
openstack-config --set  /etc/nova/nova.conf keystone_authtoken project_name  service
openstack-config --set  /etc/nova/nova.conf keystone_authtoken username nova
openstack-config --set  /etc/nova/nova.conf keystone_authtoken password nova
openstack-config --set  /etc/nova/nova.conf DEFAULT my_ip 10.0.0.31
openstack-config --set  /etc/nova/nova.conf DEFAULT use_neutron true
openstack-config --set  /etc/nova/nova.conf DEFAULT firewall_driver nova.virt.firewall.NoopFirewallDriver
openstack-config --set  /etc/nova/nova.conf vnc enabled true
openstack-config --set  /etc/nova/nova.conf vnc server_listen 0.0.0.0
openstack-config --set  /etc/nova/nova.conf vnc server_proxyclient_address '$my_ip'
openstack-config --set  /etc/nova/nova.conf vnc novncproxy_base_url  http://jack20_controller:6080/vnc_auto.html
openstack-config --set  /etc/nova/nova.conf glance api_servers http://jack20_controller:9292
openstack-config --set  /etc/nova/nova.conf oslo_concurrency lock_path /var/lib/nova/tmp
openstack-config --set  /etc/nova/nova.conf placement region_name RegionOne
openstack-config --set  /etc/nova/nova.conf placement project_domain_name Default
openstack-config --set  /etc/nova/nova.conf placement project_name service
openstack-config --set  /etc/nova/nova.conf placement auth_type password
openstack-config --set  /etc/nova/nova.conf placement user_domain_name Default
openstack-config --set  /etc/nova/nova.conf placement auth_url http://jack20_controller:5000/v3
openstack-config --set  /etc/nova/nova.conf placement username placement
openstack-config --set  /etc/nova/nova.conf placement password placement

服务器组件监听所有 IP 地址,而代理组件仅仅监听计算节点管理网络接口 IP

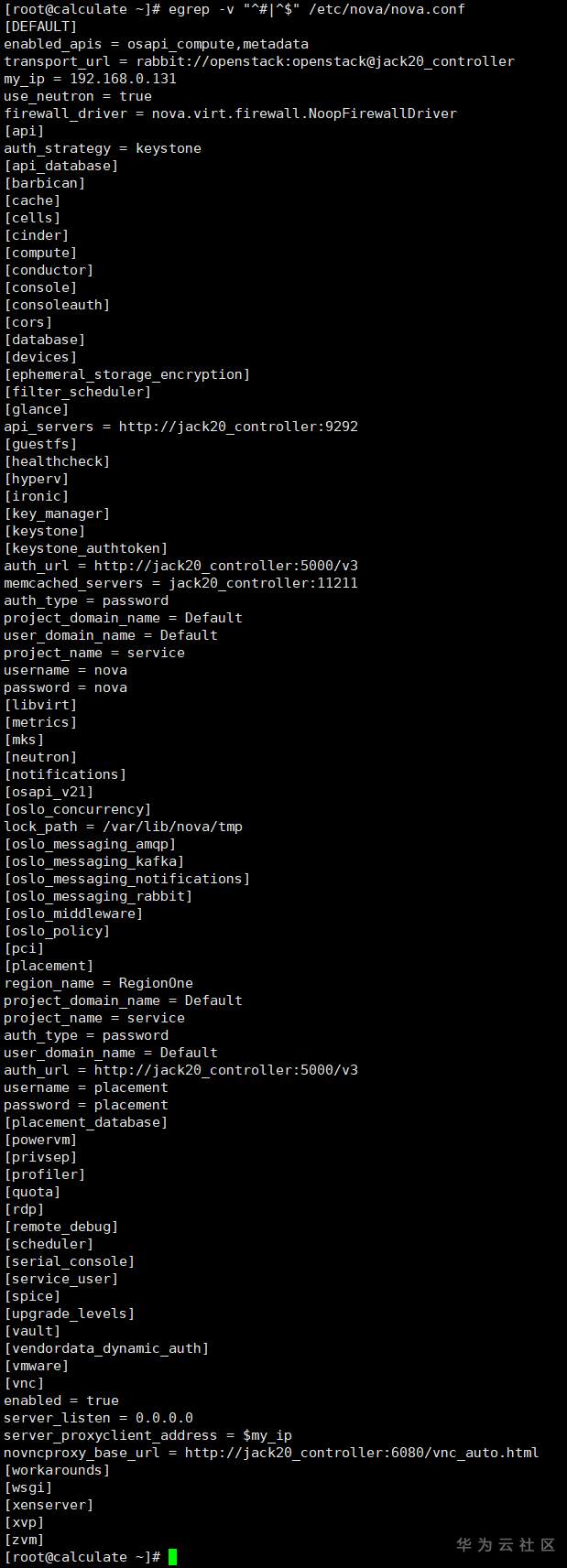

egrep -v "^#|^$" /etc/nova/nova.conf


(3)配置虚拟机的硬件加速

首先确定您的计算节点是否支持虚拟机的硬件加速。(推荐使用qemu,使用kvm有大概率会出现创建虚拟机实例卡在系统引导GRUB界面而无法成功安装系统的情况,即不推荐使用CPU虚拟化)

egrep -c '(vmx|svm)' /proc/cpuinfo

*注:如果返回位0,表示计算节点不支持硬件加速


需要配置libvirt使用QEMU方式管理虚拟机,使用以下命令:

openstack-config --set  /etc/nova/nova.conf libvirt virt_type  qemu
egrep -v "^#|^$" /etc/nova/nova.conf|grep 'virt_type'


*注:如果返回为其他值,表示计算节点支持硬件加速且不需要额外的配置,使用以下命令:

openstack-config --set  /etc/nova/nova.conf libvirt virt_type  kvm
egrep -v "^#|^$" /etc/nova/nova.conf|grep 'virt_type'

(4)启动nova相关服务,并配置为开机自启动

需启动2个服务(nova和jack20_controller节点需要同时运行,才能启动所有服务,之后的实验请同时运行两个节点。)

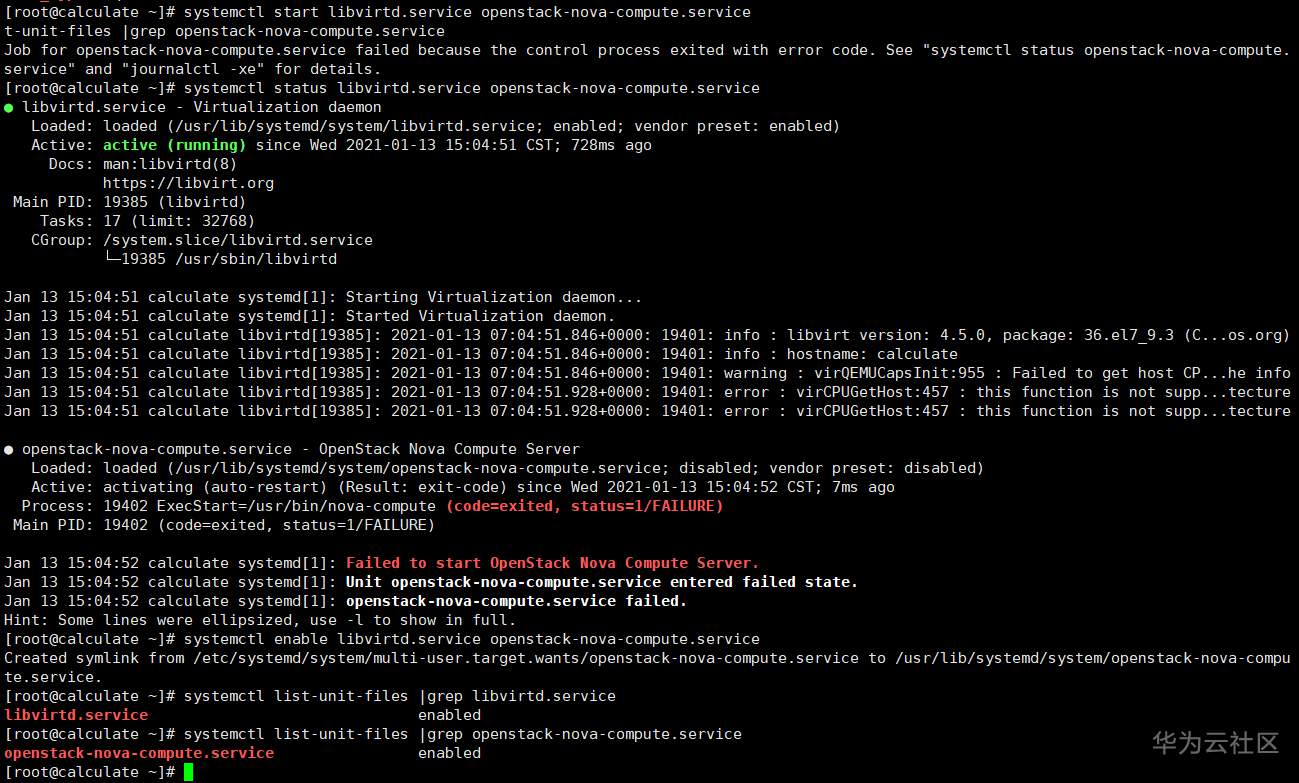

systemctl start libvirtd.service openstack-nova-compute.service
systemctl status libvirtd.service openstack-nova-compute.service
systemctl enable libvirtd.service openstack-nova-compute.service
systemctl list-unit-files |grep libvirtd.service
systemctl list-unit-files |grep openstack-nova-compute.service


(5)将计算节点增加到cell数据库(控制节点)

cd /server/tools
source admin-openrc.sh

 检查确认数据库有新的计算节点

openstack compute service list --service nova-compute

 手动将新的计算节点添加到openstack集群

su -s /bin/sh -c "nova-manage cell_v2 discover_hosts --verbose" nova


6 安装Neutron网络服务(控制节点)

6.1 主机网络配置及测试

(1)主机名解析

确认控制节点和计算节点的hosts文件中都有以下配置

vim /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.0.76 jack20_controller
192.168.0.131 calculate block1 1 2

(2)检测各节点到控制节点和公网的联通性

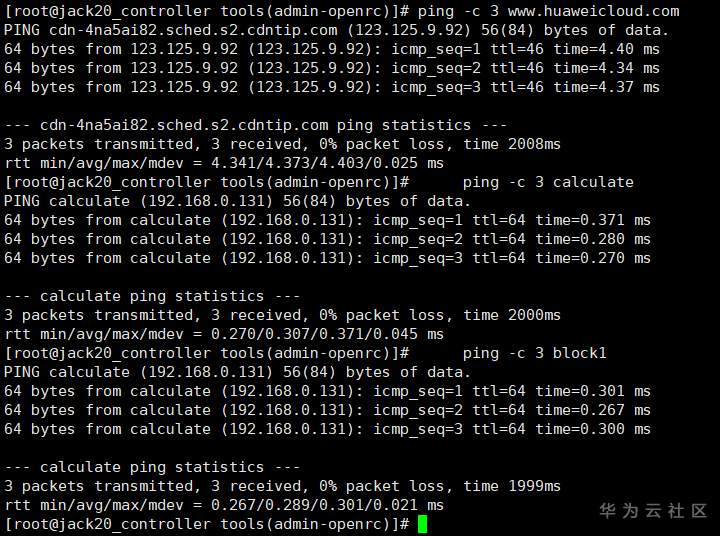

控制节点

ping -c 3 www.huaweicloud.cn
     ping -c 3 calculate
     ping -c 3 block1

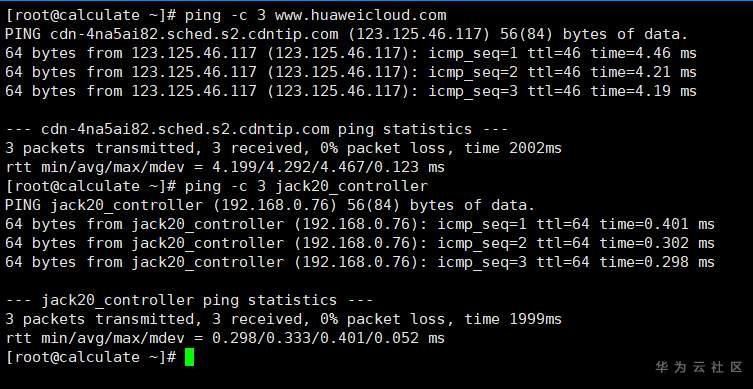

计算节点

ping -c 3 www.huaweicloud.cn
     ping -c 3 jack20_controller


6.2 在keystone数据库中注册neutron相关服务

(1)创建neutron数据库,授予合适的访问权限

mysql -u root -p123456
CREATE DATABASE neutron;
     GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'localhost' IDENTIFIED BY 'neutron';
     GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'%' IDENTIFIED BY 'neutron';
     exit

(2)在keystone上创建neutron用户

cd /server/tools
     cd /server/toolssource admin-openrc.sh
     openstack user create --domain default --password=neutron neutron
     openstack user list

(3)将neutron添加到service项目并授予admin角色

openstack role add --project service --user neutron admin

(4)创建neutron服务实体

openstack service create --name neutron --description "OpenStack Networking" network
     openstack service list

(5)创建neutron网络服务的API端点(endpoint)

openstack endpoint create --region RegionOne network public http://124.70.35.167:9696
openstack endpoint create --region RegionOne network internal http://124.70.35.167:9696
openstack endpoint create --region RegionOne network admin http://124.70.35.167:9696
openstack endpoint list

6.3 在控制节点安装neutron网络组件

关于neutron的网络有两种方式,本文用的是Provider networks

(1)安装neutron软件包

yum --enablerepo=centos-openstack-stein,epel install openstack-neutron openstack-neutron-ml2 openstack-neutron-openvswitch -y --nogpgcheck


(3)快速配置/etc/neutron/plugins/ml2/ml2_conf.ini

openstack-config --set  /etc/neutron/plugins/ml2/ml2_conf.ini ml2 type_drivers flat,vxlan
openstack-config --set  /etc/neutron/plugins/ml2/ml2_conf.ini ml2 tenant_network_types flat,vxlan
openstack-config --set  /etc/neutron/plugins/ml2/ml2_conf.ini ml2 mechanism_drivers  openvswitch,l2population
openstack-config --set  /etc/neutron/plugins/ml2/ml2_conf.ini ml2 extension_drivers  port_security
openstack-config --set  /etc/neutron/plugins/ml2/ml2_conf.ini securitygroup enable_ security_group True
openstack-config --set  /etc/neutron/plugins/ml2/ml2_conf.ini ml2_type_vxlan vni_ranges 1:1000
openstack-config --set  /etc/neutron/plugins/ml2/ml2_conf.ini ml2_type_flat flat_networks provider

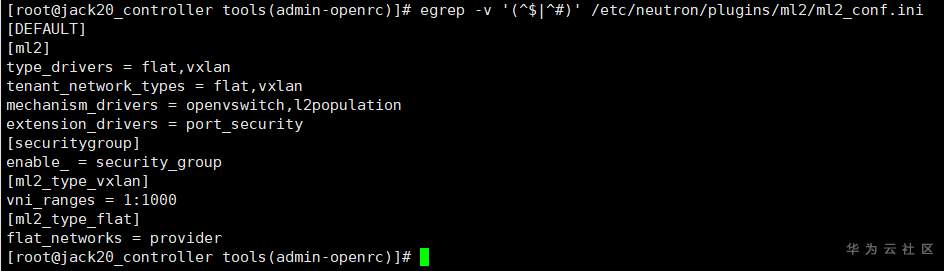

查看生效的配置

egrep -v '(^$|^#)' /etc/neutron/plugins/ml2/ml2_conf.ini


(4)快速配置/etc/neutron/plugins/ml2/openvswitch_agent.ini(第一条命令需要先使用ifconfig命令查看自身IP所在网卡名称对应修改)

openstack-config --set /etc/neutron/plugins/ml2/openvswitch_agent.ini securitygroup  firewall_driver neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver
openstack-config --set /etc/neutron/plugins/ml2/openvswitch_agent.ini securitygroup enable_security_group  true
openstack-config --set /etc/neutron/plugins/ml2/openvswitch_agent.ini agent tunnel_types vxlan
openstack-config --set /etc/neutron/plugins/ml2/openvswitch_agent.ini agent  l2population True
openstack-config --set /etc/neutron/plugins/ml2/openvswitch_agent.ini ovs  tunnel_bridge br-tun
openstack-config --set /etc/neutron/plugins/ml2/openvswitch_agent.ini ovs  integration_bridge br-int
openstack-config --set /etc/neutron/plugins/ml2/openvswitch_agent.ini ovs  bridge_mappings provider:br-provider
  openstack-config --set /etc/neutron/plugins/ml2/openvswitch_agent.ini ovs  local_ip 192.168.0.76

以下参数在启动neutron-linuxbridge-agent.service的时候会自动设置为1

sysctl net.bridge.bridge-nf-call-iptables
sysctl net.bridge.bridge-nf-call-ip6tables

(5)配置layer-3代理

openstack-config --set  /etc/neutron/l3_agent.ini  DEFAULT external_network_bridge br-provider
openstack-config --set  /etc/neutron/l3_agent.ini  DEFAULT interface_driver neutron.agent.linux.interface.OVSInterfaceDriver
openstack-config --set  /etc/neutron/l3_agent.ini DEFAULT  use_namespaces True
openstack-config --set  /etc/neutron/l3_agent.ini DEFAULT  metadata_port 9697

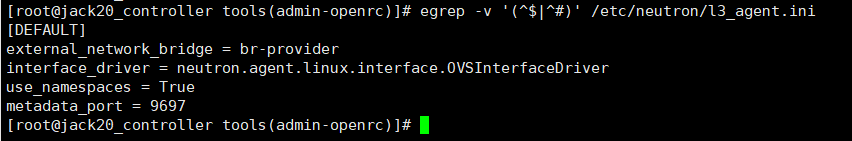

查看生效的配置

egrep -v '(^$|^#)' /etc/neutron/l3_agent.ini

(6)快速配置/etc/neutron/dhcp_agent.ini

openstack-config --set   /etc/neutron/dhcp_agent.ini DEFAULT  interface_driver neutron.agent.linux.interface.OVSInterfaceDriver
openstack-config --set   /etc/neutron/dhcp_agent.ini DEFAULT  dhcp_driver  neutron.agent.linux.dhcp.Dnsmasq
openstack-config --set   /etc/neutron/dhcp_agent.ini DEFAULT  ovs_integration_bridge br-int
 openstack-config --set   /etc/neutron/dhcp_agent.ini DEFAULT  use_namespaces True

查看生效配置

egrep -v '(^$|^#)' /etc/neutron/dhcp_agent.ini

(7)快速配置/etc/neutron/metadata_agent.ini

openstack-config --set /etc/neutron/metadata_agent.ini DEFAULT nova_metadata_host 124.70.35.167
openstack-config --set /etc/neutron/metadata_agent.ini DEFAULT metadata_proxy_shared_secret neutron
openstack-config --set /etc/neutron/metadata_agent.ini DEFAULT memcache_servers 124.70.35.167:11211

 查看生效配置

egrep -v '(^$|^#)' /etc/neutron/metadata_agent.ini



(8)配置计算服务使用网络服务

快速配置/etc/nova/nova.conf,将neutron添加到计算节点中

egrep -v '(^$|^#)' /etc/nova/nova.conf
openstack-config --set /etc/nova/nova.conf neutron url http://124.70.35.167:9696
openstack-config --set /etc/nova/nova.conf neutron auth_url http://124.70.35.167:5000
openstack-config --set /etc/nova/nova.conf neutron auth_type password
openstack-config --set /etc/nova/nova.conf neutron project_domain_name default
openstack-config --set /etc/nova/nova.conf neutron user_domain_name default
openstack-config --set /etc/nova/nova.conf neutron region_name RegionOne
openstack-config --set /etc/nova/nova.conf neutron project_name service
openstack-config --set /etc/nova/nova.conf neutron username neutron
openstack-config --set /etc/nova/nova.conf neutron password neutron
openstack-config --set /etc/nova/nova.conf neutron service_metadata_proxy true
openstack-config --set /etc/nova/nova.conf neutron metadata_proxy_shared_secret neutron
openstack-config --set /etc/nova/nova.conf DEFAULT use_neutron True
openstack-config --set /etc/nova/nova.conf DEFAULT linuxnet_interface_driver nova.network.linux_net.LinuxOVSInterfaceDriver
openstack-config --set /etc/nova/nova.conf DEFAULT firewall_driver nova.virt.firewall.NoopFirewallDriver
openstack-config --set /etc/nova/nova.conf DEFAULT vif_plugging_is_fatal True
openstack-config --set /etc/nova/nova.conf DEFAULT vif_plugging_timeout 300


(9)初始化安装网络插件

创建网络插件的链接,初始化网络的脚本插件会用到/etc/neutron/plugin.ini,需使用ML2的插件进行提供

ln -s /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini

(10)同步数据库

su -s /bin/sh -c "neutron-db-manage --config-file /etc/neutron/neutron.conf --config-file /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head" neutron

(11)重启nova_api服务

systemctl restart openstack-nova-api.service

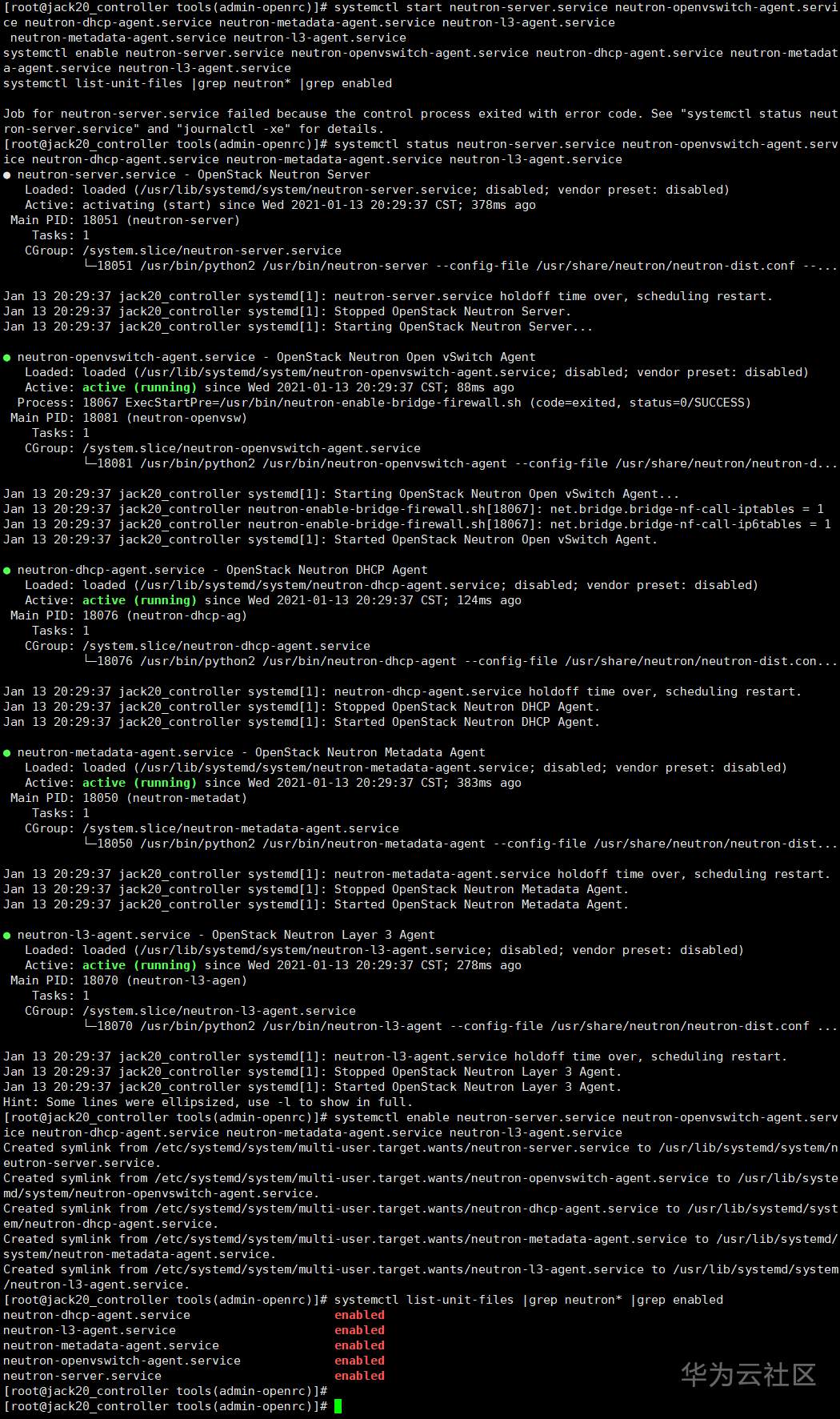

(12)启动neutron服务并设置开机启动

systemctl start neutron-server.service neutron-openvswitch-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service neutron-l3-agent.service
systemctl status neutron-server.service neutron-openvswitch-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service neutron-l3-agent.service
systemctl enable neutron-server.service neutron-openvswitch-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service neutron-l3-agent.service
systemctl list-unit-files |grep neutron* |grep enabled


至此,控制端的neutron网络服务就安装完成,之后需要在计算节点安装网络服务组件,使计算节点可以连接到openstack集群

6.4 在计算节点安装neutron网络组件

(1)安装neutron组件

yum --enablerepo=centos-openstack-stein,epel install openstack-neutron openstack-neutron-ml2 openstack-neutron-openvswitch -y --nogpgcheck

(2)快速配置/etc/neutron/neutron.conf

openstack-config --set /etc/neutron/neutron.conf DEFAULT transport_url  rabbit://openstack:openstack@124.70.35.167
openstack-config --set /etc/neutron/neutron.conf DEFAULT auth_strategy keystone
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken www_authenticate_uri  http://124.70.35.167:5000
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken auth_url http://124.70.35.167:5000
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken memcached_servers 124.70.35.167:11211
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken auth_type password
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken project_domain_name default
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken user_domain_name default
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken project_name service
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken username neutron
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken password neutron
openstack-config --set /etc/neutron/neutron.conf oslo_concurrency lock_path /var/lib/neutron/tmp
openstack-config --set  /etc/neutron/neutron.conf DEFAULT core_plugin  ml2
openstack-config --set  /etc/neutron/neutron.conf DEFAULT service_plugins router
openstack-config --set  /etc/neutron/neutron.conf DEFAULT state_path /var/lib/neutron

(3)快速配置/etc/neutron/plugins/ml2/openvswitch_agent.ini(第一条命令需要先使用ifconfig命令查看自身IP所在网卡名称对应修改)

openstack-config --set   /etc/neutron/plugins/ml2/openvswitch_agent.ini securitygroup  neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver
openstack-config --set   /etc/neutron/plugins/ml2/openvswitch_agent.ini securitygroup enable_security_group true
openstack-config --set   /etc/neutron/plugins/ml2/openvswitch_agent.ini ovs  local_ip  192.168.0.131
openstack-config --set   /etc/neutron/plugins/ml2/openvswitch_agent.ini ovs  tunnel_bridge br-tun
openstack-config --set /etc/neutron/plugins/ml2/openvswitch_agent.ini agent tunnel_types vxlan
openstack-config --set /etc/neutron/plugins/ml2/openvswitch_agent.ini agent  l2population True

注:第一个选项physical_interface_mappings选项要配置计算节点自身的网卡名称provider:ens33

(5)重启计算节点

systemctl restart openstack-nova-compute.service
systemctl status openstack-nova-compute.service

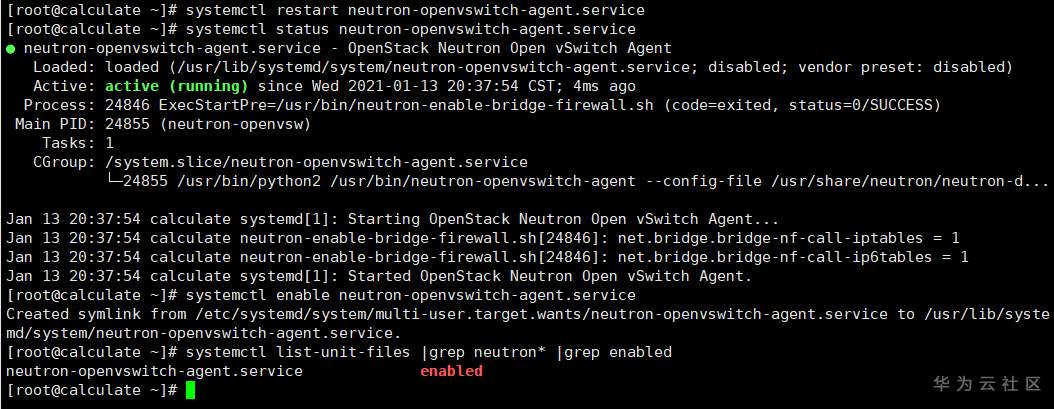

(6)启动neutron网络组件,并配置开机自启动

需启动1个服务,网桥代理

systemctl restart neutron-openvswitch-agent.service
systemctl status neutron-openvswitch-agent.service
systemctl enable neutron-openvswitch-agent.service
systemctl list-unit-files |grep neutron* |grep enabled


至此,计算节点的网络配置完成,转回到控制节点进行验证操作


>>点我查看利用鲲鹏服务器搭建OpenStack平台实践(下)<<

将继续给大家带来:

7 安装Horizon服务组件(控制节点)

8 安装Cinder存储服务组件(控制节点)

9 部署VPC以测试OpenStack

【版权声明】本文为华为云社区用户原创内容,转载时必须标注文章的来源(华为云社区)、文章链接、文章作者等基本信息, 否则作者和本社区有权追究责任。如果您发现本社区中有涉嫌抄袭的内容,欢迎发送邮件进行举报,并提供相关证据,一经查实,本社区将立刻删除涉嫌侵权内容,举报邮箱: cloudbbs@huaweicloud.com
  • 点赞
  • 收藏
  • 关注作者

评论(0

0/1000
抱歉,系统识别当前为高风险访问,暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称,即可参与社区互动!

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。
